High-voltage three-phase hybrid inverter

The Deye three-phase hybrid inverter series is designed for robust performance and efficient energy management in residential and commercial environments. With a focus on high efficiency, seamless integration, and advanced protection features, these inverters offer a versatile solution for modern energy needs. Description: Weight: 80 kg Dimensions: 53 x 90 x 30 mm (excluding connectors and mounts) Connection: RS232, RS485, WiFi Maximum DC charging current: 50A+50A Parallel function: Yes Grid injection: Yes Power: 30 kW Maximum PV power: 39000W PV Max VOC: 1000 VDC MPPT Voltage: 150-850 VDC Board: Hybrid, Three-phase Battery voltage: 160-800 V Accepted accumulators: Lithium, Models SUN-29.9K-SG01HP3-EU-BM3 SUN-30K-SG01HP3-EU-BM3 SUN-35K-SG01HP3-EU-BM3 SUN-40K-SG01HP3-EU-BM4 SUN-50K-SG01HP3-EU-BM4 Key Features High Charge/Discharge Current: Supports a maximum charge and discharge current of 100A, ensuring flexibility in managing energy storage needs. Energy Storage Compatibility: Capable of storing energy from diesel generators, making it suitable for regions with unstable power supply. Parallel Operation: Supports up to 10 units in parallel for both on-grid and off-grid scenarios, providing scalable energy solutions for larger installations. Multiple Battery Compatibility: Supports multiple batteries in parallel, accommodating higher energy storage demands. AC Coupling: Perfect for retrofitting existing solar systems, allowing seamless integration without major overhauls. Configurable Time Periods: Up to 6 time periods can be set for battery charging and discharging, enabling efficient energy use tailored to specific needs. High Efficiency: Utilizes high-voltage batteries, ensuring higher operational efficiency and more effective energy storage. 100% Unbalanced Output: Each phase supports 100% unbalanced output, increasing flexibility and reliability of power delivery. Electrical Characteristics The inverters are designed to handle a range of electrical inputs and outputs, suitable for various applications: AC Input/Output Rated Active Power: SUN-29.9K: 29.9 kW SUN-30K: 30 kW SUN-35K: 35 kW SUN-40K: 40 kW SUN-50K: 50 kW Battery Inputs: Type: Lithium-ion Voltage Range: 160-800V Maximum Charge/Discharge Current: 100A (split into two 50A each) Number of Battery Inputs: 2 PV String Input Data: Max. PV Input Power: SUN-29.9K: 38870W SUN-30K: 39000W SUN-35K: 45500W SUN-40K: 52000W SUN-50K: 65000W Max. PV Input Voltage: 1000V Start-up Voltage: 180V MPPT Voltage Range: 150-850V Number of MPP Trackers: 3 or 4, depending on model Operational Features Deye inverters boast high efficiency ratings and advanced protection features: Efficiency Ratings: Max. Efficiency: 97.6% Euro Efficiency: 97% MPPT Efficiency: >99% Comprehensive Protection: Integrated DC reverse polarity connection protection AC output overcurrent/overvoltage/short circuit protection Ground fault current monitoring Surge protection (Type II for DC and AC) Islanding protection and thermal protection Environmental and Safety Compliance Operating Temperature Range: -40 to +60°C (with derating above 45°C) Ingress Protection Rating: IP65 Noise Level: ≤65dB Permissible Altitude: Up to 2000 meters Cooling Mechanism: Smart air cooling Physical Characteristics Dimensions: 527 x 894 x 294 mm (excluding connectors and mounts) Weight: 80 kg Communication and Monitoring Monitoring Modes: GPRS, WIFI, Bluetooth, 4G, LAN (optional) Communication Interfaces: RS485, RS232, CAN Compliance and Warranty Grid Regulation: Complies with IEC 61727, IEC 62116, IEC 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105. Safety Standards: Complies with IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1/2. Warranty: Standard 5 years, extendable to 10 years depending on installation site. Click on the icons to download the following files: Data Sheet

Read more less

Puissance, flexibilité et maîtrise intelligente de l’énergie La série WECO TH 10–50 kW est une gamme d’onduleurs hybrides triphasés conçue pour les installations photovoltaïques exigeantes, résidentielles de grande puissance et commerciales. Disponible en plusieurs puissances de 10 à 50 kW, elle associe la production solaire, le stockage par batteries et l’alimentation du réseau pour optimiser l’utilisation de l’énergie et renforcer l’autonomie énergétique. Grâce à son architecture hybride, la série TH permet de gérer intelligemment les flux d’énergie entre les panneaux photovoltaïques, les batteries, le réseau électrique et les charges de l’installation. Elle se distingue par sa puissance de gestion, sa réponse rapide aux besoins de charge et de décharge des batteries ainsi que son rendement élevé. Compatible avec les batteries WECO LFP dans la plage de tension spécifiée, cet onduleur constitue une solution adaptée aux systèmes énergétiques nécessitant une gestion performante du stockage, une alimentation de secours et une grande flexibilité d’installation. Caractéristiques principales Gamme de puissances : 10, 15, 20, 30, 40 et 50 kW Onduleur hybride triphasé pour installations photovoltaïques de forte puissance Puissance maximale du champ photovoltaïque : jusqu’à 100 kW selon le modèle 4 trackers MPPT indépendants pour optimiser la production solaire Rendement maximal de conversion : 98,5 % Rendement MPPT : 99,9 % Batteries WECO LFP compatibles Plage de tension batterie : 135 à 1 000 V Courant maximal de charge/décharge : jusqu’à 160 A sur une sortie dédiée, selon la configuration Sortie de secours (Backup) intégrée Temps de commutation de secours : ≤ 10 ms Indice de protection IP65, adapté aux environnements extérieurs appropriés Surveillance des performances et de la consommation via l’application mobile WECO Garantie de 10 ans, selon les conditions du fabricant Une solution hybride pour optimiser l’énergie solaire La série WECO TH permet de gérer la production photovoltaïque, le stockage de l’énergie et l’alimentation des équipements au sein d’un même système. L’énergie produite par les panneaux solaires peut être utilisée directement par les charges, stockée dans les batteries compatibles ou injectée sur le réseau selon la configuration de l’installation et les paramètres de fonctionnement. Lorsque la production solaire diminue, l’énergie stockée dans les batteries peut être mobilisée pour répondre aux besoins énergétiques. Cette gestion contribue à améliorer l’autoconsommation, à limiter le recours à l’électricité du réseau et à mieux valoriser la production photovoltaïque. Avec une gamme de puissances allant de 25 à 60 kW, la série TH répond aux besoins d’installations de différentes tailles, notamment les grandes installations résidentielles, les bâtiments professionnels et les applications commerciales. Performances photovoltaïques et rendement élevé L’onduleurdisposede4trackersMPPTindépendants,permettantd’optimiserlaproductionsolaireetdegérerplusieurschaînesphotovoltaïques.SaplagedefonctionnementMPPTde140à850Vetsatensiond’entréemaximalede1000Voffrentunegrandeflexibilitéd’installation. Selonlemodèle,lapuissancemaximaleduchampphotovoltaïqueatteint100kW.AvecunrendementMPPTde99,9%etunrendementmaximalde98,5%,lasérieWECOTHassureuneconversionefficacedel’énergiesolaireetuneintégrationperformantedustockageparbatteries. Stockage haute tension et gestion des batteries La série WECO TH est conçue pour fonctionner avec des batteries WECO LFP compatibles, selon les spécifications du fabricant et la configuration retenue. Sa plage de tension batterie de 135 à 1 000 V permet l'intégration de solutions de stockage haute tension. Le courant maximal de charge et de décharge peut atteindre 160 A sur une sortie dédiée, ou 80 A par sortie selon la configuration du système. Cette capacité de gestion du stockage permet d'adapter le fonctionnement de l'installation aux besoins énergétiques et aux objectifs d'autoconsommation. L'énergie solaire excédentaire peut être stockée pendant les périodes de forte production puis utilisée lorsque la production photovoltaïque devient insuffisante. Cette gestion améliore la flexibilité énergétique et permet de mieux exploiter l'énergie disponible. La compatibilité effective des batteries, les limites de courant et les configurations autorisées doivent être vérifiées dans la documentation technique WECO avant l'installation. Sortie de secours et continuité de l’alimentation La série TH dispose d'une sortie Backup destinée à alimenter les charges compatibles en cas d'interruption du réseau, lorsque l'installation est configurée à cet effet. Son temps de commutation annoncé, inférieur ou égal à 10 ms, favorise une transition rapide vers l'alimentation de secours. La puissance de sortie de secours dépend du modèle et des conditions de fonctionnement. La gamme propose également une capacité de puissance apparente temporaire supérieure à la puissance active nominale, selon le modèle et la durée spécifiée par le fabricant. Cette fonction est particulièrement intéressante pour les bâtiments professionnels, les installations commerciales et les grandes habitations nécessitant une alimentation de secours pour certains équipements essentiels. Le dimensionnement des charges de secours, la capacité des batteries et la configuration électrique doivent respecter les limites indiquées dans le manuel d'installation. Une conception adaptée aux installations extérieures Grâce à son indice de protection IP65, l'onduleur WECO TH est conçu pour résister à la pénétration de poussières et aux projections d'eau dans les conditions prévues par le fabricant. Cette protection facilite son intégration dans des installations techniques intérieures ou extérieures appropriées, sous réserve du respect des exigences de ventilation, de dégagement et de protection contre les conditions environnementales. Sa conception compacte et légère, selon la configuration du modèle, contribue à simplifier l'installation et à optimiser l'utilisation de l'espace disponible. Pour préserver la fiabilité et la durée de vie de l'équipement, il est recommandé de respecter les consignes du fabricant concernant l'emplacement, la température ambiante, la ventilation et les conditions de raccordement. Surveillance intelligente et gestion à distance La série WECO TH est compatible avec l'application mobile WECO, qui permet de suivre les performances de l'installation et les flux énergétiques. Cette connectivité facilite la consultation des données de fonctionnement et le suivi de la production solaire, de la consommation et de l'utilisation du stockage, selon les fonctionnalités disponibles dans la configuration installée. La surveillance à distance apporte une meilleure visibilité sur le fonctionnement du système et facilite la gestion quotidienne de l'énergie. Elle permet ainsi d'accompagner les utilisateurs dans l'optimisation de leur installation photovoltaïque et dans le suivi de leurs performances énergétiques. Une gamme évolutive pour les besoins résidentiels et commerciaux Avec ses différentes puissances nominales de 10 à 50 kW, la série WECO TH offre une flexibilité de dimensionnement adaptée à des besoins énergétiques variés. Elle peut être intégrée dans des installations photovoltaïques avec stockage, en tenant compte de la puissance du champ solaire, des besoins des charges, de la capacité des batteries et des caractéristiques du raccordement au réseau. Cette diversité de modèles permet de sélectionner une puissance adaptée au projet, sans surdimensionner inutilement l'installation. L'association de la production solaire, du stockage haute tension et de la sortie de secours en fait une solution pertinente pour les projets visant une meilleure maîtrise de la consommation électrique et une utilisation plus efficace de l'énergie renouvelable. Spécifications techniques Spécification Série WECO TH Type d'équipement Onduleur hybride triphasé Puissances nominales disponibles 10 / 15 / 20 / 30 / 40 / 50 kW Puissance PV maximale 50 à 100 kW selon le modèle Tension d'entrée PV maximale 1 000 V Plage de fonctionnement MPPT 140–850 V Nombre de trackers MPPT 4 Entrées par tracker MPPT 2 chaînes Courant d'entrée maximal par MPPT 36 A Courant de court-circuit maximal par MPPT 55 A Technologie de batterie compatible WECO LFP Plage de tension batterie 135–1 000 V Courant maximal de charge/décharge Jusqu'à 160 A sur une sortie dédiée, selon la configuration Tension nominale AC 220/380 V, 230/400 V ou 240/415 V Fréquence du réseau 50/60 Hz Facteur de puissance 1, réglable de -0,8 à +0,8 Distorsion harmonique du courant (THDi) < 2 % à puissance nominale Sortie de secours Backup intégrée Temps de commutation Backup ≤ 10 ms Rendement MPPT 99,9 % Rendement maximal 98,5 % Rendement européen 98 % Indice de protection IP65 Surveillance Application mobile WECO Garantie 10 ans, selon les conditions du fabricant Protection et fiabilité La série WECO TH associe une architecture hybride performante à des fonctions de gestion destinées à assurer un fonctionnement fiable dans les installations photovoltaïques avec stockage. Ses caractéristiques électriques, ses quatre trackers MPPT et sa gestion des batteries permettent d'adapter le fonctionnement du système aux conditions de production solaire et aux besoins énergétiques de l'installation. L'indice de protection IP65 contribue à protéger l'équipement contre la poussière et les projections d'eau. La sortie Backup et son temps de commutation annoncé inférieur ou égal à 10 ms apportent une fonction supplémentaire pour les installations nécessitant une alimentation de secours. Pour garantir une installation sûre et durable, le choix du modèle, le dimensionnement des batteries, le raccordement au réseau et la sélection des charges de secours doivent respecter les spécifications du fabricant. Une solution complète pour une gestion énergétique performante L'onduleur hybride triphasé WECO TH 25–60 kW constitue une solution destinée aux installations photovoltaïques nécessitant puissance, flexibilité et stockage d'énergie. Avec ses sept niveaux de puissance disponibles, sa capacité photovoltaïque pouvant atteindre 100 kW selon le modèle, ses quatre trackers MPPT, sa compatibilité avec les batteries WECO LFP et son rendement maximal de 98,5 %, il permet de concevoir des systèmes énergétiques adaptés aux besoins résidentiels de grande puissance et commerciaux. Sa sortie Backup, sa protection IP65, sa surveillance via l'application mobile WECO et sa garantie annoncée de 10 ans complètent ses caractéristiques pour une gestion énergétique moderne et évolutive. Modèles disponibles : TH 10 kW, TH 15 kW, TH 20 kW, TH 30 kW, TH MAX-40 kW et TH MAX-50 kW  Les performances et les capacités de l'onduleur dépendent du modèle, du dimensionnement photovoltaïque, de la batterie utilisée, des conditions environnementales et de la configuration de l'installation. Les valeurs de puissance, de courant et de fonctionnement doivent être vérifiées dans la fiche technique officielle correspondant au modèle sélectionné. Consultez la documentation technique WECO, le manuel d'installation et les conditions de garantie avant l'achat et l'installation. DOCUMENTATION ET TÉLÉCHARGEMENTS Ressources techniques pour ce produit PDF ↗ Fiche technique

Read more less

Deye's series of three-phase hybrid inverters are designed for robust performance and efficient energy management in both residential and commercial environments. With a focus on high efficiency, seamless integration, and advanced protection features, these inverters offer a versatile solution for modern energy needs. Description: Weight: 80 kg Dimensions: 53 x 90 x 30 mm (excluding connectors and brackets) Connection: RS232, RS485, WiFi Maximum DC charging current: 50A+50A Parallel function: Yes Grid injection: Yes Power: 50 kW Maximum PV power: 65000 W PV Max VOC: 1000 VDC MPPT Voltage: 150-850 VDC Type: Hybrid, Three-phase Battery voltage: 160-800 V Accepted batteries: Lithium, Models SUN-29.9K-SG01HP3-EU-BM3 SUN-30K-SG01HP3-EU-BM3 SUN-35K-SG01HP3-EU-BM3 SUN-40K-SG01HP3-EU-BM4 SUN-50K-SG01HP3-EU-BM4 Key Features High Charge/Discharge Current: Supports a maximum charge and discharge current of 100A, ensuring flexibility in managing energy storage needs. Energy Storage Compatibility: Capable of storing energy from diesel generators, making it suitable for regions with unstable power supply. Parallel Operation: Supports up to 10 units in parallel for both on-grid and off-grid scenarios, providing scalable energy solutions for larger installations. Multi-Battery Compatibility: Supports multiple batteries in parallel, catering to higher energy storage demands. AC Coupling: Perfect for retrofitting existing solar systems, allowing seamless integration without significant overhauls. Configurable Time Periods: Up to 6 time periods can be set for battery charging and discharging, enabling efficient energy usage tailored to specific needs. High Efficiency: Utilizes high-voltage batteries, ensuring greater operational efficiency and more effective energy storage. 100% Unbalanced Output: Each phase supports 100% unbalanced output, enhancing power flexibility and reliability. Electrical Characteristics The inverters are designed to handle a range of electrical inputs and outputs, suitable for various applications: AC Input/Output Rated Active Power: SUN-29.9K: 29.9 kW SUN-30K: 30 kW SUN-35K: 35 kW SUN-40K: 40 kW SUN-50K: 50 kW Battery Inputs: Type: Lithium-ion Voltage Range: 160-800V Maximum Charge/Discharge Current: 100A (split into two 50A each) Number of Battery Inputs: 2 PV String Input Data: Maximum PV Input Power: SUN-29.9K: 38,870 W SUN-30K: 39,000 W SUN-35K: 45,500 W SUN-40K: 52,000 W SUN-50K: 65,000 W Maximum PV Input Voltage: 1000V Start-up Voltage: 180V MPPT Voltage Range: 150-850V Number of MPP Trackers: 3 or 4, depending on model Operational Features Deye inverters offer high efficiency ratings and advanced protection functionalities: Efficiency Ratings: Max. Efficiency: 97.6% Euro Efficiency: 97% MPPT Efficiency: >99% Comprehensive Protection: Integrated DC reverse polarity connection protection AC output overcurrent/overvoltage/short-circuit protection Ground fault current monitoring Surge protection (Type II for DC and AC) Islanding protection and thermal protection Environmental and Safety Compliance Operating Temperature Range: -40 to +60°C (with derating above 45°C) Ingress Protection Rating: IP65 Noise Level: ≤65dB Allowed Altitude: Up to 2000 meters Cooling Mechanism: Smart air cooling Physical Characteristics Dimensions: 527 x 894 x 294 mm (excluding connectors and brackets) Weight: 80 kg Communication and Monitoring Monitoring Modes: GPRS, WIFI, Bluetooth, 4G, LAN (optional) Communication Interfaces: RS485, RS232, CAN Compliance and Warranty Grid Regulation: Compliant with IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105. Safety Standards: Compliant with IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1/2. Warranty: Standard 5 years, extendable to 10 years depending on the installation site. Click on the icons to download the following files: Datasheet

Read more less

Deye's series of three-phase hybrid inverters are designed for robust performance and efficient energy management in both residential and commercial environments. With a focus on high efficiency, seamless integration, and advanced protection features, these inverters offer a versatile solution for modern energy needs. Description: Weight: 80 kg Dimensions: 53 x 90 x 30 mm (excluding connectors and brackets) Connection: RS232, RS485, WiFi Maximum DC charging current: 50A+50A Parallel function: Yes Grid injection: Yes Power: 50 kW Maximum PV power: 65000 W PV Max VOC: 1000 VDC MPPT Voltage: 150-850 VDC Type: Hybrid, Three-phase Battery voltage: 160-800 V Accepted batteries: Lithium, Models SUN-29.9K-SG01HP3-EU-BM3 SUN-30K-SG01HP3-EU-BM3 SUN-35K-SG01HP3-EU-BM3 SUN-40K-SG01HP3-EU-BM4 SUN-50K-SG01HP3-EU-BM4 Key Features High Charge/Discharge Current: Supports a maximum charge and discharge current of 100A, ensuring flexibility in managing energy storage needs. Energy Storage Compatibility: Capable of storing energy from diesel generators, making it suitable for regions with unstable power supply. Parallel Operation: Supports up to 10 units in parallel for both on-grid and off-grid scenarios, providing scalable energy solutions for larger installations. Multi-Battery Compatibility: Supports multiple batteries in parallel, catering to higher energy storage demands. AC Coupling: Perfect for retrofitting existing solar systems, allowing seamless integration without significant overhauls. Configurable Time Periods: Up to 6 time periods can be set for battery charging and discharging, enabling efficient energy usage tailored to specific needs. High Efficiency: Utilizes high-voltage batteries, ensuring greater operational efficiency and more effective energy storage. 100% Unbalanced Output: Each phase supports 100% unbalanced output, enhancing power flexibility and reliability. Electrical Characteristics The inverters are designed to handle a range of electrical inputs and outputs, suitable for various applications: AC Input/Output Rated Active Power: SUN-29.9K: 29.9 kW SUN-30K: 30 kW SUN-35K: 35 kW SUN-40K: 40 kW SUN-50K: 50 kW Battery Inputs: Type: Lithium-ion Voltage Range: 160-800V Maximum Charge/Discharge Current: 100A (split into two 50A each) Number of Battery Inputs: 2 PV String Input Data: Maximum PV Input Power: SUN-29.9K: 38,870 W SUN-30K: 39,000 W SUN-35K: 45,500 W SUN-40K: 52,000 W SUN-50K: 65,000 W Maximum PV Input Voltage: 1000V Start-up Voltage: 180V MPPT Voltage Range: 150-850V Number of MPP Trackers: 3 or 4, depending on model Operational Features Deye inverters offer high efficiency ratings and advanced protection functionalities: Efficiency Ratings: Max. Efficiency: 97.6% Euro Efficiency: 97% MPPT Efficiency: >99% Comprehensive Protection: Integrated DC reverse polarity connection protection AC output overcurrent/overvoltage/short-circuit protection Ground fault current monitoring Surge protection (Type II for DC and AC) Islanding protection and thermal protection Environmental and Safety Compliance Operating Temperature Range: -40 to +60°C (with derating above 45°C) Ingress Protection Rating: IP65 Noise Level: ≤65dB Allowed Altitude: Up to 2000 meters Cooling Mechanism: Smart air cooling Physical Characteristics Dimensions: 527 x 894 x 294 mm (excluding connectors and brackets) Weight: 80 kg Communication and Monitoring Monitoring Modes: GPRS, WIFI, Bluetooth, 4G, LAN (optional) Communication Interfaces: RS485, RS232, CAN Compliance and Warranty Grid Regulation: Compliant with IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105. Safety Standards: Compliant with IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1/2. Warranty: Standard 5 years, extendable to 10 years depending on the installation site. Click on the icons to download the following files: Datasheet

Read more less

Deye's series of three-phase hybrid inverters are designed for robust performance and efficient energy management in both residential and commercial environments. With a focus on high efficiency, seamless integration, and advanced protection features, these inverters offer a versatile solution for modern energy needs. Description: Weight: 80 kg Dimensions: 53 x 90 x 30 mm (excluding connectors and brackets) Connection: RS232, RS485, WiFi Maximum DC charging current: 50A+50A Parallel function: Yes Grid injection: Yes Power: 50 kW Maximum PV power: 65000 W PV Max VOC: 1000 VDC MPPT Voltage: 150-850 VDC Type: Hybrid, Three-phase Battery voltage: 160-800 V Accepted batteries: Lithium, Models SUN-29.9K-SG01HP3-EU-BM3 SUN-30K-SG01HP3-EU-BM3 SUN-35K-SG01HP3-EU-BM3 SUN-40K-SG01HP3-EU-BM4 SUN-50K-SG01HP3-EU-BM4 Key Features High Charge/Discharge Current: Supports a maximum charge and discharge current of 100A, ensuring flexibility in managing energy storage needs. Energy Storage Compatibility: Capable of storing energy from diesel generators, making it suitable for regions with unstable power supply. Parallel Operation: Supports up to 10 units in parallel for both on-grid and off-grid scenarios, providing scalable energy solutions for larger installations. Multi-Battery Compatibility: Supports multiple batteries in parallel, catering to higher energy storage demands. AC Coupling: Perfect for retrofitting existing solar systems, allowing seamless integration without significant overhauls. Configurable Time Periods: Up to 6 time periods can be set for battery charging and discharging, enabling efficient energy usage tailored to specific needs. High Efficiency: Utilizes high-voltage batteries, ensuring greater operational efficiency and more effective energy storage. 100% Unbalanced Output: Each phase supports 100% unbalanced output, enhancing power flexibility and reliability. Electrical Characteristics The inverters are designed to handle a range of electrical inputs and outputs, suitable for various applications: AC Input/Output Rated Active Power: SUN-29.9K: 29.9 kW SUN-30K: 30 kW SUN-35K: 35 kW SUN-40K: 40 kW SUN-50K: 50 kW Battery Inputs: Type: Lithium-ion Voltage Range: 160-800V Maximum Charge/Discharge Current: 100A (split into two 50A each) Number of Battery Inputs: 2 PV String Input Data: Maximum PV Input Power: SUN-29.9K: 38,870 W SUN-30K: 39,000 W SUN-35K: 45,500 W SUN-40K: 52,000 W SUN-50K: 65,000 W Maximum PV Input Voltage: 1000V Start-up Voltage: 180V MPPT Voltage Range: 150-850V Number of MPP Trackers: 3 or 4, depending on model Operational Features Deye inverters offer high efficiency ratings and advanced protection functionalities: Efficiency Ratings: Max. Efficiency: 97.6% Euro Efficiency: 97% MPPT Efficiency: >99% Comprehensive Protection: Integrated DC reverse polarity connection protection AC output overcurrent/overvoltage/short-circuit protection Ground fault current monitoring Surge protection (Type II for DC and AC) Islanding protection and thermal protection Environmental and Safety Compliance Operating Temperature Range: -40 to +60°C (with derating above 45°C) Ingress Protection Rating: IP65 Noise Level: ≤65dB Allowed Altitude: Up to 2000 meters Cooling Mechanism: Smart air cooling Physical Characteristics Dimensions: 527 x 894 x 294 mm (excluding connectors and brackets) Weight: 80 kg Communication and Monitoring Monitoring Modes: GPRS, WIFI, Bluetooth, 4G, LAN (optional) Communication Interfaces: RS485, RS232, CAN Compliance and Warranty Grid Regulation: Compliant with IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105. Safety Standards: Compliant with IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1/2. Warranty: Standard 5 years, extendable to 10 years depending on the installation site. Click on the icons to download the following files: Datasheet

Read more less

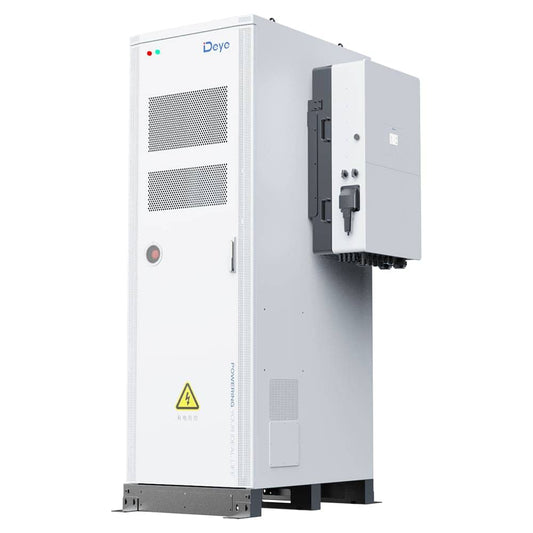

The GE-F60 is an ideal high-voltage storage battery solution for home or commercial backup power needs, off-grid sites, frequency regulation, or renewable energy integration. It is compatible with photovoltaic solar, wind, diesel generator, and grid power systems. ✅ Key Features: High storage capacity up to 230 kWh in a small footprint Rated output power: 100 kW with 88% cycle efficiency Smart temperature control: batteries remain below 38 °C during operation Enhanced safety: automatic aerosol shutdown, multiple alarms, and ventilation Reliable LFP technology: over 6000 cycles and 10-year warranty Modular and scalable design: addition of MPPTs, charging modules, or generators Technical Specifications Cell Chemistry: LiFePO4 for stability and durability. Module Energy: 5.12 kWh per module. System Energy: 61.44 kWh total, with 55.29 kWh usable energy. Charge/Discharge Current: Flexible options with 50 A recommended, 100 A nominal, and a 125 A peak discharge for 2 minutes at 25°C. Operating Conditions: Charging temperature range of 0 to 55°C and discharge of -20 to 55°C. Humidity and Altitude Tolerance: Designed to operate between 5% and 85% RH and at altitudes up to 2000m. Enclosure Rating: IP55, ensuring protection against dust and low-pressure water jets. Dimensions and Weight: 780 x 1056 x 2235 mm and approximately 1.2 T. Installation: Floor-mounted for ease and convenience. Cycle Life: More than 6000 cycles at 25°C ± 2°C with a 0.5 C charge/discharge rate, maintaining at least 70% of original capacity. Warranty: 10-year product warranty, guaranteeing long-term reliability and customer satisfaction. Certifications: CE, IEC62619, IEC62040, UN38.3, meeting international safety and quality standards. Ideal Applications The Deye GE-F60 series is versatile and can be used in a variety of settings, including: Residential energy storage Commercial and industrial energy management Emergency backup power Off-grid power solutions Renewable energy integration Click on the icons to download the following files: Datasheet

Read more less

Dual MPPT charge controller 26A / 20A MPPT input voltage from PV: 200 to 850 Vdc (startup at 180 Vdc) AC output power: 15000 W Operates in on-grid and off-grid mode Manufacturer reference: SUN-15K-SG04LP3-EU Compatible with lithium batteries: DEYE: BOS-A 7.68 kWh - High Voltage Series Pylontech: HM5A180F - High Voltage Series. WECO : 16K0 HV - High Voltage Series. Integrated galvanic isolation – no TYPE B cabinet required Key features: Weight: 80 kg Dimensions: 53 x 90 x 30 mm (excluding connectors and brackets) Connection: RS232, RS485, WiFi Maximum DC charging current: 37A Parallel function: Yes Grid injection: Yes Power: 15 kW Maximum PV power: 19500 W PV Max VOC: 1000 VDC MPPT Voltage: 150-850 VDC Type: Hybrid, Three-phase Battery voltage: 160-700 V Accepted accumulators: Lithium, High charge/discharge efficiency: High charge/discharge efficiency: Deye SUN series inverters offer a maximum charge/discharge current of 50A, allowing for fast and efficient energy storage and retrieval. This feature helps users get the most out of their solar power systems by effectively managing energy storage. Diesel generator support: Another remarkable capability is the support for energy storage from diesel generators. This feature provides a versatile backup power option, ensuring that surplus energy generated from diesel can be efficiently saved and managed. Parallel operation: The inverters support parallel operations, allowing the connection of up to 10 units. This scalability is crucial for expanding power systems in both grid-tied and off-grid applications, meeting increasing energy demand. Optimal battery compatibility: Designed for high-voltage lithium-ion batteries, Deye SUN inverters support a voltage range of 160-700V. This wide compatibility range ensures higher efficiency and allows the system to adapt to different battery specifications. AC coupling for modernization applications: Designed with flexibility in mind, these inverters can be AC-coupled to modernize existing solar systems. This capability offers a seamless upgrade path for systems looking to enhance their solar energy installations with hybrid inverter technology. Advanced energy management: The inverter series features the ability to set up to 6 different periods for battery charging and discharging. This advanced feature allows for optimal energy utilization based on specific demands and energy availability, providing savings and increased efficiency. Technical highlights Battery Input: Type: Lithium-ion Voltage Range: 160-700V Max. Charge/Discharge Current: 50A PV String Input: Max. PV Input Power: Up to 32,500W Max. PV Input Voltage: 1000V MPPT Voltage Range: 150-850V AC Input/Output: Rated Power: 5000W to 25000W Apparent Power: Up to 27,500 VA Voltage Range: 220/380V, 230/400V Frequency Range: 50/60 Hz Efficiency: Max. Efficiency: 97.6% European Efficiency: 97.0% MPPT Efficiency: >99% Protection Features: Includes integrated protections such as DC reverse polarity connection, AC overcurrent, AC overvoltage, short circuits, thermal protection, etc. Environmental and Safety Standards: Temperature Range: -40 to +60°C Ingress Protection Rating: IP65 Altitude: 0-2000m Compliance: Complies with IEC/EN standards, including 61000-6-1/2/3/4 and 62109-1/2. Monitoring and Communication: Optional Monitoring: GPRS, WIFI, Bluetooth, 4G, LAN Interfaces: RS485, RS232, CAN GENERAL Data: Dimensions: 408x638x237mm (excluding connectors and brackets) Weight: 30.5kg Cooling: Natural cooling/smart air cooling Warranty: 5 years as standard, 10 years optional depending on installation site Deye SUN-(5-25)K-SG01HP3-EU three-phase hybrid inverters are a robust, efficient, and versatile solution designed to meet the evolving demands of modern solar power systems. The combination of advanced features, high efficiency, and scalability makes them an exceptional choice for maximizing solar energy utilization and enhancing overall system performance. Click on the icons to download the following files: Data Sheet

Read more less

The Deye SUN-(5-25)K-SG01HP3-EU hybrid inverter series is meticulously designed to deliver superior performance for modern solar power systems. It addresses a wide spectrum of energy needs with models ranging from 5 kW to 25 kW, making it suitable for both residential and commercial applications. This series of inverters is engineered to meet the dynamic requirements of power systems, ensuring reliability, flexibility, and efficiency in energy management. Key Features: Weight: 80 kg Dimensions: 53 x 90 x 30 mm (excluding connectors and brackets) Connection: RS232, RS485, WiFi Maximum DC charging current: 37A Parallel function: Yes Grid injection: Yes Power: 20 kW Maximum PV power: 26000 W Max PV VOC: 1000 VDC MPPT voltage: 150-850 VDC Type: Hybrid, Three-phase Battery voltage: 160-700 V Accepted accumulators: Lithium, High Charge/Discharge Efficiency: The Deye SUN series inverters offer a maximum charge/discharge current of 50A, enabling rapid and efficient energy storage and retrieval. This feature helps users get the most out of their solar energy systems by effectively managing energy storage. Diesel Generator Support: Another remarkable capability is the support for storing energy from diesel generators. This feature provides a versatile backup power option, ensuring that excess energy generated from diesel can be efficiently saved and managed. Parallel Operation: The inverters support parallel operations, allowing the connection of up to 10 units. This scalability is crucial for expanding power systems in both grid-tied and off-grid applications, meeting increasing energy demands. Optimal Battery Compatibility: Designed for high-voltage lithium-ion batteries, Deye SUN inverters support a voltage range of 160-700V. This broad compatibility range ensures higher efficiency and allows the system to adapt to various battery specifications. AC Coupling for Retrofit Applications: Designed with flexibility in mind, these inverters can be AC-coupled for retrofitting existing solar systems. This capability provides a seamless upgrade path for systems looking to enhance their solar power installations with hybrid inverter technology. Advanced Energy Management: The inverter series features the ability to set up to 6 different periods for battery charging and discharging. This advanced feature allows for optimal energy use based on specific demands and power availability, providing cost savings and increased efficiency. Technical Highlights Battery Input: Type: Lithium-ion Voltage Range: 160-700V Max. Charge/Discharge Current: 50A PV String Input: Max. PV Input Power: Up to 32,500W Max. PV Input Voltage: 1000V MPPT Voltage Range: 150-850V AC Input/Output: Rated Power: 5000W to 25000W Apparent Power: Up to 27,500 VA Voltage Range: 220/380V, 230/400V Frequency Range: 50/60 Hz Efficiency: Max. Efficiency: 97.6% European Efficiency: 97.0% MPPT Efficiency: >99% Protection Features: Includes built-in protections such as DC reverse polarity connection, AC overcurrent, AC overvoltage, short circuits, thermal protection, etc. Environmental and Safety Standards: Temperature Range: -40 to +60°C Ingress Protection Rating: IP65 Altitude: 0-2000m Compliance: Complies with IEC/EN standards, including 61000-6-1/2/3/4 and 62109-1/2. Monitoring and Communication: Optional Monitoring: GPRS, WIFI, Bluetooth, 4G, LAN Interfaces: RS485, RS232, CAN General Data: Dimensions: 408x638x237mm (excluding connectors and brackets) Weight: 30.5kg Cooling: Natural cooling/smart air cooling Warranty: 5 years standard, 10 years optional depending on installation site The Deye SUN-(5-25)K-SG01HP3-EU three-phase hybrid inverters are a robust, efficient, and versatile solution designed to meet the evolving demands of modern solar power systems. The combination of advanced features, high efficiency, and scalability makes them an exceptional choice for maximizing solar energy utilization and enhancing overall system performance. Click on the icons to download the following files: Datasheet

Read more less

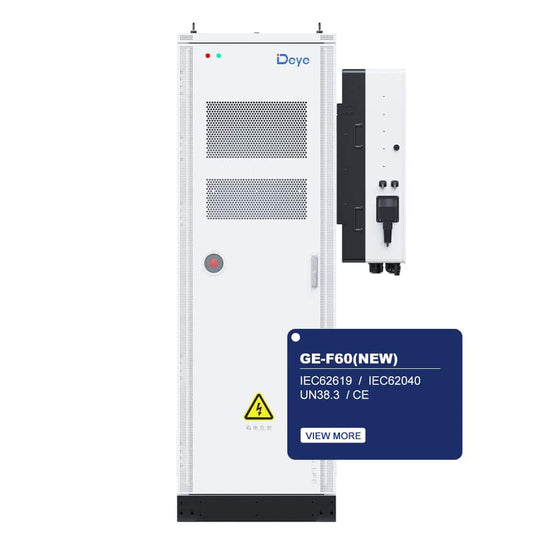

The GE-F60 is an ideal high-voltage battery storage solution for home or commercial backup power, off-grid sites, frequency regulation, or renewable energy integration. It is compatible with solar photovoltaic, wind power, diesel generator, and electrical grid systems. ✅ Key Features: Large storage capacity of up to 230 kWh in a compact footprint Rated output power: 100kW with an 88% round-trip efficiency Intelligent temperature control: batteries stay under 38 °C during operation Enhanced safety: automatic aerosol fire suppression, multiple alarms, and ventilation Reliable LFP technology: over 6000 cycles and a 10-year warranty Modular and scalable design: add MPPTs, charging modules, or generators Technical specifications Cell chemistry: LiFePO4 for stability and durability. Module energy: 5.12 kWh per module. System energy: 61.44 kWh total, with 55.29 kWh usable energy. Charge/discharge current: Flexible options with 50 A recommended, 100 A nominal, and a peak discharge of 125 A for 2 minutes at 25°C. Operating conditions: Temperature range of 0 to 55°C for charging and -20 to 55°C for discharging. Humidity and altitude tolerance: Designed to operate between 5% and 85% RH and at altitudes up to 2000 m. Enclosure rating: IP55, providing protection against dust and low-pressure water jets. Dimensions and weight: 780 x 1056 x 2235 mm and approximately 1.2 T. Installation: Floor-mounted for ease and convenience. Cycle life: Over 6000 cycles at 25°C ± 2°C with a 0.5 C charge/discharge rate, maintaining at least 70% of original capacity. Warranty: 10-year product warranty, ensuring long-term reliability and customer satisfaction. Certifications: CE, IEC62619, IEC62040, UN38.3, meeting international safety and quality standards. Ideal applications The Deye GE-F60 series is versatile and can be used in a variety of settings, including: Residential energy storage Commercial and industrial energy management Emergency backup power Off-grid power solutions Renewable energy integration Click on the icons to download the following files: Data sheet

Read more less

Deye's series of three-phase hybrid inverters are designed for robust performance and efficient energy management in both residential and commercial environments. With a focus on high efficiency, seamless integration, and advanced protection features, these inverters offer a versatile solution for modern energy needs. Description: Weight: 80 kg Dimensions: 53 x 90 x 30 mm (excluding connectors and brackets) Connection: RS232, RS485, WiFi Maximum DC charging current: 50A+50A Parallel function: Yes Grid injection: Yes Power: 50 kW Maximum PV power: 65000 W PV Max VOC: 1000 VDC MPPT Voltage: 150-850 VDC Type: Hybrid, Three-phase Battery voltage: 160-800 V Accepted batteries: Lithium, Models SUN-29.9K-SG01HP3-EU-BM3 SUN-30K-SG01HP3-EU-BM3 SUN-35K-SG01HP3-EU-BM3 SUN-40K-SG01HP3-EU-BM4 SUN-50K-SG01HP3-EU-BM4 Key Features High Charge/Discharge Current: Supports a maximum charge and discharge current of 100A, ensuring flexibility in managing energy storage needs. Energy Storage Compatibility: Capable of storing energy from diesel generators, making it suitable for regions with unstable power supply. Parallel Operation: Supports up to 10 units in parallel for both on-grid and off-grid scenarios, providing scalable energy solutions for larger installations. Multi-Battery Compatibility: Supports multiple batteries in parallel, catering to higher energy storage demands. AC Coupling: Perfect for retrofitting existing solar systems, allowing seamless integration without significant overhauls. Configurable Time Periods: Up to 6 time periods can be set for battery charging and discharging, enabling efficient energy usage tailored to specific needs. High Efficiency: Utilizes high-voltage batteries, ensuring greater operational efficiency and more effective energy storage. 100% Unbalanced Output: Each phase supports 100% unbalanced output, enhancing power flexibility and reliability. Electrical Characteristics The inverters are designed to handle a range of electrical inputs and outputs, suitable for various applications: AC Input/Output Rated Active Power: SUN-29.9K: 29.9 kW SUN-30K: 30 kW SUN-35K: 35 kW SUN-40K: 40 kW SUN-50K: 50 kW Battery Inputs: Type: Lithium-ion Voltage Range: 160-800V Maximum Charge/Discharge Current: 100A (split into two 50A each) Number of Battery Inputs: 2 PV String Input Data: Maximum PV Input Power: SUN-29.9K: 38,870 W SUN-30K: 39,000 W SUN-35K: 45,500 W SUN-40K: 52,000 W SUN-50K: 65,000 W Maximum PV Input Voltage: 1000V Start-up Voltage: 180V MPPT Voltage Range: 150-850V Number of MPP Trackers: 3 or 4, depending on model Operational Features Deye inverters offer high efficiency ratings and advanced protection functionalities: Efficiency Ratings: Max. Efficiency: 97.6% Euro Efficiency: 97% MPPT Efficiency: >99% Comprehensive Protection: Integrated DC reverse polarity connection protection AC output overcurrent/overvoltage/short-circuit protection Ground fault current monitoring Surge protection (Type II for DC and AC) Islanding protection and thermal protection Environmental and Safety Compliance Operating Temperature Range: -40 to +60°C (with derating above 45°C) Ingress Protection Rating: IP65 Noise Level: ≤65dB Allowed Altitude: Up to 2000 meters Cooling Mechanism: Smart air cooling Physical Characteristics Dimensions: 527 x 894 x 294 mm (excluding connectors and brackets) Weight: 80 kg Communication and Monitoring Monitoring Modes: GPRS, WIFI, Bluetooth, 4G, LAN (optional) Communication Interfaces: RS485, RS232, CAN Compliance and Warranty Grid Regulation: Compliant with IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105. Safety Standards: Compliant with IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1/2. Warranty: Standard 5 years, extendable to 10 years depending on the installation site. Click on the icons to download the following files: Datasheet

Read more less
