Solar Batteries

BOS-G60H: The High-Capacity Powerhouse The BOS-G60H exemplifies superior engineering, offering a robust energy storage solution with a system energy capacity of 61.44 kWh. Utilizing advanced LiFePO4 cell chemistry, it ensures safety, longevity, and high performance. With a nominal module voltage of 51.2V and a nominal system voltage of 614.4V, it is designed for applications demanding high energy density and efficiency. Key Features: Module Capacity: 100Ah System Operating Voltage: 480V ~ 700.8V Usable Energy: 55.29 kWh Charge/Discharge Current: Up to 125A (peak) Cycle Life: ≥6000 cycles at 70% EOL Warranty: 10 years BOS-G60L: The Versatile Performer The BOS-G60L shares the same innovative DNA as its counterpart but is tailored for systems requiring a lower nominal voltage. With a nominal system voltage of 307.2V and a module energy of 5.12kWh, it provides flexibility and adaptability for a wide range of energy storage applications. Key Features: Module Capacity: 100Ah System Operating Voltage: 240V ~ 350.4V Usable Energy: 55.29 kWh Charge/Discharge Current: Up to 125A (peak) Cycle Life: ≥6000 cycles at 70% EOL Warranty: 10 years Common Features Across the Series Cell Chemistry: Advanced LiFePO4 for safety and durability. Operating Temperature: Charge: 0°C to 55°C / Discharge: -20°C to 55°C. Communication Port: CAN2.0 / RS485 for seamless integration. IP Rating: IP20, ensuring protection in its operational environment. Installation: Rack mounted, with 19-inch standard rack compatibility. Certifications: UL1973, UL9540A, UN38.3, meeting the highest safety and reliability standards. Engineered for Excellence Both the BOS-G60H and BOS-G60L are equipped with cutting-edge features such as a North American standard high-voltage battery cluster control box, providing operating voltages ranging from 120V to 750Vdc. Their robust design includes an IP20 protection rating and an operating temperature range that ensures reliability across diverse environmental conditions. The BOS-G60 series represents Deye’s commitment to innovation and excellence in the energy storage domain. Whether you are looking to enhance your home’s energy efficiency, power your business operations, or scale up industrial energy storage, the BOS-G60H and BOS-G60L offer the flexibility, reliability, and performance you need. Embrace the future of energy with Deye’s BOS-G60 series – where power meets innovation. SKU: BOS-GH/L The BOS-G60H exemplifies superior engineering, offering a robust energy storage solution with a system energy capacity of 61.44 kWh. Utilizing advanced LiFePO4 cell chemistry, it ensures safety, longevity, and high performance. With a nominal module voltage of 51.2V and a nominal system voltage of 614.4V, it is designed for applications demanding high energy density and efficiency. Click on the icons to download the following files: Datasheet User Manual Warranty

Read more less

SKU: BOS-A BOS-A is a practical, safe and environmentally friendly LiFePO4 battery module with intelligent BMS, wide temperature range and flexible configuration options for efficient backup power and renewable energy storage. Designed to provide efficient, safe and flexible energy storage for a wide range of applications. Our module offers a superior combination of performance, reliability and environmental friendliness, making it the ideal choice for your energy storage needs. Key Features and Benefits: Convenient Installation : The module's quick installation and standard integrated design make it easy to set up and maintain, saving you time and effort. Safe and Reliable : Built with LiFePO4 cathode material, our module features excellent safety performance and long cycle life. With minimal self-discharge and no memory effect, it can be stored for up to 6 months without charging and provides outstanding performance in shallow charge and discharge cycles. Intelligent BMS : Built-in Battery Management System (BMS) provides complete protection against over-discharge, over-charge, over-current and extreme temperatures. It automatically manages charge and discharge states while balancing each cell's current and voltage. Eco-Friendly : Our non-toxic, non-polluting and environmentally friendly module is designed with sustainability in mind. Flexible Configuration : Increase capacity and power by connecting multiple battery modules in parallel. The module supports USB, WiFi (optional) and remote upgrades, making it compatible with Deye inverters. Wide Temperature Range : With an operating temperature range of -20°C to 55°C, our module provides excellent discharge performance and excellent lifespan in various environments. Features: Cellular chemistry: LiFePO4 Module energy: 7.68 kWh Nominal module voltage: 38.4 V Module capacity: 200 Ah Module dimensions (W/D/H): 576 x 601 x 135 mm Module weight: approx. 65 kg Deye’s LiFePO4 battery module is a testament to our commitment to providing high-quality, reliable and durable energy storage solutions. With its intelligent design, flexible configuration options and wide operating temperature range, this module is suitable for a variety of applications. Trust Deye to meet your energy storage needs with our cutting-edge technology and unwavering commitment to excellence. Click on the icons to download the following files: Compatibility Statement

Read more less

The GE-F60 is an ideal high-voltage battery storage solution for home or commercial backup power, off-grid sites, frequency regulation, or renewable energy integration. It is compatible with solar photovoltaic, wind power, diesel generator, and electrical grid systems. ✅ Key Features: Large storage capacity of up to 230 kWh in a compact footprint Rated output power: 100kW with an 88% round-trip efficiency Intelligent temperature control: batteries stay under 38 °C during operation Enhanced safety: automatic aerosol fire suppression, multiple alarms, and ventilation Reliable LFP technology: over 6000 cycles and a 10-year warranty Modular and scalable design: add MPPTs, charging modules, or generators Technical specifications Cell chemistry: LiFePO4 for stability and durability. Module energy: 5.12 kWh per module. System energy: 61.44 kWh total, with 55.29 kWh usable energy. Charge/discharge current: Flexible options with 50 A recommended, 100 A nominal, and a peak discharge of 125 A for 2 minutes at 25°C. Operating conditions: Temperature range of 0 to 55°C for charging and -20 to 55°C for discharging. Humidity and altitude tolerance: Designed to operate between 5% and 85% RH and at altitudes up to 2000 m. Enclosure rating: IP55, providing protection against dust and low-pressure water jets. Dimensions and weight: 780 x 1056 x 2235 mm and approximately 1.2 T. Installation: Floor-mounted for ease and convenience. Cycle life: Over 6000 cycles at 25°C ± 2°C with a 0.5 C charge/discharge rate, maintaining at least 70% of original capacity. Warranty: 10-year product warranty, ensuring long-term reliability and customer satisfaction. Certifications: CE, IEC62619, IEC62040, UN38.3, meeting international safety and quality standards. Ideal applications The Deye GE-F60 series is versatile and can be used in a variety of settings, including: Residential energy storage Commercial and industrial energy management Emergency backup power Off-grid power solutions Renewable energy integration Click on the icons to download the following files: Data sheet

Read more less

SKU: RW-M6.1-B The Deye RW-M 6.1-B LFP wall-mounted battery is the perfect solution for those looking for a reliable, flexible and environmentally friendly energy storage system with advanced features for optimum performance and safety. Technical specifications: Battery Chemistry: LiFePO4 Capacity: 120 Ah Energy: 6.14 kWh Rated DC power: Peak (2 minutes, 25℃) 150 kW Dimensions (L/H/D): 510 millimeters 740 millimeters 145 mm (without base) Weight: Approx. 58kg Operating temperature: Charge: 0~55℃ / Discharge: -20℃~55℃ Storage temperature: 0℃~35℃ Humidity: 5%～95% Altitude: ≤ 2000 m Warranty period: 10 years Energy flow: 20 MWh at 70% end of life Certifications: UN38.3, IEC62619, CE, IEC 0-21, VDE2510-50 The Deye RW-M 6.1-B is an advanced lithium iron phosphate (LFP) battery designed to provide reliable, safe and high-efficiency energy storage solutions for residential and commercial applications. With its advanced battery management system (BMS) and modular design, this battery ensures long cycle life, high power density and complete protection for your energy storage needs. Main features: Safety and longevity: Cobalt-free LFP chemistry ensures safer operation. Intelligent BMS provides comprehensive protection and extends service life. Supporting high discharge power ensures reliability. High efficiency: High power density for efficient energy storage. Operating voltage range from 43.2 V to 57.6 V. Usable energy capacity of 5.53 kWh with a nominal voltage of 51.2V. Flexible and scalable: The modular design allows for easy expansion, supporting up to 32 units in parallel. Maximum capacity of 196 kWh. Suitable for various applications with limited installation space and limited load. Practical and smart: Self-networking battery modules for effortless maintenance. Remote monitoring and firmware upgrades via USB stick. CAN 2.0 and RS485 communication ports for seamless integration. Respectful of nature: Made from non-toxic and pollution-free materials. Designed to be environmentally friendly. Multi-purpose installation: Supports wall and floor mounting configurations. Saves installation space with flat design. Robust construction: IP65 rating for a rugged enclosure. Works efficiently in a wide temperature range (-20℃ to 55℃). Lifespan of ≥ 6000 cycles at 25℃. Accessories included: Battery Hanging Board (RW-M6.1-B-Hboard): For wall mounting. Hybrid inverter cable (RW-M6.1-B-PCable1500): Length 1500 mm, waterproof terminals. Battery Parallel Cable (RW-M6.1-B-BCable300): Length 300mm, waterproof terminals. Fixed Brackets (RW-M6.1-B-Fixed Bracket): To secure the battery when mounted on the floor. Click on the icons to download the following files: Technical sheet User Guide Guarantee Compatibility Statement Safety data sheets

Read more less

SKU: RW-M6.1-B The Deye RW-M 6.1-B LFP wall-mounted battery is the perfect solution for those looking for a reliable, flexible and environmentally friendly energy storage system with advanced features for optimum performance and safety. Technical specifications: Battery Chemistry: LiFePO4 Capacity: 120 Ah Energy: 6.14 kWh Rated DC power: Peak (2 minutes, 25℃) 150 kW Dimensions (L/H/D): 510 millimeters 740 millimeters 145 mm (without base) Weight: Approx. 58kg Operating temperature: Charge: 0~55℃ / Discharge: -20℃~55℃ Storage temperature: 0℃~35℃ Humidity: 5%～95% Altitude: ≤ 2000 m Warranty period: 10 years Energy flow: 20 MWh at 70% end of life Certifications: UN38.3, IEC62619, CE, IEC 0-21, VDE2510-50 The Deye RW-M 6.1-B is an advanced lithium iron phosphate (LFP) battery designed to provide reliable, safe and high-efficiency energy storage solutions for residential and commercial applications. With its advanced battery management system (BMS) and modular design, this battery ensures long cycle life, high power density and complete protection for your energy storage needs. Main features: Safety and longevity: Cobalt-free LFP chemistry ensures safer operation. Intelligent BMS provides comprehensive protection and extends service life. Supporting high discharge power ensures reliability. High efficiency: High power density for efficient energy storage. Operating voltage range from 43.2 V to 57.6 V. Usable energy capacity of 5.53 kWh with a nominal voltage of 51.2V. Flexible and scalable: The modular design allows for easy expansion, supporting up to 32 units in parallel. Maximum capacity of 196 kWh. Suitable for various applications with limited installation space and limited load. Practical and smart: Self-networking battery modules for effortless maintenance. Remote monitoring and firmware upgrades via USB stick. CAN 2.0 and RS485 communication ports for seamless integration. Respectful of nature: Made from non-toxic and pollution-free materials. Designed to be environmentally friendly. Multi-purpose installation: Supports wall and floor mounting configurations. Saves installation space with flat design. Robust construction: IP65 rating for a rugged enclosure. Works efficiently in a wide temperature range (-20℃ to 55℃). Lifespan of ≥ 6000 cycles at 25℃. Accessories included: Battery Hanging Board (RW-M6.1-B-Hboard): For wall mounting. Hybrid inverter cable (RW-M6.1-B-PCable1500): Length 1500 mm, waterproof terminals. Battery Parallel Cable (RW-M6.1-B-BCable300): Length 300mm, waterproof terminals. Fixed Brackets (RW-M6.1-B-Fixed Bracket): To secure the battery when mounted on the floor. Click on the icons to download the following files: Technical sheet User Guide Guarantee Compatibility Statement Safety data sheets

Read more less

Deye SE-G5.1 Pro-B 5.12 kWh LiFePO₄ 51.2 V Solar Battery – Residential Photovoltaic Storage Store your solar energy and increase your self-consumption The Deye SE-G5.1 Pro-B 5.12 kWh battery is a high-performance LiFePO₄ lithium storage solution designed for residential photovoltaic installations. It allows you to store your surplus electricity produced by your solar panels during the day and use it when your solar production decreases: in the evening, at night, or during periods of low sunlight. With its capacity of 5.12 kWh, it represents an ideal solution for homes equipped with solar panels of 3 to 9 kWp wishing to reduce their dependence on the electricity grid. Why choose the Deye SE-G5.1 Pro-B battery? ✓ A battery designed for residential solar storage Energy capacity: 5.12 kWh Technology: Lithium Iron Phosphate (LiFePO₄) Long lifespan: up to 6000 cycles Manufacturer's warranty: 10 years Low maintenance High thermal safety LiFePO₄ technology is now considered one of the most reliable lithium chemistries for stationary storage. Advantages of the Deye SE-G5.1 Pro-B Maximize your solar self-consumption Without a battery, a part of your photovoltaic production is often sent to the grid. With a Deye battery: ☀️ Day:Your panels power your home and charge the battery with the surplus. 🌙 Evening and night:The battery returns your stored energy. ⚡ Result:You use more of your own solar production. A scalable solution Start with a 5.12 kWh battery and then increase your capacity according to your needs. The Deye SE-G5.1 Pro-B allows the installation of several modules in parallel to accompany the evolution of your consumption. Examples: Need Recommended configuration Small solar home 1 × 5.12 kWh Family home 6 kWp 1 to 2 × 5.12 kWh Heat pump + electric vehicle 2 to 4 × 5.12 kWh Technical specifications Characteristic Value Brand Deye Model SE-G5.1 Pro-B Type Solar lithium battery Nominal capacity 5.12 kWh Technology LiFePO₄ Nominal voltage 51.2 V Battery capacity 100 Ah Charge/discharge current Up to 100 A Communication CAN / RS485 Installation Wall-mounted or floor-standing Mounting Indoor / protected outdoor Expansion Up to several modules Warranty 10 years Compatible with modern solar installations The Deye SE-G5.1 Pro-B battery is particularly suitable for hybrid systems: ✓ Deye hybrid inverters✓ Residential low-voltage 48 V photovoltaic installations✓ Self-consumption solutions with storage Before purchasing, check compatibility with your existing inverter. What battery capacity to choose? Example for a house equipped with solar panels: 3 kWp installation: 1 Deye 5.12 kWh battery 6 kWp installation: 1 to 2 Deye 5.12 kWh batteries 9 kWp or more installation: 2 batteries or more depending on consumption Deye SE-G5.1 Pro-B: a powerful alternative to more expensive batteries Many households compare the Deye SE-G5.1 Pro-B with Pylontech or Dyness batteries. Its strengths: ✓ Large capacity of 5.12 kWh✓ Reliable LiFePO₄ technology✓ Expandable✓ Excellent capacity/price ratio✓ Native integration with Deye systems Installation and delivery Your Deye battery delivered in France With Anysolars: ✓ New and official Deye product✓ Manufacturer's warranty✓ Secure delivery✓ Customer support in French✓ Advice before installation Each battery is shipped with packaging suitable for the transport of lithium materials. Frequently asked questions How long does a Deye SE-G5.1 Pro-B battery last? Thanks to its LiFePO₄ technology, it is designed for several thousand cycles and daily use for many years. How many Deye batteries are needed for a house? It depends on your consumption and your solar installation. A house equipped with 6 kWp of solar panels generally uses 1 to 2 5.12 kWh batteries. Can I add a second battery later? Yes. The system is designed to evolve with your increasing energy needs. Does the battery work without solar panels? It can only be used in an installation compatible with a suitable inverter allowing storage management. Is this battery suitable for a heat pump or an electric car? Yes, especially with several modules installed to increase the available capacity. Recommended pack Deye solar self-consumption pack For a complete residential installation: Deye hybrid inverter 1 or 2 SE-G5.1 Pro-B batteries Suitable photovoltaic installation Contact us for a configuration adapted to your consumption. Key features to remember ⭐ Deye 5.12 kWh solar battery⭐ Long-lasting LiFePO₄ technology⭐ 10-year warranty⭐ Expandable⭐ Ideal solution to increase your energy autonomy Order your Deye SE-G5.1 Pro-B battery and fully exploit your solar production. Click on the icons to download the following files: Datasheet User Guide Warranty

Read more less

The GE-F60 is an ideal high-voltage storage battery solution for home or commercial backup power needs, off-grid sites, frequency regulation, or renewable energy integration. It is compatible with photovoltaic solar, wind, diesel generator, and grid power systems. ✅ Key Features: High storage capacity up to 230 kWh in a small footprint Rated output power: 100 kW with 88% cycle efficiency Smart temperature control: batteries remain below 38 °C during operation Enhanced safety: automatic aerosol shutdown, multiple alarms, and ventilation Reliable LFP technology: over 6000 cycles and 10-year warranty Modular and scalable design: addition of MPPTs, charging modules, or generators Technical Specifications Cell Chemistry: LiFePO4 for stability and durability. Module Energy: 5.12 kWh per module. System Energy: 61.44 kWh total, with 55.29 kWh usable energy. Charge/Discharge Current: Flexible options with 50 A recommended, 100 A nominal, and a 125 A peak discharge for 2 minutes at 25°C. Operating Conditions: Charging temperature range of 0 to 55°C and discharge of -20 to 55°C. Humidity and Altitude Tolerance: Designed to operate between 5% and 85% RH and at altitudes up to 2000m. Enclosure Rating: IP55, ensuring protection against dust and low-pressure water jets. Dimensions and Weight: 780 x 1056 x 2235 mm and approximately 1.2 T. Installation: Floor-mounted for ease and convenience. Cycle Life: More than 6000 cycles at 25°C ± 2°C with a 0.5 C charge/discharge rate, maintaining at least 70% of original capacity. Warranty: 10-year product warranty, guaranteeing long-term reliability and customer satisfaction. Certifications: CE, IEC62619, IEC62040, UN38.3, meeting international safety and quality standards. Ideal Applications The Deye GE-F60 series is versatile and can be used in a variety of settings, including: Residential energy storage Commercial and industrial energy management Emergency backup power Off-grid power solutions Renewable energy integration Click on the icons to download the following files: Datasheet

Read more less

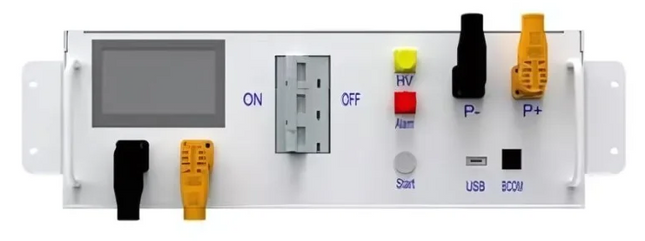

The DEYE HVB750/100A-EU BMS control module for high voltage batteries is designed to work with DEYE's specific energy storage systems, especially those using high voltage batteries. The BMS, or Battery Management System, plays a crucial role in managing, protecting and optimizing battery performance. The main functions of this module are: 1. Charge and discharge management The BMS regulates the charging and discharging of batteries to maximize their life and efficiency. It ensures that batteries are neither overcharged nor discharged beyond their safe limits, protecting against situations that could damage battery cells or reduce their performance over time. 2. Balancing cells Batteries are made up of multiple cells that may have slightly different charge rates. The BMS balances the charge between these cells, ensuring that all reach an even charge level. This prevents individual cells from being overcharged or undercharged relative to each other, extending the life of the battery. 3. Surveillance and protection The module continuously monitors critical battery parameters, such as voltage, current, and temperature. If any of these parameters exceed safe thresholds, the BMS can take immediate action to protect the batteries, such as disconnecting the load or charging source to prevent damage. 4. Communication The BMS control module communicates with other components in the energy system, such as inverters and charge controllers. This communication enables seamless integration and coordination of energy storage, power generation (such as solar panels), and electrical loads in the home or facility. 5. Performance optimization By adjusting battery charging and discharging based on intended usage and operational conditions, the BMS can help optimize the performance of the energy storage system, ensuring that energy is available when needed and stored efficiently. 6. Compatibility and integration Specifically designed for DEYE high voltage batteries, this module ensures seamless integration with DEYE products, providing a reliable and efficient energy storage solution that is optimized to work with DEYE inverters and other equipment. In summary, DEYE HVB750/100A-EU BMS control module is essential for the safe and efficient management of high-voltage batteries in energy storage systems, providing protection, optimized performance, and seamless integration with residential or commercial energy systems. Operating voltage: 120~750VDC Nominal charge-discharge current: 100 A Maximum charge/discharge current: 125 A DC input rating: 12±2%V/4.15A. Operating temperature range: -20 ~ 55 °C Degree of protection: IP20 Width: 570 mm Height: 150 mm Depth: 440 mm Weight: 15.5 kg Warranty: 10 years Protection : IP20

Read more less
