Onduleurs Solaire

The Deye SUN-6K-SG03LP1 series is a versatile and robust single-phase hybrid inverter, optimized for energy management in residential and commercial applications. Designed to support a wide range of features, this series ensures seamless integration with existing solar systems and provides a scalable energy solution with a host of advanced features. Main features 1. High charge/discharge current : The SUN-(3.6-6)K-SG03LP1 series supports a maximum charge and discharge current of 135A, facilitating fast and efficient battery cycling. This means your energy storage system can quickly adapt to fluctuations in energy demand and supply. 2. Diesel Generator Compatibility : This series is designed to store energy from diesel generators, making it particularly useful in off-grid settings where reliable power sources may vary. This compatibility enhances the inverter's versatility in hybrid energy systems. 3. Parallel Operation : Up to 16 units of these inverters can be connected in parallel, allowing for both on-grid and off-grid operations. This feature provides scalability and flexibility, accommodating larger installations and future expansions without significant reconfiguration. 4. Multiple Battery Compatibility : Inverters support parallel connection of multiple batteries, meeting increased energy storage needs. This is particularly useful in scenarios where energy storage capacity needs to be increased over time. 5. AC Coupling : AC coupling allows for easy retrofitting of existing solar systems, making upgrades both seamless and cost-effective. This ensures that older systems can benefit from the latest technologies without the need for complete overhauls. 6. Advanced Load Management : The inverter supports up to 6 time periods for battery charging and discharging. This allows users to optimize energy consumption based on time-of-use rates, thereby reducing energy costs. 7. User-friendly Interface : Equipped with a colorful touch LCD display, the inverter allows for intuitive interaction and monitoring. In addition, its IP65 protection rating ensures its durability in various environments, adding to its reliability. Technical specifications Battery Input Data : Battery Type: Lead-Acid or Lithium-Ion Voltage range: 40-60V Max. charge/discharge current: 135 A PV String Input Data : Max. Photovoltaic input power: up to 7,800 W Max. Photovoltaic input voltage: 500 V Starting voltage: 125 V Nominal PV input voltage: 370 V MPPT voltage range: 150-425V AC Input/Output Data : Rated input/output power: up to 6000 W Max. Apparent AC Input/Output Power: 6600 VA Rated AC input/output current: up to 27.3 A Max. Continuous AC pass (network to load): 35/40 A Peak power (off-grid): 2 times rated power for 10 seconds Power factor adjustment range: 0.8 leading to 0.8 lagging Efficiency : Max. Efficiency: 97.6% European efficiency: 96.5% MPPT efficiency: > 99% Harmonic distortion and injection : Total harmonic distortion of current (THDi): <3% of rated power DC injection current: <0.5% of nominal current Protection and standards Deye SUN-(3.6-6)K-SG03LP1 series is equipped with a full suite of protection mechanisms, including DC polarity reverse connection protection, overcurrent protection, overvoltage protection, short circuit protection and thermal protection. It meets international standards such as IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99 and VDE-AR-N 4105. Design and installation : With an operating temperature range of -40 to +60°C (with derating above 45°C), IP65 rating and intelligent air cooling, this inverter is built to last. Its compact and lightweight design (330×580×232 mm, 25 kg) simplifies installation and maximizes flexibility. Communication : Monitoring options include GPRS, WIFI, Bluetooth, 4G and LAN (optional), and the supported communication interfaces are RS485, RS232 and CAN. Warranty and Support : The inverters come with a standard 5-year warranty, extendable to 10 years depending on the installation site and detailed warranty policy. This powerful and adaptable hybrid inverter is ideal for modern energy systems, delivering high performance, efficiency and reliability for sustainable energy solutions. Click on the icons to download the following files: Technical sheet

Read more less

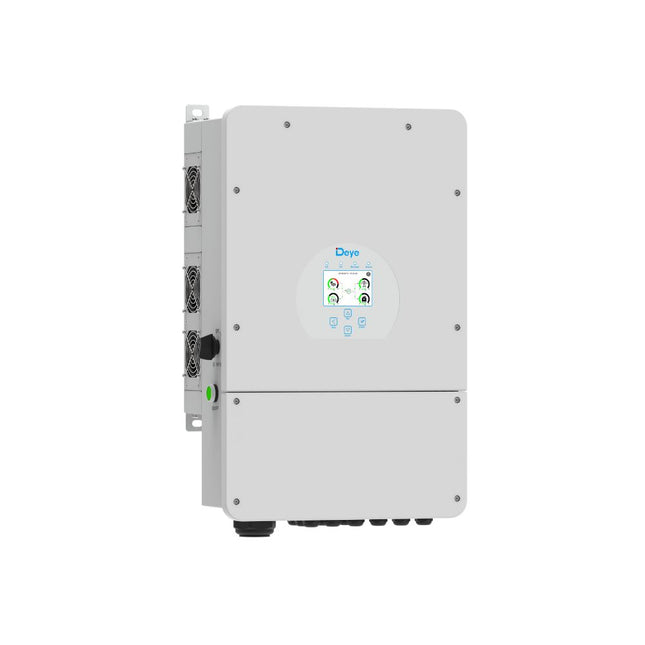

The Deye SUN-8K-SG01LP1-EU is an advanced single-phase hybrid inverter designed to meet the demands of modern solar power systems. With a strong focus on versatility, efficiency, and reliability, this inverter supports both on-grid and off-grid operations, making it an ideal choice for residential and commercial applications. Description Key Features and Benefits High Charge and Discharge Capacity: The inverter can handle a maximum charge and discharge current of 190A, ensuring fast and efficient energy transfer. This capacity supports stable and reliable power supply, meeting high energy demands without compromising performance. Scalability: One of the remarkable features of the SUN-7.6K/8K-SG01LP1-EU is its ability to connect up to 16 units in parallel. This feature is applicable to both on-grid and off-grid operations, making it highly scalable and adaptable to growing energy needs. Whether it is a residential installation or a larger commercial installation, this inverter can expand as your energy needs grow. Diverse Battery Compatibility: The inverter is compatible with both lead-acid and lithium-ion batteries. It automatically adapts to the battery management system (BMS), which optimizes the charging strategy to improve battery performance and life. This compatibility provides great flexibility in choosing or upgrading battery systems. AC Coupling: The inverter supports AC coupling, which makes it easy to upgrade existing solar energy systems. This feature allows the hybrid inverter to be integrated into current configurations without significant modifications, providing an efficient upgrade path to enhance energy storage capabilities. User-friendly Interface: Equipped with a colorful touch LCD display, the inverter offers a user-friendly interface that simplifies monitoring and control. The display provides real-time data on energy production, consumption and storage, making energy management simple and accessible. Robust Protection and Safety Features: The Deye SUN-7.6K/8K-SG01LP1-EU is designed with comprehensive protection mechanisms. These include DC polarity reverse connection protection, AC output overcurrent protection, thermal protection, ground fault current monitoring, and more. These features ensure safe and reliable operation under various conditions. High Efficiency: With a maximum efficiency of 97.6%, a European efficiency of 96.5% and an MPPT (Maximum Power Point Tracking) efficiency of over 99%, the inverter maximizes the use of available solar energy. This high efficiency rate helps reduce energy losses and improve overall system performance. Environmental Compatibility: The inverter is designed to withstand harsh environmental conditions, operating at temperatures ranging from -40 to +60°C with derating above 45°C. It is also designed to operate at altitudes up to 2,000 meters, making it suitable for a wide range of geographical locations. Communication and Monitoring: It supports multiple monitoring modes, including GPRS, WIFI, Bluetooth, 4G and LAN (optional). Communication interfaces include RS485, RS232 and CAN, providing versatile options for remote monitoring and integration into smart home systems. Compact and durable design: The inverter features a compact design with dimensions of 420 × 670 × 233 mm (excluding connectors and brackets) and weighs 30 kg. Its IP65 rating ensures that it is protected against dust and water ingress, improving its durability and suitability for outdoor installations. The intelligent air cooling system also ensures optimal operating temperatures and longevity. Technical specifications Battery voltage range: 40-60V Max. charge/discharge current: 190A MPPT voltage range: 150-425V Max. Photovoltaic input power: SUN-7.6K: 9,880 W, SUN-8K: 10,400 W Max. Efficiency: 97.6% European efficiency: 96.5% MPPT efficiency: >99% Safety Standards and Certifications: The inverter complies with various international standards including IEC 61727, IEC 62116, IEC 0-21, EN 50549, and many others, ensuring that it meets strict safety and performance criteria. The Deye SUN-7.6K/8K-SG01LP1-EU hybrid inverter is a smart, efficient and robust solution designed to meet the changing needs of solar energy users. Click on the icons to download the following files: Technical sheet

Read more less

Caractéristiques mécaniques APsystems EZ1-H (960VA) Micro-onduleur Ce APsystems EZ1-H (960VA) Micro-onduleur est principalement dédié aux kits "à monter soi-même" (DIY). (4 modules PV max. par installation soit 2 micros EZ1 max.) Wi-Fi et le Bluetooth intégrés Permet de connecter jusqu'à deux modules PV avec ses 2 canaux d’entrée indépendants (MPPT).  Courant d’entrée élevé pour s’adapter aux panneaux haute puissance (2x 20A). Fiabilité maximum, IP67, Relais VDE intégrés (NF EN 50549-1), Puissance de sortie 960VA. Les utilisateurs peuvent se connecter directement à la série EZ1 localement avec leurs téléphones portables via Bluetooth et obtenir les données en temps réel. En plus de la connexion directe, la série EZ1 peut également se connecter à un routeur via Wi-Fi et envoyer des données à des serveurs cloud pour une surveillance à distance. Détails de l'article  Fabricant désignation de l'article    EZ1-H Intrastat pays d'origine    Chine Fabricant    APsystems Instrastat numéro de produit (HS-Code)    85044085 Dimensions Longueur sans emballage (mm)    263.00 Hauteur sans emballage (mm)    37.00 Largeur sans emballage (mm)    218.00 Poids sans emballage (kg)    3.000 Emballage Poids incl l'emballage (kg)    3.000 Quantité par palette    180 Matériel d'emballage    Carton Garantie Garantie fabricant    APsystems Garantie standard du produit (années)    12 Garantie du produit (ans)    12 Données techniques Topologie sans transformateur Plage de tension d'entrée min. MPP (V) 28.00 Puissance maximale du générateur DC (kWc) 0.76 Température ambiante min. (°C) -40 Interface 1 W-Lan Courant de sortie max. (A) 4.20 Interface 2 Bluetooth Nombre de MPPT (pcs) 2 Rendement maximal (%) 96.70 Nombre max. d'entrées de chaîne 2 Classe de protection IP67 Tension d'entrée max. DC (V) 60.00 Courant d'entrée max. par MPPT (A). 20 Puissance nominale AC (kW) 0.96 Utilisation hors réseau non Tension d'entrée minimale (V) 26 Type de connecteur DC MC4 compatible Plage de tension d'entrée max. MPP (V) 45.00 Puissance AC max (kVA) 0.96 Courant de court-circuit max. total (A) 50.00 MC4 compatible   Click on the icons to download the following files: Fiche technique (EN) Instructions de montage Fiche technique (FR) Guide d'utilisation Garantie

Read more less

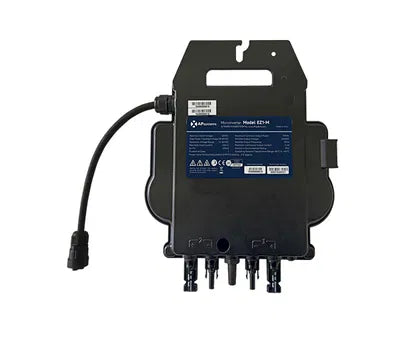

Caractéristiques mécaniques La série EZ1 d’APsystems est une gamme de micro-onduleurs duo avec technologies WIFI et Bluetooth intégrées,spécialement conçus pour les kits photovoltaïques facile à mettre en oeuvre par des auto-installateurs. Basés sur notre technologie de 3ème génération, les micro-onduleurs de la série EZ1 ont 2 canaux d'entrées avec MPPT indépendant et un courant d'entrée et une puissance de sortie élevée pour s'adapter aux modules haute puissance d'aujourd'hui. Les utilisateurs peuvent se connecter directement à la série EZ1 localement avec leurs téléphones portables via Bluetooth et obtenir les données en temps réel de leur kits solaires. En plus de la connexion directe, la série EZ1 peut également se connecter à un routeur via Wi-Fi et envoyer des données à des serveurs cloud pour une surveillance à distance. Grâce à un câble d'extension AC spécifique fourni par APsystems, la série EZ1 peut être branchée sur une prise de courant et produire de l’énergie directement, une connexion au réseau vraiment simple et pratique. Détails de l'article Intrastat pays d'origine    Chine Fabricant    APsystems Instrastat numéro de produit (HS-Code)    85044085 Fabricant désignation de l'article    EZ1-M-EU (800W) Dimensions Hauteur sans emballage (mm)    41.00 Poids sans emballage (kg)    2.700 Longueur sans emballage (mm)    263.00 Largeur sans emballage (mm)    218.00 Emballage Poids incl l'emballage (kg)    3.000 Garantie Garantie fabricant    APsystems Garantie standard du produit (années)    12 Données techniques Plage de tension d'entrée min. MPP (V) 28.00 Type de connecteur DC MC4 Puissance nominale AC (kW) 0.80 Tension d'entrée minimale (V) 16 Classe de protection IP IP67 Température ambiante min. (°C) -40 Topologie transformateur Nombre de MPPT (pcs) 2 Nombre max. d'entrées de chaîne 2 Classe de protection IP67 Tension d'entrée max. DC (V) 60.00 Courant d'entrée max. par MPPT (A). 20 Affichage sans écran Puissance AC max (kVA) 0.80 Puissance maximale du générateur DC (kWc) 0.73 Courant d'entrée max. total DC (A) 40.00 Plage de tension d'entrée max. MPP (V) 45.00 Courant de court-circuit max. total (A) 50.00 Rendement maximal (%) 97.30   Click on the icons to download the following files: Fiche technique (EN) Instructions de montage Fiche technique (FR) Guide d'utilisation Garantie

Read more less

Productivité élevée Micro-onduleur APSystems QS2 Optimisé pour les modules photovoltaïques à très haute puissance, le micro-onduleur monophasé 2200W 4 MPPT assure des performances élevées. Puissance continue maximale jusqu’à 2200W pour répondre aux besoins énergétiques exigeants. Rendement MPPT de 99,5 % avec un rendement global pouvant atteindre 96 %. Conception intelligente Une seule unité du micro-onduleur APSystems QS2 peut être connectée à 4 modules photovoltaïques. Il intègre 4 entrées indépendantes avec suivi MPPT et surveillance optimisée pour chaque panneau. Communication sans fil sécurisée pour un suivi simple et efficace. Compatible avec la série DS3 afin d’améliorer la flexibilité et le rapport coût-efficacité. Conçu pour les installations résidentielles et commerciales en monophasé. Sécurité éprouvée Tension continue basse de 60 V, conforme aux exigences de coupure rapide. Relais de protection intégré pour une sécurité renforcée du système. Transformateurs haute fréquence avec isolation galvanique pour plus de fiabilité. Plusieurs options de mise à la terre, incluant câble, patte de fixation et rondelle. Haute fiabilité Le micro-onduleur est encapsulé en silicone pour protéger les composants électroniques. Cette conception améliore la dissipation thermique et réduit les contraintes internes. Indice de protection IP67 pour une utilisation en extérieur dans des conditions exigeantes. Des tests rigoureux, dont des tests de durée de vie accélérée, garantissent une performance durable. Détails de l'article Intrastat pays d'origine    Chine Fabricant    APsystems Instrastat numéro de produit (HS-Code)    85044085 Fabricant désignation de l'article    QS2 Dimensions Poids sans emballage (kg)    6.600 Hauteur sans emballage (mm)    272.00 Largeur sans emballage (mm)    365.00 Longueur sans emballage (mm)    40.60 Emballage Longueur incluant l'emballage (cm)    4.06 Taille incluant l'emballage (cm)    27.20 Poids incl l'emballage (kg)    6.600 Largeur incluant l'emballage (cm)    36.50 Garantie Garantie fabricant    APsystems Garantie standard du produit (années)    12 Données techniques Courant d'entrée max. par MPPT (A). 100 Type de connecteur DC MC4 Courant de sortie max. (A) 9.60 Nombre de MPPT (pcs) 4 Puissance AC max (kVA) 2.20 Rendement maximal (%) 96.00 Nombre max. d'entrées de chaîne 4 Tension d'entrée max. DC (V) 60.00 Puissance nominale AC (kW) 2.20 Tension d'entrée minimale (V) 26   Click on the icons to download the following files: Fiche technique (EN) Instructions de montage Fiche technique (FR) Guide d'utilisation Garantie Informations complémentaires Déclaration de conformité

Read more less

Caractéristiques mécaniques Ce micro onduleur prend en charge de 1 à 4 modules PV (20A/entrée max) Jusqu’à 24 modules (6x QT2 5C) max. sur une branche avec un disjoncteur de 20A P. sortie : 2000VA - 400V AC-50HZ   Une extension de garantie à 20 ans peut être contractée mais elle sera à commander lors du passage en commande des micros onduleurs et, à des fins de traçabilité, les numéros de séries devront impérativement être relevés sur site et consignés avant l'installation. Détails de l'article Intrastat pays d'origine    Chine Fabricant    APsystems Instrastat numéro de produit (HS-Code)    85044085 Fabricant désignation de l'article    QT2 Dimensions Longueur sans emballage (mm)    242.00 Largeur sans emballage (mm)    359.00 Hauteur sans emballage (mm)    46.00 Poids sans emballage (kg)    6.000 Emballage Quantité par palette    80 Poids incl l'emballage (kg)    6.000 Garantie Garantie fabricant    APsystems Garantie standard du produit (années)    12 Garantie du produit (ans)    10 Données techniques Plage de tension d'entrée min. MPP (V) 28.00 Type de connecteur DC MC4 Classe de protection IP IP67 Température ambiante min. (°C) -40 Puissance nominale AC (kW) 2.00 Topologie transformateur Puissance AC max (kVA) 2.00 Nombre de MPPT (pcs) 2 Rendement maximal (%) 97.00 Tension d’entrée max. (V) 22 Classe de protection IP67 Nombre max. d'entrées de chaîne 4 Courant de court-circuit max. total (A) 100.00 Tension d'entrée max. DC (V) 60.00 Affichage sans écran Courant de sortie max. (A) 2.90 Tension d'entrée minimale (V) 26 Plage de tension d'entrée max. MPP (V) 45.00 Courant d'entrée max. total DC (A) 80.00   Click on the icons to download the following files: Fiche technique (EN)

Read more less

Caractéristiques mécaniques SG125CX-P2 V21 Sungrow Onduleur triphasé N° de produit: 1558962N° de produit du fabricant ASG02271 Rendement élevé : 12 MPPT avec une efficacité maximale de 98,5%. Entrée de courant DC 15A, compatible avec les modules PV de plus de 500W Mode d'optimisation dynamique de l'ombrage Investissement réduit : Compatibilité avec les câbles CA en aluminium de max. 240mm² Al Câbles AC La plaque d'étanchéité des câbles à tiroir supporte le pré-assemblage des câbles CA Exploitation et maintenance intelligentes : Diagnostic et protection des composants clés Diagnostic intelligent de la courbe IV Fonction d'enregistrement des défauts du réseau, facile pour l'O&M à distance Sécurité éprouvée : Protection IP66 et anticorrosion C5 DC Type I+II SPD, AC Type II SPD Prise en charge de la fonction AFCI 2.0 Compatible avec les optimiseurs Sungrow Détails de l'article SG125CX-P2 V21 Sungrow Onduleur triphasé Intrastat pays d'origine    Chine Instrastat numéro de produit (HS-Code)    85044086 Fabricant désignation de l'article    SG125CX-P2 Fabricant    Sungrow Dimensions Largeur sans emballage (mm)    795.00 Poids sans emballage (kg)    89.500 Hauteur sans emballage (mm)    360.00 Longueur sans emballage (mm)    1020.00 Emballage Poids de la palette (kg)    124.50 Quantité par palette    1 Taille incluant l'emballage (cm)    56.00 Poids incl l'emballage (kg)    124.500 Matériel d'emballage    Carton Dimensions palette LxlxH (mm)    1115x900x560 Largeur incluant l'emballage (cm)    90.00 Longueur incluant l'emballage (cm)    111.50 Garantie Garantie du produit (ans)    5 Garantie fabricant    Sungrow Données techniques Topologie sans transformateur Courant d'entrée max. total DC (A) 360.00 Courant de court-circuit max. par MPPT (A) 40,0 Interface 2 Bluetooth Type de connecteur DC MC4 Evo 2 Courant d'entrée max. par MPPT (A). 30,0 Tension d’entrée max. (V) 200 Nombre max. d'entrées de chaîne 24 Protection contre les surtensions AC type 2 Classe de protection IP IP66 Interface 1 RS485 Phases d'alimentation 3 Rendement maximal (%) 98.50 Arrêt rapide non Nombre de MPPT (pcs) 12 Puissance AC max (kVA) 125.00 Convertisseur élévateur oui Affichage sans écran Tension d'entrée minimale (V) 600 Plage de tension d'entrée min. MPP (V) 180.00 Interrupteur DC intégré oui Température ambiante min. (°C) -30 Puissance nominale AC (kW) 125.00 Tension d'entrée max. DC (V) 1100.00 Protection du réseau oui Interrupteur de circuit de défaut d'arc oui Puissance maximale du générateur DC (kWc) 175.00 Courant de court-circuit max. total (A) 480.00 Plage de tension d'entrée max. MPP (V) 1000.00 Courant de sortie max. (A) 181.10 Protection contre les surtensions DC type 1 et type 2   Click on the icons to download the following files: Fiche technique (EN) Guide d'utilisation Garantie Fiche technique (FR)

Read more less

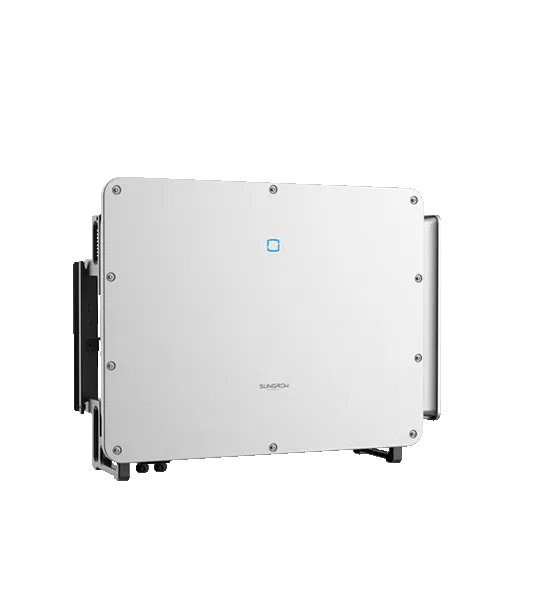

Caractéristiques mécaniques Sungrow Onduleur triphasé N° de produit: 1562330N° de produit du fabricant A0SG0179 Avantages du produit : Entrée de courant plus élevée, adaptable à tous les modules PV pour une plus grande flexibilité de conception Balayage MPPT global, augmentant le rendement de la production de plus de 2 %. Fonction de récupération PID intelligente Caractéristiques du produit SG150CX Sungrow Onduleur triphasé: Puissance AC : 150 kW Nombre de MPPT : 7 Connexion AC : Triphasé Communication : RS485 / WLAN ( en option ) / Ethernet ( en option ) Classe de protection : IP66 Refroidissement : actif Détails de l'article Intrastat pays d'origine    Chine Instrastat numéro de produit (HS-Code)    85044086 Fabricant    Sungrow Fabricant désignation de l'article    SG150CX Dimensions Longueur sans emballage (mm)    360.00 Hauteur sans emballage (mm)    795.00 Largeur sans emballage (mm)    1025.00 Poids sans emballage (kg)    96.500 Emballage Nb de palettes par conteneur    96 Quantité par palette    4 Poids incl l'emballage (kg)    134.500 Taille incluant l'emballage (cm)    112.00 Largeur incluant l'emballage (cm)    222.00 Matériel d'emballage    Carton Nombre par conteneur    384 Longueur incluant l'emballage (cm)    93.00 Garantie Garantie fabricant    Sungrow Données techniques Topologie sans transformateur Type de connecteur DC MC4 Evo 2 Interface 2 W-Lan Classe de protection IP66 Courant de sortie max. (A) 250.70 Tension d'entrée minimale (V) 180 Tension d’entrée max. (V) 200 Protection contre les surtensions AC type 2 Interface 1 RS485 Phases d'alimentation 3 Nombre max. d'entrées de chaîne 21 Affichage sans écran Plage de tension d'entrée min. MPP (V) 180.00 Puissance nominale AC (kW) 150.00 Courant d'entrée max. par MPPT (A). 48 Courant de court-circuit max. par MPPT (A) 66 Interrupteur DC intégré oui Courant d'entrée max. total DC (A) 336.00 Rendement maximal (%) 98.80 Température ambiante min. (°C) -30 Rendement européen (%) 98.40 Tension d'entrée max. DC (V) 1100.00 Courant de court-circuit max. total (A) 462.00 Interrupteur de circuit de défaut d'arc oui Nombre de MPPT (pcs) 7 Plage de tension d'entrée max. MPP (V) 1000.00 Puissance maximale du générateur DC (kWc) 210.00 Protection contre les surtensions DC type 1 et type 2 Puissance AC max (kVA) 165.00   Click on the icons to download the following files: Fiche technique (EN) Guide d'utilisation Garantie Fiche technique (FR)

Read more less

The Deye SUN-8K-SG01LP1-EU is an advanced single-phase hybrid inverter designed to meet the demands of modern solar power systems. With a strong focus on versatility, efficiency, and reliability, this inverter supports both on-grid and off-grid operations, making it an ideal choice for residential and commercial applications. Description Key Features and Benefits High Charge and Discharge Capacity: The inverter can handle a maximum charge and discharge current of 190A, ensuring fast and efficient energy transfer. This capacity supports stable and reliable power supply, meeting high energy demands without compromising performance. Scalability: One of the remarkable features of the SUN-7.6K/8K-SG01LP1-EU is its ability to connect up to 16 units in parallel. This feature is applicable to both on-grid and off-grid operations, making it highly scalable and adaptable to growing energy needs. Whether it is a residential installation or a larger commercial installation, this inverter can expand as your energy needs grow. Diverse Battery Compatibility: The inverter is compatible with both lead-acid and lithium-ion batteries. It automatically adapts to the battery management system (BMS), which optimizes the charging strategy to improve battery performance and life. This compatibility provides great flexibility in choosing or upgrading battery systems. AC Coupling: The inverter supports AC coupling, which makes it easy to upgrade existing solar energy systems. This feature allows the hybrid inverter to be integrated into current configurations without significant modifications, providing an efficient upgrade path to enhance energy storage capabilities. User-friendly Interface: Equipped with a colorful touch LCD display, the inverter offers a user-friendly interface that simplifies monitoring and control. The display provides real-time data on energy production, consumption and storage, making energy management simple and accessible. Robust Protection and Safety Features: The Deye SUN-7.6K/8K-SG01LP1-EU is designed with comprehensive protection mechanisms. These include DC polarity reverse connection protection, AC output overcurrent protection, thermal protection, ground fault current monitoring, and more. These features ensure safe and reliable operation under various conditions. High Efficiency: With a maximum efficiency of 97.6%, a European efficiency of 96.5% and an MPPT (Maximum Power Point Tracking) efficiency of over 99%, the inverter maximizes the use of available solar energy. This high efficiency rate helps reduce energy losses and improve overall system performance. Environmental Compatibility: The inverter is designed to withstand harsh environmental conditions, operating at temperatures ranging from -40 to +60°C with derating above 45°C. It is also designed to operate at altitudes up to 2,000 meters, making it suitable for a wide range of geographical locations. Communication and Monitoring: It supports multiple monitoring modes, including GPRS, WIFI, Bluetooth, 4G and LAN (optional). Communication interfaces include RS485, RS232 and CAN, providing versatile options for remote monitoring and integration into smart home systems. Compact and durable design: The inverter features a compact design with dimensions of 420 × 670 × 233 mm (excluding connectors and brackets) and weighs 30 kg. Its IP65 rating ensures that it is protected against dust and water ingress, improving its durability and suitability for outdoor installations. The intelligent air cooling system also ensures optimal operating temperatures and longevity. Technical specifications Battery voltage range: 40-60V Max. charge/discharge current: 190A MPPT voltage range: 150-425V Max. Photovoltaic input power: SUN-7.6K: 9,880 W, SUN-8K: 10,400 W Max. Efficiency: 97.6% European efficiency: 96.5% MPPT efficiency: >99% Safety Standards and Certifications: The inverter complies with various international standards including IEC 61727, IEC 62116, IEC 0-21, EN 50549, and many others, ensuring that it meets strict safety and performance criteria. The Deye SUN-7.6K/8K-SG01LP1-EU hybrid inverter is a smart, efficient and robust solution designed to meet the changing needs of solar energy users. Deye SUN-7.6/8K-SG01LP1-EU Datasheet

Read more less

Deye SUN-(5-25)K- SG01HP3-EU hybrid inverter series is meticulously designed to deliver superior performance for modern solar power systems. It meets a wide spectrum of energy needs with models ranging from 5 kW to 25 kW, making it suitable for both residential and commercial applications. This inverter series is designed to meet the dynamic demands of power systems, ensuring reliability, flexibility and efficiency in energy management. Main features High charge/discharge efficiency: Deye SUN series inverters offer a maximum charge/discharge current of 50A, enabling fast and efficient energy storage and recovery. This feature helps users get the most out of their solar power systems by efficiently managing energy storage. Diesel Generator Support: Another notable capability is the support for diesel generator energy storage. This feature provides a versatile backup power option, ensuring that excess energy generated from diesel can be effectively saved and managed. Parallel operation: The inverters support parallel operations, allowing the connection of up to 10 units. This scalability is crucial for expanding power systems in both on-grid and off-grid applications, meeting growing energy demands. Optimal battery compatibility: Designed for high voltage lithium-ion batteries, Deye SUN inverters support a voltage range of 160 to 700 V. This wide compatibility range ensures higher efficiency and allows the system to adapt to different battery specifications. AC Coupling for Retrofit Applications: Designed with flexibility in mind, these inverters can be coupled with AC power to retrofit existing solar systems. This capability provides a seamless upgrade path for systems looking to enhance their solar power installations with hybrid inverter technology. Advanced energy management: The inverter series features the ability to set up to 6 different periods for battery charging and discharging. This advanced feature allows for optimal energy usage based on specific demands and energy availability, providing savings and increased efficiency. Technical highlights Battery Input: Type: Lithium-ion Voltage range: 160-700V Max. charge/discharge current: 50A PV chain input: Max. Photovoltaic Input Power: Up to 32,500 W Max. Photovoltaic input voltage: 1000V MPPT voltage range: 150-850V AC Input/Output: Rated power: 5000W to 25000W Apparent power: Up to 27,500 VA Voltage range: 220/380V, 230/400V Frequency range: 50/60 Hz Efficiency: Max. Efficiency: 97.6% European efficiency: 97.0% MPPT efficiency: >99% Protection features: Features built-in protections such as DC reverse polarity connection, AC overcurrent, AC overvoltage, short circuit, thermal protection, etc. Environmental and safety standards: Temperature range: -40 to +60°C Ingress Protection Rating: IP65 Altitude: 0-2000m Compliance: Complies with IEC/EN standards including 61000-6-1/2/3/4 and 62109-1/2. Monitoring and communication: Optional monitoring: GPRS, WIFI, Bluetooth, 4G, LAN Interfaces: RS485, RS232, CAN GENERAL DATA: Dimensions: 408x638x237mm (excluding connectors and brackets) Weight: 30.5kg Cooling: Natural cooling/smart air cooling Warranty: 5 years as standard, 10 years as option depending on the installation site Deye SUN-(5-25)K-SG01HP3-EU three-phase hybrid inverters are a robust, efficient and versatile solution designed to meet the evolving demands of modern solar power systems. The combination of advanced features, high efficiency and scalability makes it an exceptional choice for maximizing solar energy utilization and improving overall system performance. Click on the icons to download the following files: Technical sheet

Read more less

Deye SUN-(5-25)K-SG01HP3-EU hybrid inverter series is meticulously designed to deliver superior performance for modern solar power systems. It meets a wide spectrum of energy needs with models ranging from 5 kW to 25 kW, making it suitable for both residential and commercial applications. This inverter series is designed to meet the dynamic demands of power systems, ensuring reliability, flexibility and efficiency in energy management. Main features High charge/discharge efficiency: Deye SUN series inverters offer a maximum charge/discharge current of 50A, enabling fast and efficient energy storage and recovery. This feature helps users get the most out of their solar power systems by efficiently managing energy storage. Diesel Generator Support: Another notable capability is the support for diesel generator energy storage. This feature provides a versatile backup power option, ensuring that excess energy generated from diesel can be effectively saved and managed. Parallel operation: The inverters support parallel operations, allowing the connection of up to 10 units. This scalability is crucial for expanding power systems in both on-grid and off-grid applications, meeting growing energy demands. Optimal battery compatibility: Designed for high voltage lithium-ion batteries, Deye SUN inverters support a voltage range of 160 to 700 V. This wide compatibility range ensures higher efficiency and allows the system to adapt to different battery specifications. AC Coupling for Retrofit Applications: Designed with flexibility in mind, these inverters can be coupled with AC power to retrofit existing solar systems. This capability provides a seamless upgrade path for systems looking to enhance their solar power installations with hybrid inverter technology. Advanced energy management: The inverter series features the ability to set up to 6 different periods for battery charging and discharging. This advanced feature allows for optimal energy usage based on specific demands and energy availability, providing savings and increased efficiency. Technical highlights Battery Input: Type: Lithium-ion Voltage range: 160-700V Max. charge/discharge current: 50A PV chain input: Max. Photovoltaic Input Power: Up to 32,500 W Max. Photovoltaic input voltage: 1000V MPPT voltage range: 150-850V AC Input/Output: Rated power: 5000W to 25000W Apparent power: Up to 27,500 VA Voltage range: 220/380V, 230/400V Frequency range: 50/60 Hz Efficiency: Max. Efficiency: 97.6% European efficiency: 97.0% MPPT efficiency: >99% Protection features: Features built-in protections such as DC reverse polarity connection, AC overcurrent, AC overvoltage, short circuit, thermal protection, etc. Environmental and safety standards: Temperature range: -40 to +60°C Ingress Protection Rating: IP65 Altitude: 0-2000m Compliance: Complies with IEC/EN standards including 61000-6-1/2/3/4 and 62109-1/2. Monitoring and communication: Optional monitoring: GPRS, WIFI, Bluetooth, 4G, LAN Interfaces: RS485, RS232, CAN GENERAL DATA: Dimensions: 408x638x237mm (excluding connectors and brackets) Weight: 30.5kg Cooling: Natural cooling/smart air cooling Warranty: 5 years as standard, 10 years as option depending on the installation site Deye SUN-(5-25)K-SG01HP3-EU three-phase hybrid inverters are a robust, efficient and versatile solution designed to meet the evolving demands of modern solar power systems. The combination of advanced features, high efficiency and scalability makes it an exceptional choice for maximizing solar energy utilization and improving overall system performance. Click on the icons to download the following files: Technical sheet

Read more less

Deye SUN-(5-25)K- SG01HP3-EU hybrid inverter series is meticulously designed to deliver superior performance for modern solar power systems. It meets a wide spectrum of energy needs with models ranging from 5 kW to 25 kW, making it suitable for both residential and commercial applications. This inverter series is designed to meet the dynamic demands of power systems, ensuring reliability, flexibility and efficiency in energy management. Main features High charge/discharge efficiency: Deye SUN series inverters offer a maximum charge/discharge current of 50A, enabling fast and efficient energy storage and recovery. This feature helps users get the most out of their solar power systems by efficiently managing energy storage. Diesel Generator Support: Another notable capability is the support for diesel generator energy storage. This feature provides a versatile backup power option, ensuring that excess energy generated from diesel can be effectively saved and managed. Parallel operation: The inverters support parallel operations, allowing the connection of up to 10 units. This scalability is crucial for expanding power systems in both on-grid and off-grid applications, meeting growing energy demands. Optimal battery compatibility: Designed for high voltage lithium-ion batteries, Deye SUN inverters support a voltage range of 160 to 700 V. This wide compatibility range ensures higher efficiency and allows the system to adapt to different battery specifications. AC Coupling for Retrofit Applications: Designed with flexibility in mind, these inverters can be coupled with AC power to retrofit existing solar systems. This capability provides a seamless upgrade path for systems looking to enhance their solar power installations with hybrid inverter technology. Advanced energy management: The inverter series features the ability to set up to 6 different periods for battery charging and discharging. This advanced feature allows for optimal energy usage based on specific demands and energy availability, providing savings and increased efficiency. Technical highlights Battery Input: Type: Lithium-ion Voltage range: 160-700V Max. charge/discharge current: 50A PV chain input: Max. Photovoltaic Input Power: Up to 32,500 W Max. Photovoltaic input voltage: 1000V MPPT voltage range: 150-850V AC Input/Output: Rated power: 5000W to 25000W Apparent power: Up to 27,500 VA Voltage range: 220/380V, 230/400V Frequency range: 50/60 Hz Efficiency: Max. Efficiency: 97.6% European efficiency: 97.0% MPPT efficiency: >99% Protection features: Features built-in protections such as DC reverse polarity connection, AC overcurrent, AC overvoltage, short circuit, thermal protection, etc. Environmental and safety standards: Temperature range: -40 to +60°C Ingress Protection Rating: IP65 Altitude: 0-2000m Compliance: Complies with IEC/EN standards including 61000-6-1/2/3/4 and 62109-1/2. Monitoring and communication: Optional monitoring: GPRS, WIFI, Bluetooth, 4G, LAN Interfaces: RS485, RS232, CAN GENERAL DATA: Dimensions: 408x638x237mm (excluding connectors and brackets) Weight: 30.5kg Cooling: Natural cooling/smart air cooling Warranty: 5 years as standard, 10 years as option depending on the installation site Deye SUN-(5-25)K-SG01HP3-EU three-phase hybrid inverters are a robust, efficient and versatile solution designed to meet the evolving demands of modern solar power systems. The combination of advanced features, high efficiency and scalability makes it an exceptional choice for maximizing solar energy utilization and improving overall system performance. Click on the icons to download the following files: Technical sheet

Read more less

The Deye three-phase hybrid inverter series is designed for robust performance and efficient energy management in residential and commercial environments. With a focus on high efficiency, seamless integration and advanced protection features, these inverters offer a versatile solution for modern energy needs. Description Models SUN-29.9K-SG01HP3-EU-BM3 SUN-30K-SG01HP3-EU-BM3 SUN-35K-SG01HP3-EU-BM3 SUN-40K-SG01HP3-EU-BM4 SUN-50K-SG01HP3-EU-BM4 Main features High charge/discharge current: Supports maximum charge and discharge current of 100A, ensuring flexibility in managing energy storage needs. Energy Storage Compatibility: Capable of storing energy from diesel generators, making it suitable for regions where power supply is unstable. Parallel Operation: Supports up to 10 units in parallel for both on-grid and off-grid scenarios, providing scalable energy solutions for larger installations. Multiple Battery Compatibility: Support multiple batteries in parallel, meeting higher energy storage demands. AC Coupling: Perfect for retrofitting existing solar systems, allowing seamless integration without major overhauls. Configurable Time Periods: Up to 6 time periods can be set for battery charging and discharging, allowing efficient energy usage tailored to specific needs. High Efficiency: Uses high voltage batteries, ensuring higher operational efficiency and more efficient energy storage. 100% Unbalanced Output: Each phase supports 100% unbalanced output, increasing power supply flexibility and reliability. Electrical characteristics The inverters are designed to handle a range of electrical inputs and outputs, suitable for various applications: Rated active AC input/output power: SUN-29.9K: 29.9 kW SOLEIL-30K: 30 kW SOLEIL-35K: 35 kW SUN-40K: 40 kW SUN-50K: 50 kW Battery Inputs: Type: Lithium-ion Voltage range: 160-800V Maximum charge/discharge current: 100A (divided into two 50A each) Number of battery inputs: 2 PV String Input Data: Maximum photovoltaic input power: SUN-29.9K: 38,870 W SOLEIL-30K: 39,000 W SUN-35K: 45,500 W SUN-40K: 52,000 W SUN-50K: 65,000 W Maximum PV input voltage: 1000V Starting voltage: 180V MPPT voltage range: 150-850V Number of MPP trackers: 3 or 4, depending on the model Operational characteristics Deye inverters offer high efficiency ratings and advanced protection features: Efficiency ratings: Maximum efficiency: 97.6% European efficiency: 97% MPPT efficiency: >99% Complete protection: Built-in DC reverse polarity connection protection AC output overcurrent/overvoltage/short circuit protection Earth fault current monitoring Surge protection (Type II for DC and AC) Island protection and thermal protection Environmental and safety compliance Operating temperature range: -40 to +60°C (with derating above 45°C) Ingress Protection Rating: IP65 Noise level: ≤65dB Authorized altitude: Up to 2000 meters Cooling Mechanism: Intelligent Air Cooling Physical characteristics Dimensions: 527 x 894 x 294 mm (excluding connectors and brackets) Weight: 80 kg Communication and monitoring Monitoring modes: GPRS, WIFI, Bluetooth, 4G, LAN (optional) Communication interfaces: RS485, RS232, CAN Compliance and warranty Network regulations : Complies with IEC 61727, IEC 62116, IEC 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105. Safety standards : Complies with IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1/2. Warranty: Standard 5 years, extendable to 10 years depending on the installation site. Click on the icons to download the following files: Technical sheet

Read more less

The Deye three-phase hybrid inverter series is designed for robust performance and efficient energy management in residential and commercial environments. With a focus on high efficiency, seamless integration and advanced protection features, these inverters offer a versatile solution for modern energy needs. Description Models SUN-29.9K-SG01HP3-EU-BM3 SUN-30K-SG01HP3-EU-BM3 SUN-35K-SG01HP3-EU-BM3 SUN-40K-SG01HP3-EU-BM4 SUN-50K-SG01HP3-EU-BM4 Main features High charge/discharge current: Supports maximum charge and discharge current of 100A, ensuring flexibility in managing energy storage needs. Energy Storage Compatibility: Capable of storing energy from diesel generators, making it suitable for regions where power supply is unstable. Parallel Operation: Supports up to 10 units in parallel for both on-grid and off-grid scenarios, providing scalable energy solutions for larger installations. Multiple Battery Compatibility: Support multiple batteries in parallel, meeting higher energy storage demands. AC Coupling: Perfect for retrofitting existing solar systems, allowing seamless integration without major overhauls. Configurable Time Periods: Up to 6 time periods can be set for battery charging and discharging, allowing efficient energy usage tailored to specific needs. High Efficiency: Uses high voltage batteries, ensuring higher operational efficiency and more efficient energy storage. 100% Unbalanced Output: Each phase supports 100% unbalanced output, increasing power supply flexibility and reliability. Electrical characteristics The inverters are designed to handle a range of electrical inputs and outputs, suitable for various applications: Rated active AC input/output power: SUN-29.9K: 29.9 kW SOLEIL-30K: 30 kW SOLEIL-35K: 35 kW SUN-40K: 40 kW SUN-50K: 50 kW Battery Inputs: Type: Lithium-ion Voltage range: 160-800V Maximum charge/discharge current: 100A (divided into two 50A each) Number of battery inputs: 2 PV String Input Data: Maximum photovoltaic input power: SUN-29.9K: 38,870 W SOLEIL-30K: 39,000 W SUN-35K: 45,500 W SUN-40K: 52,000 W SUN-50K: 65,000 W Maximum PV input voltage: 1000V Starting voltage: 180V MPPT voltage range: 150-850V Number of MPP trackers: 3 or 4, depending on the model Operational characteristics Deye inverters offer high efficiency ratings and advanced protection features: Efficiency ratings: Maximum efficiency: 97.6% European efficiency: 97% MPPT efficiency: >99% Complete protection: Built-in DC reverse polarity connection protection AC output overcurrent/overvoltage/short circuit protection Earth fault current monitoring Surge protection (Type II for DC and AC) Island protection and thermal protection Environmental and safety compliance Operating temperature range: -40 to +60°C (with derating above 45°C) Ingress Protection Rating: IP65 Noise level: ≤65dB Authorized altitude: Up to 2000 meters Cooling Mechanism: Intelligent Air Cooling Physical characteristics Dimensions: 527 x 894 x 294 mm (excluding connectors and brackets) Weight: 80 kg Communication and monitoring Monitoring modes: GPRS, WIFI, Bluetooth, 4G, LAN (optional) Communication interfaces: RS485, RS232, CAN Compliance and warranty Network regulations : Complies with IEC 61727, IEC 62116, IEC 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105. Safety standards : Complies with IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1/2. Warranty: Standard 5 years, extendable to 10 years depending on the installation site. Click on the icons to download the following files: Technical sheet

Read more less

Deye three-phase hybrid inverter, including SUN-5K-SG04LP3-EU, SUN-6K-SG04LP3-EU, SUN-8K-SG04LP3-EU, SUN-10K-SG04LP3-EU and SUN-12K-SG04LP3-EU , is a sophisticated energy management solution designed for residential and commercial solar power applications. This series of inverters is designed to integrate solar power generation with battery storage, ensuring optimal energy utilization and improving overall system efficiency. Main features High charge/discharge efficiency: The inverters support a maximum charge and discharge current of up to 240A, enabling rapid energy storage and withdrawal. This feature is crucial for applications requiring rapid response to energy demands. Diesel Generator Compatibility: These inverters can store energy from diesel generators, improving energy resilience in environments where backup power sources are required. Parallel Operation Capability: Up to 10 inverters can operate in parallel, enabling on-grid and off-grid scenarios with scalable energy systems. Users can also parallel multiple batteries, providing a high degree of flexibility in energy storage solutions. Retrofit Adaptability: Inverters can be coupled with AC power to retrofit existing solar systems, making it easy to upgrade and expand current installations without significant reconfiguration. Advanced Battery Management: Supports six time periods for battery charging and discharging, facilitating advanced energy management strategies. The inverter is compatible with 48V low-voltage batteries and features a transformer isolation design for added safety and reliability. Asymmetrical Output Management: Capable of handling 100% asymmetrical output, where each phase can provide up to 50% of the rated power. This ensures stable performance even under uneven load conditions. Technical specifications Battery Compatibility: The inverters work efficiently with both lead-acid and lithium-ion batteries, adapting to a voltage range of 40 to 60 V, with a self-adaptive Battery Management System (BMS). PV Input Characteristics: They include multiple maximum power point (MPP) trackers and a flexible number of strings per MPP tracker, supporting a PV input power range of 6,500 W to 15,600 W, depending on the model. Efficiency Ratings: Maximum efficiency is an impressive 97.6%, with European efficiency of 97% and MPPT efficiency over 99%. This ensures maximum energy conversion and minimum losses. Comprehensive Protection: The inverters are equipped with many safety features including DC reverse polarity protection, AC output overcurrent and overvoltage protection, AC output short circuit protection, thermal protection and extensive monitoring capabilities. Environmental and physical specifications Operating Temperature: The inverters can operate in temperatures ranging from -40°C to +60°C, with derating above 45°C. They also support a humidity range of 0 to 1,001 TP3T and are designed to operate at altitudes up to 2,000 meters. Noise and Ingress Protection: Noise levels are kept below 55 dB and they have an IP65 rating for outdoor use, ensuring their durability in various environmental conditions. Design and cooling: The inverters feature intelligent air cooling, compact dimensions (422 mm x 658 mm x 254 mm, excluding connectors and brackets) and a weight of 38 kg. Warranty and Compliance: They come with a standard 5-year warranty, extendable up to 10 years depending on the installation site, and comply with various international network regulations and safety standards. Communication and monitoring Interfaces and Monitoring Options: These inverters offer multiple communication options including GPRS, WIFI, Bluetooth, 4G and LAN (optional). They also include RS485, RS232 and CAN interfaces to ensure seamless integration and monitoring. Click on the icons to download the following files: Technical sheet

Read more less

Deye three-phase hybrid inverter, including SUN-5K-SG04LP3-EU, SUN-6K-SG04LP3-EU, SUN-8K-SG04LP3-EU, SUN-10K-SG04LP3-EU and SUN-12K-SG04LP3-EU, is a sophisticated energy management solution designed for residential and commercial solar power applications. This inverter series is designed to integrate solar power generation with battery storage, ensuring optimal energy utilization and improving overall system efficiency. Main features High charge/discharge efficiency: The inverters support a maximum charge and discharge current of up to 240A, enabling rapid energy storage and withdrawal. This feature is crucial for applications requiring rapid response to energy demands. Diesel Generator Compatibility: These inverters can store energy from diesel generators, improving energy resilience in environments where backup power sources are required. Parallel Operation Capability: Up to 10 inverters can operate in parallel, enabling on-grid and off-grid scenarios with scalable energy systems. Users can also parallel multiple batteries, providing a high degree of flexibility in energy storage solutions. Retrofit Adaptability: Inverters can be coupled with AC power to retrofit existing solar systems, making it easy to upgrade and expand current installations without significant reconfiguration. Advanced Battery Management: Supports six time periods for battery charging and discharging, facilitating advanced energy management strategies. The inverter is compatible with 48V low-voltage batteries and features a transformer isolation design for added safety and reliability. Asymmetrical Output Management: Capable of handling 100% asymmetrical output, where each phase can provide up to 50% of the rated power. This ensures stable performance even under uneven load conditions. Technical specifications Battery Compatibility: The inverters work efficiently with both lead-acid and lithium-ion batteries, adapting to a voltage range of 40 to 60 V, with a self-adaptive Battery Management System (BMS). PV Input Characteristics: They include multiple maximum power point (MPP) trackers and a flexible number of strings per MPP tracker, supporting a PV input power range of 6,500 W to 15,600 W, depending on the model. Efficiency Ratings: Maximum efficiency is an impressive 97.6%, with European efficiency of 97% and MPPT efficiency over 99%. This ensures maximum energy conversion and minimum losses. Comprehensive Protection: The inverters are equipped with many safety features including DC reverse polarity protection, AC output overcurrent and overvoltage protection, AC output short circuit protection, thermal protection and extensive monitoring capabilities. Environmental and physical specifications Operating Temperature: The inverters can operate in temperatures ranging from -40°C to +60°C, with derating above 45°C. They also support a humidity range of 0 to 1,001 TP3T and are designed to operate at altitudes up to 2,000 meters. Noise and Ingress Protection: Noise levels are kept below 55 dB and they have an IP65 rating for outdoor use, ensuring their durability in various environmental conditions. Design and cooling: The inverters feature intelligent air cooling, compact dimensions (422 mm x 658 mm x 254 mm, excluding connectors and brackets) and a weight of 38 kg. Warranty and Compliance: They come with a standard 5-year warranty, extendable up to 10 years depending on the installation site, and comply with various international network regulations and safety standards. Communication and monitoring Interfaces and Monitoring Options: These inverters offer multiple communication options including GPRS, WIFI, Bluetooth, 4G and LAN (optional). They also include RS485, RS232 and CAN interfaces to ensure seamless integration and monitoring. Click on the icons to download the following files: Technical sheet

Read more less

Deye three-phase hybrid inverter, including SUN-5K-SG04LP3-EU, SUN-6K-SG04LP3-EU, SUN-8K-SG04LP3-EU, SUN-10K-SG04LP3-EU and SUN-12K-SG04LP3-EU, is a sophisticated energy management solution designed for residential and commercial solar power applications. This inverter series is designed to integrate solar power generation with battery storage, ensuring optimal energy utilization and improving overall system efficiency. Main features High charge/discharge efficiency: The inverters support a maximum charge and discharge current of up to 240A, enabling rapid energy storage and withdrawal. This feature is crucial for applications requiring rapid response to energy demands. Diesel Generator Compatibility: These inverters can store energy from diesel generators, improving energy resilience in environments where backup power sources are required. Parallel Operation Capability: Up to 10 inverters can operate in parallel, enabling on-grid and off-grid scenarios with scalable energy systems. Users can also parallel multiple batteries, providing a high degree of flexibility in energy storage solutions. Retrofit Adaptability: Inverters can be coupled with AC power to retrofit existing solar systems, making it easy to upgrade and expand current installations without significant reconfiguration. Advanced Battery Management: Supports six time periods for battery charging and discharging, facilitating advanced energy management strategies. The inverter is compatible with 48V low-voltage batteries and features a transformer isolation design for added safety and reliability. Asymmetrical Output Management: Capable of handling 100% asymmetrical output, where each phase can provide up to 50% of the rated power. This ensures stable performance even under uneven load conditions. Technical specifications Battery Compatibility: The inverters work efficiently with both lead-acid and lithium-ion batteries, adapting to a voltage range of 40 to 60 V, with a self-adaptive Battery Management System (BMS). PV Input Characteristics: They include multiple maximum power point (MPP) trackers and a flexible number of strings per MPP tracker, supporting a PV input power range of 6,500 W to 15,600 W, depending on the model. Efficiency Ratings: Maximum efficiency is an impressive 97.6%, with European efficiency of 97% and MPPT efficiency over 99%. This ensures maximum energy conversion and minimum losses. Comprehensive Protection: The inverters are equipped with many safety features including DC reverse polarity protection, AC output overcurrent and overvoltage protection, AC output short circuit protection, thermal protection and extensive monitoring capabilities. Environmental and physical specifications Operating Temperature: The inverters can operate in temperatures ranging from -40°C to +60°C, with derating above 45°C. They also support a humidity range of 0 to 1,001 TP3T and are designed to operate at altitudes up to 2,000 meters. Noise and Ingress Protection: Noise levels are kept below 55 dB and they have an IP65 rating for outdoor use, ensuring their durability in various environmental conditions. Design and cooling: The inverters feature intelligent air cooling, compact dimensions (422 mm x 658 mm x 254 mm, excluding connectors and brackets) and a weight of 38 kg. Warranty and Compliance: They come with a standard 5-year warranty, extendable up to 10 years depending on the installation site, and comply with various international network regulations and safety standards. Communication and monitoring Interfaces and Monitoring Options: These inverters offer multiple communication options including GPRS, WIFI, Bluetooth, 4G and LAN (optional). They also include RS485, RS232 and CAN interfaces to ensure seamless integration and monitoring. Click on the icons to download the following files: Technical sheet

Read more less

Deye three-phase hybrid inverter, including SUN-5K-SG04LP3-EU, SUN-6K-SG04LP3-EU , SUN-8K-SG04LP3-EU, SUN-10K-SG04LP3-EU and SUN-12K-SG04LP3-EU, is a sophisticated energy management solution designed for residential and commercial solar power applications. This inverter series is designed to integrate solar power generation with battery storage, ensuring optimal energy utilization and improving overall system efficiency. Main features High charge/discharge efficiency: The inverters support a maximum charge and discharge current of up to 240A, enabling rapid energy storage and withdrawal. This feature is crucial for applications requiring rapid response to energy demands. Diesel Generator Compatibility: These inverters can store energy from diesel generators, improving energy resilience in environments where backup power sources are required. Parallel Operation Capability: Up to 10 inverters can operate in parallel, enabling on-grid and off-grid scenarios with scalable energy systems. Users can also parallel multiple batteries, providing a high degree of flexibility in energy storage solutions. Retrofit Adaptability: Inverters can be coupled with AC power to retrofit existing solar systems, making it easy to upgrade and expand current installations without significant reconfiguration. Advanced Battery Management: Supports six time periods for battery charging and discharging, facilitating advanced energy management strategies. The inverter is compatible with 48V low-voltage batteries and features a transformer isolation design for added safety and reliability. Asymmetrical Output Management: Capable of handling 100% asymmetrical output, where each phase can provide up to 50% of the rated power. This ensures stable performance even under uneven load conditions. Technical specifications Battery Compatibility: The inverters work efficiently with both lead-acid and lithium-ion batteries, adapting to a voltage range of 40 to 60 V, with a self-adaptive Battery Management System (BMS). PV Input Characteristics: They include multiple maximum power point (MPP) trackers and a flexible number of strings per MPP tracker, supporting a PV input power range of 6,500 W to 15,600 W, depending on the model. Efficiency Ratings: Maximum efficiency is an impressive 97.6%, with European efficiency of 97% and MPPT efficiency over 99%. This ensures maximum energy conversion and minimum losses. Comprehensive Protection: The inverters are equipped with many safety features including DC reverse polarity protection, AC output overcurrent and overvoltage protection, AC output short circuit protection, thermal protection and extensive monitoring capabilities. Environmental and physical specifications Operating Temperature: The inverters can operate in temperatures ranging from -40°C to +60°C, with derating above 45°C. They also support a humidity range of 0 to 1,001 TP3T and are designed to operate at altitudes up to 2,000 meters. Noise and Ingress Protection: Noise levels are kept below 55 dB and they have an IP65 rating for outdoor use, ensuring their durability in various environmental conditions. Design and cooling: The inverters feature intelligent air cooling, compact dimensions (422 mm x 658 mm x 254 mm, excluding connectors and brackets) and a weight of 38 kg. Warranty and Compliance: They come with a standard 5-year warranty, extendable up to 10 years depending on the installation site, and comply with various international network regulations and safety standards. Communication and monitoring Interfaces and Monitoring Options: These inverters offer multiple communication options including GPRS, WIFI, Bluetooth, 4G and LAN (optional). They also include RS485, RS232 and CAN interfaces to ensure seamless integration and monitoring. Click on the icons to download the following files: Technical sheet

Read more less

Deye three-phase hybrid inverter, including SUN-5K-SG04LP3-EU , SUN-6K-SG04LP3-EU, SUN-8K-SG04LP3-EU, SUN-10K-SG04LP3-EU and SUN-12K-SG04LP3-EU, is a sophisticated energy management solution designed for residential and commercial solar power applications. This series of inverters is designed to integrate solar power generation with battery storage, ensuring optimal energy utilization and improving overall system efficiency. Main features High charge/discharge efficiency: The inverters support a maximum charge and discharge current of up to 240A, enabling rapid energy storage and withdrawal. This feature is crucial for applications requiring rapid response to energy demands. Diesel Generator Compatibility: These inverters can store energy from diesel generators, improving energy resilience in environments where backup power sources are required. Parallel Operation Capability: Up to 10 inverters can operate in parallel, enabling on-grid and off-grid scenarios with scalable energy systems. Users can also parallel multiple batteries, providing a high degree of flexibility in energy storage solutions. Retrofit Adaptability: Inverters can be coupled with AC power to retrofit existing solar systems, making it easy to upgrade and expand current installations without significant reconfiguration. Advanced Battery Management: Supports six time periods for battery charging and discharging, facilitating advanced energy management strategies. The inverter is compatible with 48V low-voltage batteries and features a transformer isolation design for added safety and reliability. Asymmetrical Output Management: Capable of handling 100% asymmetrical output, where each phase can provide up to 50% of the rated power. This ensures stable performance even under uneven load conditions. Technical specifications Battery Compatibility: The inverters work efficiently with both lead-acid and lithium-ion batteries, adapting to a voltage range of 40 to 60 V, with a self-adaptive Battery Management System (BMS). PV Input Characteristics: They include multiple maximum power point (MPP) trackers and a flexible number of strings per MPP tracker, supporting a PV input power range of 6,500 W to 15,600 W, depending on the model. Efficiency Ratings: Maximum efficiency is an impressive 97.6%, with European efficiency of 97% and MPPT efficiency over 99%. This ensures maximum energy conversion and minimum losses. Comprehensive Protection: The inverters are equipped with many safety features including DC reverse polarity protection, AC output overcurrent and overvoltage protection, AC output short circuit protection, thermal protection and extensive monitoring capabilities. Environmental and physical specifications Operating Temperature: The inverters can operate in temperatures ranging from -40°C to +60°C, with derating above 45°C. They also support a humidity range of 0 to 1,001 TP3T and are designed to operate at altitudes up to 2,000 meters. Noise and Ingress Protection: Noise levels are kept below 55 dB and they have an IP65 rating for outdoor use, ensuring their durability in various environmental conditions. Design and cooling: The inverters feature intelligent air cooling, compact dimensions (422 mm x 658 mm x 254 mm, excluding connectors and brackets) and a weight of 38 kg. Warranty and Compliance: They come with a standard 5-year warranty, extendable up to 10 years depending on the installation site, and comply with various international network regulations and safety standards. Communication and monitoring Interfaces and Monitoring Options: These inverters offer multiple communication options including GPRS, WIFI, Bluetooth, 4G and LAN (optional). They also include RS485, RS232 and CAN interfaces to ensure seamless integration and monitoring. Click on the icons to download the following files: Technical sheet

Read more less

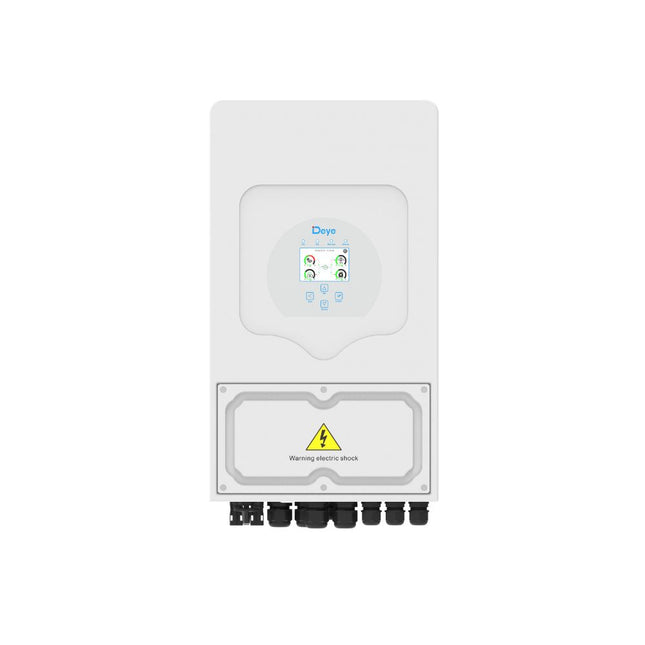

The Deye SUN-5K-SG03LP1 series is a versatile and robust single-phase hybrid inverter, optimized for energy management in residential and commercial applications. Designed to support a wide range of features, this series ensures seamless integration with existing solar systems and provides a scalable energy solution with a host of advanced features. Main features 1. High charge/discharge current : The SUN-5K-SG03LP1 series supports a maximum charge and discharge current of 135A, facilitating fast and efficient battery cycling. This means your energy storage system can quickly adapt to fluctuations in energy demand and supply. 2. Diesel Generator Compatibility : This series is designed to store energy from diesel generators, making it particularly useful in off-grid settings where reliable power sources may vary. This compatibility enhances the inverter's versatility in hybrid energy systems. 3. Parallel Operation : Up to 16 units of these inverters can be connected in parallel, allowing for both on-grid and off-grid operations. This feature provides scalability and flexibility, accommodating larger installations and future expansions without significant reconfiguration. 4. Multiple Battery Compatibility : Inverters support parallel connection of multiple batteries, meeting increased energy storage needs. This is particularly useful in scenarios where energy storage capacity needs to be increased over time. 5. AC Coupling : AC coupling allows for easy retrofitting of existing solar systems, making upgrades both seamless and cost-effective. This ensures that older systems can benefit from the latest technologies without the need for complete overhauls. 6. Advanced Load Management : The inverter supports up to 6 time periods for battery charging and discharging. This allows users to optimize energy consumption based on time-of-use rates, thereby reducing energy costs. 7. User-friendly Interface : Equipped with a colorful touch LCD display, the inverter allows for intuitive interaction and monitoring. In addition, its IP65 protection rating ensures its durability in various environments, adding to its reliability. Technical specifications Battery Input Data : Battery Type: Lead-Acid or Lithium-Ion Voltage range: 40-60V Max. charge/discharge current: 135 A PV String Input Data : Max. Photovoltaic input power: up to 7,800 W Max. Photovoltaic input voltage: 500 V Starting voltage: 125 V Nominal PV input voltage: 370 V MPPT voltage range: 150-425V AC Input/Output Data : Rated input/output power: up to 6000 W Max. Apparent AC Input/Output Power: 6600 VA Rated AC input/output current: up to 27.3 A Max. Continuous AC pass (network to load): 35/40 A Peak power (off-grid): 2 times rated power for 10 seconds Power factor adjustment range: 0.8 leading to 0.8 lagging Efficiency : Max. Efficiency: 97.6% European efficiency: 96.5% MPPT efficiency: > 99% Harmonic distortion and injection : Total harmonic distortion of current (THDi): <3% of rated power DC injection current: <0.5% of nominal current Protection and standards The Deye SUN-5K-SG03LP1 series is equipped with a full suite of protection mechanisms, including DC polarity reverse connection protection, overcurrent protection, overvoltage protection, short circuit protection and thermal protection. It meets international standards such as IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99 and VDE-AR-N 4105. Design and installation : With an operating temperature range of -40 to +60°C (with derating above 45°C), IP65 rating and intelligent air cooling, this inverter is built to last. Its compact and lightweight design (330×580×232 mm, 25 kg) simplifies installation and maximizes flexibility. Communication : Monitoring options include GPRS, WIFI, Bluetooth, 4G and LAN (optional), and the supported communication interfaces are RS485, RS232 and CAN. Warranty and Support : The inverters come with a standard 5-year warranty, extendable to 10 years depending on the installation site and detailed warranty policy. This powerful and adaptable hybrid inverter is ideal for modern energy systems, delivering high performance, efficiency and reliability for sustainable energy solutions. Click on the icons to download the following files: Technical sheet

Read more less

The SUN-M60/80/100G4-EU-Q0 series microinverter is a cutting-edge solution designed for efficient and reliable performance in photovoltaic (PV) systems. Featuring dual maximum power point (MPP) trackers, module-level monitoring, and an IP67 rating, this microinverter series ensures superior power conversion and durability for a range of solar power applications. Main features Dual MPPT : Equipped with two MPP trackers per module, maximizing energy harvest by optimizing the power conversion of each PV module. Rugged Protection : IP67 rating ensures dust and water resistance, improving the longevity and reliability of the inverter in various environments. Wi-Fi Integration : Built-in Wi-Fi makes it easy to monitor and manage the system in real time through an intuitive interface. Quick Stop Function : Improves safety by complying with DIN VDE V 0126-95, ensuring AC discharge in <100ms for quick stop. Ease of installation : Designed for quick-set balcony PV systems, simplifying the installation process and minimizing installation time. Extended Relay Life : External relay designed for low temperature operation, providing long life and easier maintenance. Long-term reliability : With a 25-year design life and a 15-year warranty, providing assurance of long-term operation and support. Technical specifications Model variations : SUN-M60G4-EU-Q0 SUN-M80G4-EU-Q0 SUN-M100G4-EU-Q0 PV Input : Max. Input Power: 210-420/560/700W (2pcs) Max. Input Voltage: 60V Starting voltage: 20 V MPPT voltage range: 25-55V Max. Operating PV Input Current: 13+13A Max. Input short circuit current: 19.5 + 19.5 A AC output : Nominal active power: 600-1000W Max. Apparent power: 600-1000VA Network connection: L/N/PE Rated output voltage: 220/230V (range: 0.85Un-1.1Un) Nominal output frequency: 50/60 Hz Power factor: 0.9 leading to 0.9 lagging Total harmonic distortion (THDi): <3% Max. Efficiency: 96.5% European efficiency: 96.0% MPPT efficiency: > 99% Max. Units per branch: up to 8 units Protective functions : DC polarity reverse connection protection AC output overcurrent protection AC output surge protection AC output short circuit protection Thermal protection DC Terminal Insulation Monitoring Power grid monitoring Protection of the islands Earth fault detection Overvoltage protection against load drops Environmental specifications : Operating temperature: -40 to +65°C (Derating above 45°C) Permissible ambient humidity: 0-100% Authorized altitude: 2000 m Noise level: ≤25dB Physical characteristics : Ingress Protection Rating: IP67 Cooling method: natural cooling. Dimensions: 280.5×190×40 mm (excluding connectors and brackets) Weight: 3 kg Certifications and standards : Network regulations: IEC 61727, IEC 62116, IEC 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105 Safety and EMC standards: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 Click on the icons to download the following files: Technical sheet

Read more less
