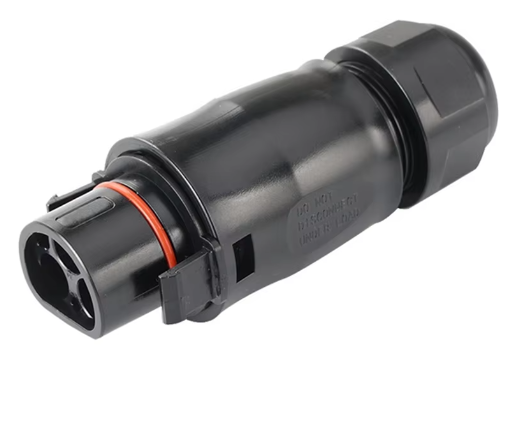

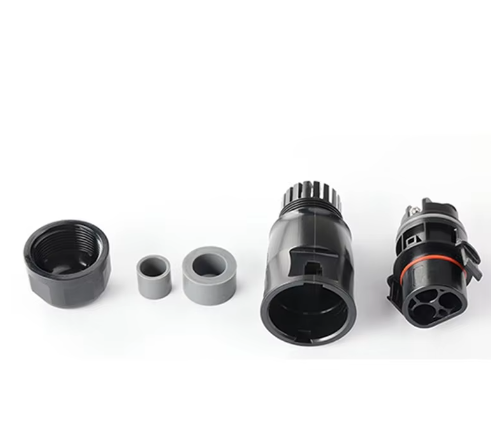

Product: 4000V 40A PV solar connector for solar panels Model: LY01-Male Type: 3-pin AC photovoltaic connector Configuration: LY01 wire end, 3 poles Screw crimping Cable compatibility: Outer diameter: 7.5-13 mm Specifications: 2.5/4.0 mm² or 14/12 AWG, three-conductor wire Application :Designed for the DEYE SUN micro-inverter series: SUN-M60G4-EU-Q0 SUN-M80G4-EU-Q0 SUN-M100G4-EU-Q0 SUN-M130G4-EU-Q0 SUN-M160G4-EU-Q0 SUN-M180G4-EU-Q0 SUN-M200G4-EU-Q0 SUN-M220G4-EU-Q0 SUN-M180G4-EU-Q0-P SUN-M200G4-EU-Q0-P Material: PPO Feature: IP68 waterproof, 6 round tube terminals, hex screws Installation style: Wire end Cross-section: 2.5 to 4 mm² Ambient temperature: -45 °C to 80 °C Power frequency voltage: 4000V AC Protection class: IP68 Number of cores: 3P Mounting type: Screw connection IP rating: IP68 Rated current: 40A Rated voltage: 690V Wire outer diameter: 13 mm Color: Black Material: PPO Dimensions: 8 x 8 x 4 cm Package contents: 1 x LY01-Male connector 3 x black power terminals 3 x red power terminals 1 x 6-angle inner wrench

Read more less

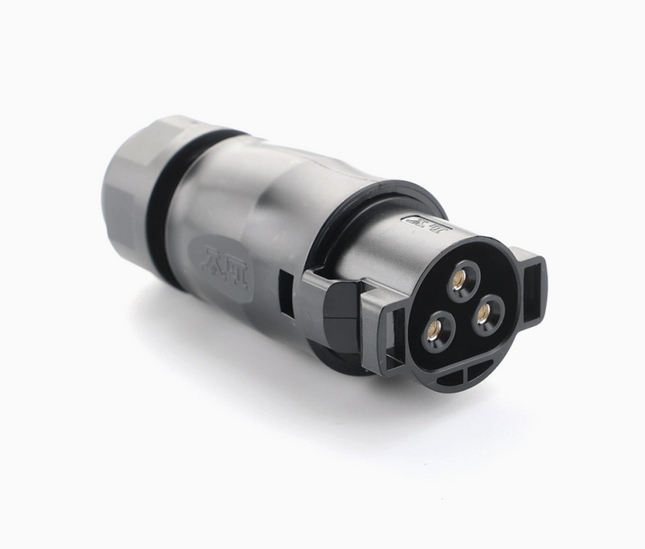

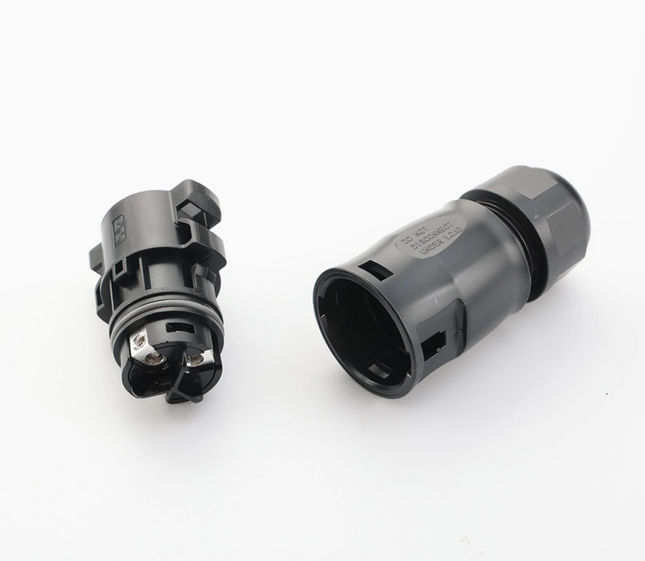

Model: LY01-Female Type: IP68 female connector for DEYE solar micro-inverter series: SUN-M60G4-EU-Q0 SUN-M80G4-EU-Q0 SUN-M100G4-EU-Q0 SUN-M130G4-EU-Q0 SUN-M160G4-EU-Q0 SUN-M180G4-EU-Q0 SUN-M200G4-EU-Q0 SUN-M220G4-EU-Q0 SUN-M180G4-EU-Q0-P SUN-M200G4-EU-Q0-P Material: PPO Feature: IP68 waterproof, 6 round tube terminals, hex screws Application: Designed for DEYE SUN-M8XG4-EU-Q0 and Q0-P series solar micro-inverters Certifications: RoHS approved.

Read more less

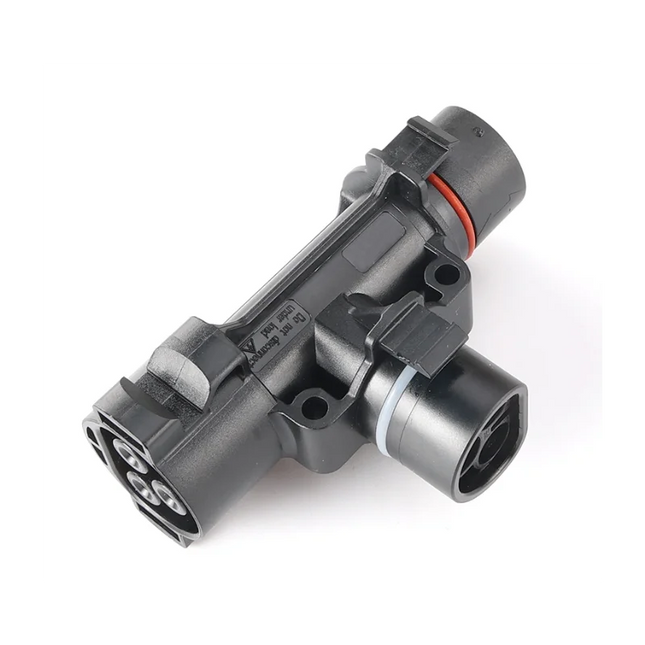

T-CONNECTOR for micro inverter The DEYE 3-pole T-CONNECTOR connects two micro-inverters in a photovoltaic installation. It ensures a stable, reliable and secure electrical connection, suitable for residential and professional solar systems. Thanks to its IP67 certification, this connector is completely waterproof and protected against dust. It perfectly withstands bad weather, ideal for outdoor installations exposed to sun and humidity. Compatible with 3G cables from 2.5 to 4 mm² (14/12 AWG), it accepts an outer diameter of 7.5 to 13 mm. This compatibility offers great installation flexibility and facilitates connection in different photovoltaic configurations. This compatibility offers great installation flexibility and facilitates connection in different photovoltaic configurations. This connector simplifies wiring between micro-inverters and reduces connection losses. It thus improves the overall performance of the solar system by ensuring clean and secure electrical distribution. H07RN-F cable is often used with this type of connection, as it is resistant to UV, humidity and outdoor conditions. Its flexibility facilitates installation, especially on roofs. It is suitable for the AC part of photovoltaic installations. The DEYE 3-pole T-CONNECTOR requires little maintenance. Regular checking of connections helps ensure long-lasting and reliable performance over time.

Read more less

Mechanical CharacteristicsMC4 Panel Mount Connectors (insulator included)Product No.:1526114Manufacturer Product No.:32.0078P0001-URCable cross-section: 4 to 6 mm² Current 4mm²: - 30A (2PFG2330: authorized only for restricted access sites) - 39A (rated current 85 °C (IEC)) Current 6mm²: - 30A (2PFG2330: authorized only for restricted access sites) - 45A (rated current 85 °C (IEC)) Rated voltage: (IEC) - 1000 V / 1250 VDC (in process)Item Details MC4 Female ADBP4-S2/6-UR Intrastat product number (HS-Code)    85359000 Intrastat country of origin    France Manufacturer item designation    PV-ADBP4-S2\/6-UR Manufacturer    Stäubli DimensionsWeight without packaging (kg)    0.010PackagingWeight including packaging (kg)    0.010Technical Data Protection Class IP65 DC Connector Type MC4 Click on the icons to download the following files:Datasheet (EN) Safety Data Sheets

Read more less

Mechanical characteristicsMC4 flush-mounted connectors (insulator included)Product number:1526113Manufacturer's product number:32.0079P0001-URCable cross-section: 4 to 6 mm² Current 4mm²: - 30A (2PFG2330: authorized only for restricted access sites) - 39A (rated current 85°C (IEC)) Current 6mm²: - 30A (2PFG2330: authorized only for restricted access sites) - 45A (rated current 85°C (IEC)) Rated voltage: (IEC) - 1000 V / 1250 VDC (in process)Item details Instrastat product number (HS-Code) 85359000 Intrastat country of origin France Manufacturer article designation PV-ADSP4-S2/6-UR Manufacturer Stäubli DimensionsWeight without packaging (kg) 0.010PackagingWeight incl. packaging (kg) 0.010Technical data Protection class IP65 DC connector type MC4 Click on the icons below to download the following files:Datasheet (EN) Safety Data Sheets

Read more less

Mechanical characteristics M (+) / Core Ø 4-6mm² / Sheath Ø 5.5-7.4mmProduct no.: 1553199Manufacturer's product no.: 32.0142P0100-UR Connector: PV-KBT4/6X-UR - 32.0142P0100-UR Includes crimp connectors Item details Intrastat product number (HS-Code) 85359000 Intrastat country of origin France Manufacturer Stäubli Manufacturer's article designation PV-KBT4/6X-UR Dimensions Weight without packaging (kg) 0.010 Packaging Quantity per master carton 1000 Quantity per bag 100 Weight including packaging (kg) 0.010   Click on the icons to download the following files: Datasheet (EN) User Guide Mounting Instructions Datasheet (FR)

Read more less

Mechanical characteristics M (-) / core Ø 4-6mm² / sheath Ø 5.5-7.4mmProduct no: 1553193Manufacturer product no: 32.0143P0100-UR Connector: PV-KST4/6X-UR - 32.0143P0100-UR Includes crimp terminals Article details Instrastat product number (HS-Code) 85359000 Intrastat country of origin France Manufacturer Stäubli Manufacturer article designation PV-KST4/6X-UR Dimensions Weight without packaging (kg) 0.010 Packaging Quantity per large box 1000 Quantity per bag 100 Weight including packaging (kg) 0.010 Click on the icons to download the following files: Datasheet (EN) User Guide Mounting Instructions Datasheet (FR)

Read more less

Mechanical characteristics Connector (+) cable Ø 4-6mm², insulation 4.7-6.4mm Product No.: 1555718 Manufacturer's product No. 32.0316P0001 Item details Intrastat country of origin    Germany Intrastat product number (HS-Code)    85359000 Manufacturer's item designation    Female cable coupler MC4-Evo 2A Manufacturer    Stäubli Dimensions Weight without packaging (kg)    0.010 Packaging Weight including packaging (kg)    0.010 Technical data Protection class IP65 DC connector type MC4 Evo 2A   Click on the icons to download the following files: Datasheet (EN)

Read more less

Mechanical characteristics M (-) / Ø core 4-6mm² / Ø sheath 5.4-7.6mmProduct no.: 1556598Manufacturer product no. 32.0029 -The connector is locked using the key kit: SET PV-MS-MC4-EVO-READY (item 1556596) The stripped end of the cable is inserted directly into the connector and snaps in, without any tools. The assembly key is only recommended for tightening the cable gland. The MC4-Evo Ready is compatible with all connectors in the MC4 family. Product advantages: Tool-free assembly Compatible with all connectors in the MC4 family Product features: Cable fastening: Spring clamp, tool-free Cable cross-section: 4 - 6 mm² Cable outer diameter: 5.4 - 7.6 mm Rated voltage: 1500 V Rated current: 30 A Protection class (mated): IP65 Item details Instrastat product number (HS-Code) 85359000 Intrastat country of origin Romania Manufacturer's article designation Male cable coupler MC4-Evo ready Manufacturer Stäubli Dimensions Width without packaging (mm) 21.00 Height without packaging (mm) 21.00 Weight without packaging (kg) 0.016 Length without packaging (mm) 95.00 Packaging Weight including packaging (kg) 0.016 Quantity per large box 200 Quantity per bag 10 Technical data Protection class IP65   Click on the icons to download the following files: Datasheet (EN) Mounting instructions

Read more less

Mechanical characteristics F (+) / Core Ø 4-6mm² / Sheath Ø 5.4-7.6mmProduct no.: 1556597Manufacturer's product no. 32.0030 - The connector is locked using the key set: SET PV-MS-MC4-EVO-READY (item 1556596) The stripped cable end is inserted directly into the connector and snaps in, without any tools. The assembly wrench is only recommended for tightening the cable gland. The MC4-Evo Ready is compatible with all connectors in the MC4 family. Product advantages: Tool-free assembly Compatible with all connectors in the MC4 family Product features: Cable attachment: Spring clamp, tool-free Cable cross-section: 4 - 6 mm² Cable outer diameter: 5.4 - 7.6 mm Rated voltage: 1500 V Rated current: 30 A Protection class (mated): IP65 Article details Instrastat product number (HS-Code)    85359000 Intrastat country of origin    Romania Manufacturer's article designation    Female cable coupler MC4-Evo ready Manufacturer    Stäubli Dimensions Width without packaging (mm)    21.00 Height without packaging (mm)    21.00 Weight without packaging (kg)    0.019 Length without packaging (mm)    91.00 Packaging Weight incl. packaging (kg)    0.019 Quantity per large box    200 Quantity per bag    10 Technical data Protection class IP65   Click on the icons to download the following files: Datasheet (EN) Mounting Instructions

Read more less

Mechanical characteristics Connector (-) cable Ø 4-6mm², sheath 4.7-6.4mm Product No.: 1555726 Manufacturer product no. 32.0317P0001 Article details Intrastat country of origin Germany Intrastat product number (HS-Code) 85359000 Manufacturer article description Male cable coupler MC4-Evo 2A Manufacturer Stäubli Dimensions Weight without packaging (kg) 0.010 Packaging Weight incl. packaging (kg) 0.010 Technical data Protection class IP65 DC connector type MC4 Evo 2A   Click on the icons to download the following files: Datasheet (EN)

Read more less

Mechanical characteristicsProduct No.: 1553065Manufacturer's product no.: 32.6126Multi-Contact MC4 EVO2 Tool KitTool kit contents: Female connector plugs, 10 × Male connector plugs, 10 × MC4 test plug MC4 EVO2 test plug MC4 EVO2 unlocking tool Cable cutter Torque wrench Crimping tool for MC4 and MC4 EVO2, 4 / 6 / 10 mm² MC4 contact positioner MC4 EVO2 contact positioner Wire stripper 4 / 6 / 10 mm² Tightening and unlocking wrench set Article details Intrastat country of origin Germany Intrastat product number (HS-Code) 82060000 Manufacturer Stäubli Manufacturer's article designation Tool case MC4 and MC4-Evo 2 Dimensions Length without packaging (mm) 444.00 Weight without packaging (kg) 4.400 Height without packaging (mm) 350.00 Width without packaging (mm) 118.00 PackagingWeight incl. packaging (kg) 4.400

Read more less

Enphase Q-Cable three-phase female connector Q-CONN-3P-10F The Enphase Q-CONN-3P-10F female connector is designed for connecting the Enphase three-phase Q-Cable in photovoltaic installations. This connector accepts flexible or rigid stranded cables thanks to its screw cage connection system. Depending on the installation configuration, a suitable junction box may also be used on the roof. Technical specifications Feature Value Manufacturer Enphase Manufacturer reference Q-CONN-3P-10F Product No. 1542052 Current type AC Rated current 25 A Rated voltage 690 V Cable core cross-section 6 mm² Outer cable diameter 21 mm Width 107 mm Length 38 mm Height 38 mm Product information Manufacturer: Enphase Manufacturer reference: Q-CONN-3P-10F Product No.: 1542052 Country of origin: China HS / Intrastat code: 85472000 Weight including packaging: 0.050 kg Compatibility and connection The Enphase Q-CONN-3P-10F female connector is intended for connecting the Enphase three-phase Q-Cable. It is suitable for flexible or rigid stranded cables and allows for a screw cage connection. For installation, follow the Enphase manufacturer's instructions and recommendations as well as applicable electrical regulations. Warranty Enphase manufacturer warranty. The duration and conditions of the warranty are as defined by the manufacturer. Click on the icons below to download the following files: Datasheet (EN) User Manual Datasheet (FR) Declaration of Conformity (EN) Declaration of Conformity (FR)

Read more less

Connector designed for flexible or rigid stranded cable (screw cage). Enphase Q-CONN-3P-10M three-phase Q-Cable male connector The Enphase Q-CONN-3P-10M male connector is designed for connecting the Enphase three-phase Q-Cable in photovoltaic installations. This connector is suitable for flexible or rigid stranded cables thanks to its screw cage connection system. Depending on the installation configuration, a suitable junction box may also be used on the roof. Technical specifications Characteristic Value Manufacturer Enphase Manufacturer reference Q-CONN-3P-10M Product No. 1542053 Current type AC Rated current 25 A Rated voltage 690 V Cable core cross-section 6 mm² Outer cable diameter 21 mm Length 38 mm Width 109 mm Height 38 mm Product information Manufacturer: Enphase Manufacturer reference: Q-CONN-3P-10M Product No.: 1542053 Country of origin: China HS / Intrastat code: 85472000 Weight including packaging: 0.050 kg Compatibility and connection The Enphase Q-CONN-3P-10M male connector is intended for connecting the Enphase three-phase Q-Cable. It is designed for flexible or rigid stranded cables and features a screw cage connection. A suitable junction box may also be used on the roof depending on the installation configuration. For installation and connection, follow the manufacturer's instructions and recommendations as well as applicable electrical standards and rules. Warranty Enphase manufacturer warranty. The duration and terms of the warranty are as defined by the manufacturer. Click the icons below to download the following files: Technical datasheet (EN) User guide Technical datasheet (FR) Declaration of compatibility (EN) Declaration of compatibility (FR)

Read more less

2m 2.5mm² single-phase AC cable Mechanical characteristics Product No.: 1529603Manufacturer product no. 2322304903 Cable (2.5mm², H07RN-F, 2m, BN-BU-YL/GN) 2322304903 - Y3 cable (Ph/N +PE) 2322304703 - Y2 cable (Ph/N) Article details AC Cable Y3 Intrastat country of origin    China Manufacturer    APsystems Manufacturer article designation    Y3 Bus Cable Intrastat product number (HS-Code)    85444290 Cable length (cm)    200.00 Packaging Weight incl. packaging (kg)    1 Dimensions Weight excluding packaging (kg)    0.75 The Y3 AC Bus cable for DS3 – 2 m is designed to ensure a reliable and secure connection in solar systems. Made with resistant materials and compliant with quality standards, it guarantees excellent durability and optimal performance. Ideal for demanding photovoltaic installations, this cable is a safe choice for stable and efficient energy transmission.

Read more less

Mechanical characteristics 4m single-phase AC cable 2.5mm²Product number: 1530446Manufacturer product number 2322404903 Cable (2.5mm², H07RN-F, 4m, BN-BU-YL/GN) Article details Intrastat country of origin China Manufacturer APsystems Manufacturer item designation Y3 Bus Cable Intrastat product number (HS-Code) 85444290 Packaging Weight including packaging (kg) 0.980

Read more less

Mechanical specifications AC female connector (3-wire, two seals, 25A) for microinverterFor cable diameter 13mm (2.5mm²) or 17mm (4mm²) Product no.: 1554426Manufacturer product no. 2300932212 Item details AC female connector Intrastat country of origin: China Manufacturer: APsystems Manufacturer item designation: AC female connector Intrastat product number (HS-Code): 85369010 Dimensions Weight without packaging (kg) 0.15 Packaging Weight incl. packaging (kg) 0.25 APsystems connector designed for EZ1, DS3, and YC600 microinverters, enabling a secure and reliable AC cable connection in photovoltaic systems.

Read more less

AC male connector (3-wire, two seals, 25A)For cable diameter 13mm (2.5mm²) or 17mm (4mm²) Mechanical characteristics Product no.: 1554427Manufacturer product no. 2300931212 Item details: AC male connector Intrastat country of origin China Manufacturer APsystems Manufacturer item designation AC male connector Intrastat product number (HS-Code) 85369010 Dimensions Weight without packaging (kg) 0.15 Packaging Weight incl. packaging (kg) 0.2 The APsystems AC male connector for DS3 is designed for a secure and high-performance electrical connection in photovoltaic systems. Compatible with 2.5 mm² to 4 mm² cables, it offers great installation flexibility. Its robust design, with a double seal, ensures excellent sealing and optimal resistance to outdoor conditions. Ideal for demanding solar installations, this connector provides reliability, durability, and safety for daily use.

Read more less

Mechanical characteristicsM (-) / Core Ø 4-6mm² / Sheath Ø 5-6mm MC4 Male connectorProduct number: 1510328Manufacturer product number 32.0015P0001-URIncludes crimp terminalsArticle details Intrastat country of origin Germany Manufacturer Stäubli Manufacturer article designation PV-KST4/6I-UR Intrastat product number (HS-Code) 85369010 DimensionsWeight without packaging (kg) 0.010PackagingWeight including packaging (kg) 0.010Click on the icons to download the following files:Datasheet (EN)

Read more less

Mechanical characteristicsF (+) / Core Ø 4-6mm² / Sheath Ø 5-6mm MC4 Female Connector KBT4/6I-URProduct no.: 1510329Manufacturer product no.: 32.0014P0001-URIncludes crimp terminalsItem details Intrastat country of origin Germany Manufacturer Stäubli Manufacturer's item designation PV-KBT4/6I-UR Intrastat product number (HS-Code) 85369010 DimensionsWeight without packaging (kg) 0.010PackagingWeight including packaging (kg) 0.010Click on the icons to download the following files:Datasheet (EN)
