Description
- Dual MPPT charge controller 26A / 20A
- MPPT input voltage from PV: 200 to 850 Vdc (startup at 180 Vdc)
- AC output power: 15000 W
- Operates in on-grid and off-grid mode
- Manufacturer reference: SUN-15K-SG04LP3-EU
- Compatible with lithium batteries:
-
DEYE: BOS-A 7.68 kWh - High Voltage Series
-
Pylontech: HM5A180F - High Voltage Series.
-
WECO : 16K0 HV - High Voltage Series.
- Integrated galvanic isolation – no TYPE B cabinet required
Key features:
-
Weight: 80 kg
-
Dimensions: 53 x 90 x 30 mm (excluding connectors and brackets)
-
Connection: RS232, RS485, WiFi
-
Maximum DC charging current: 37A
-
Parallel function: Yes
-
Grid injection: Yes
-
Power: 15 kW
-
Maximum PV power: 19500 W
-
PV Max VOC: 1000 VDC
-
MPPT Voltage: 150-850 VDC
-
Type: Hybrid, Three-phase
-
Battery voltage: 160-700 V
-
Accepted accumulators: Lithium,
-
- High charge/discharge efficiency:
-
High charge/discharge efficiency:
- Deye SUN series inverters offer a maximum charge/discharge current of 50A, allowing for fast and efficient energy storage and retrieval. This feature helps users get the most out of their solar power systems by effectively managing energy storage.
-
Diesel generator support:
- Another remarkable capability is the support for energy storage from diesel generators. This feature provides a versatile backup power option, ensuring that surplus energy generated from diesel can be efficiently saved and managed.
-
Parallel operation:
- The inverters support parallel operations, allowing the connection of up to 10 units. This scalability is crucial for expanding power systems in both grid-tied and off-grid applications, meeting increasing energy demand.
-
Optimal battery compatibility:
- Designed for high-voltage lithium-ion batteries, Deye SUN inverters support a voltage range of 160-700V. This wide compatibility range ensures higher efficiency and allows the system to adapt to different battery specifications.
-
AC coupling for modernization applications:
- Designed with flexibility in mind, these inverters can be AC-coupled to modernize existing solar systems. This capability offers a seamless upgrade path for systems looking to enhance their solar energy installations with hybrid inverter technology.
-
Advanced energy management:
- The inverter series features the ability to set up to 6 different periods for battery charging and discharging. This advanced feature allows for optimal energy utilization based on specific demands and energy availability, providing savings and increased efficiency.
Technical highlights
Battery Input:
-
Type: Lithium-ion
-
Voltage Range: 160-700V
-
Max. Charge/Discharge Current: 50A
PV String Input:
-
Max. PV Input Power: Up to 32,500W
-
Max. PV Input Voltage: 1000V
-
MPPT Voltage Range: 150-850V
AC Input/Output:
-
Rated Power: 5000W to 25000W
-
Apparent Power: Up to 27,500 VA
-
Voltage Range: 220/380V, 230/400V
-
Frequency Range: 50/60 Hz
Efficiency:
-
Max. Efficiency: 97.6%
-
European Efficiency: 97.0%
-
MPPT Efficiency: >99%
Protection Features:
- Includes integrated protections such as DC reverse polarity connection, AC overcurrent, AC overvoltage, short circuits, thermal protection, etc.
Environmental and Safety Standards:
-
Temperature Range: -40 to +60°C
-
Ingress Protection Rating: IP65
-
Altitude: 0-2000m
Compliance:
- Complies with IEC/EN standards, including 61000-6-1/2/3/4 and 62109-1/2.
Monitoring and Communication:
-
Optional Monitoring: GPRS, WIFI, Bluetooth, 4G, LAN
-
Interfaces: RS485, RS232, CAN
GENERAL Data:
-
Dimensions: 408x638x237mm (excluding connectors and brackets)
-
Weight: 30.5kg
-
Cooling: Natural cooling/smart air cooling
-
Warranty: 5 years as standard, 10 years optional depending on installation site

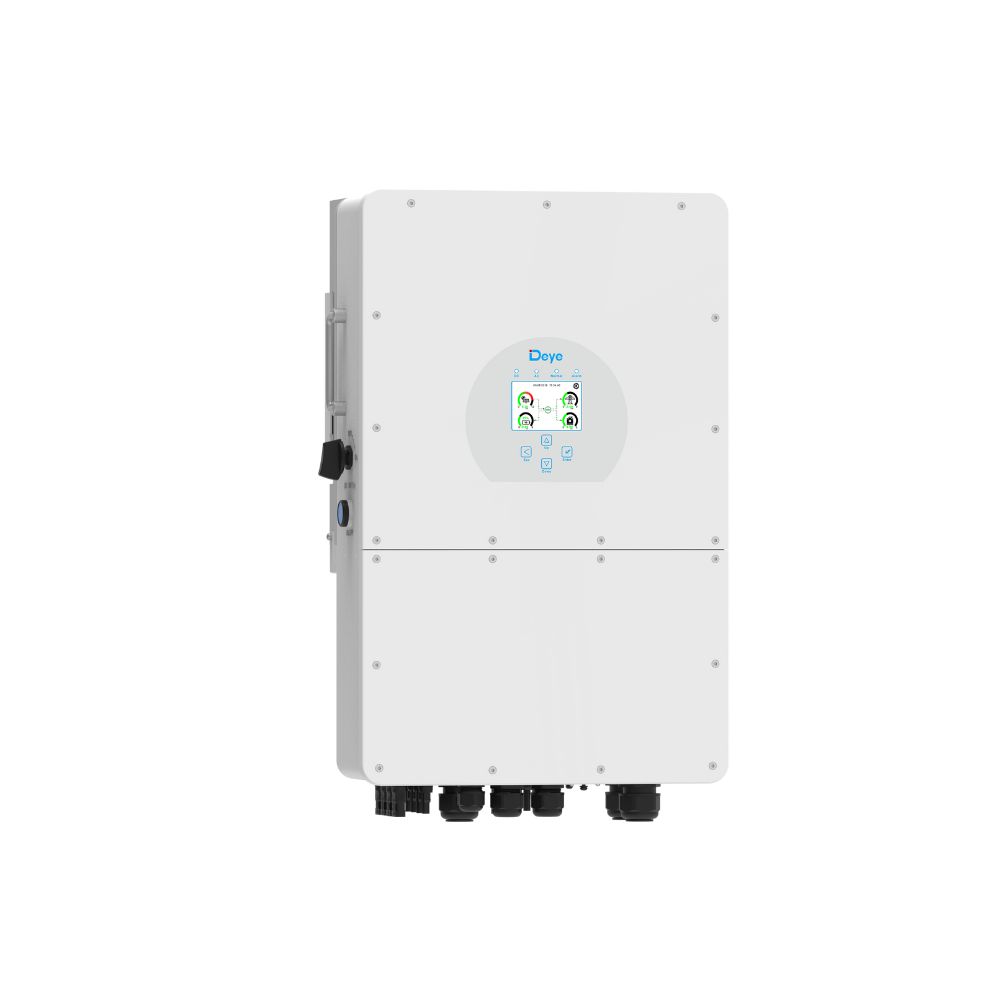

Deye SUN-(5-25)K-SG01HP3-EU three-phase hybrid inverters are a robust, efficient, and versatile solution designed to meet the evolving demands of modern solar power systems.
The combination of advanced features, high efficiency, and scalability makes them an exceptional choice for maximizing solar energy utilization and enhancing overall system performance.
Click on the icons to download the following files:
