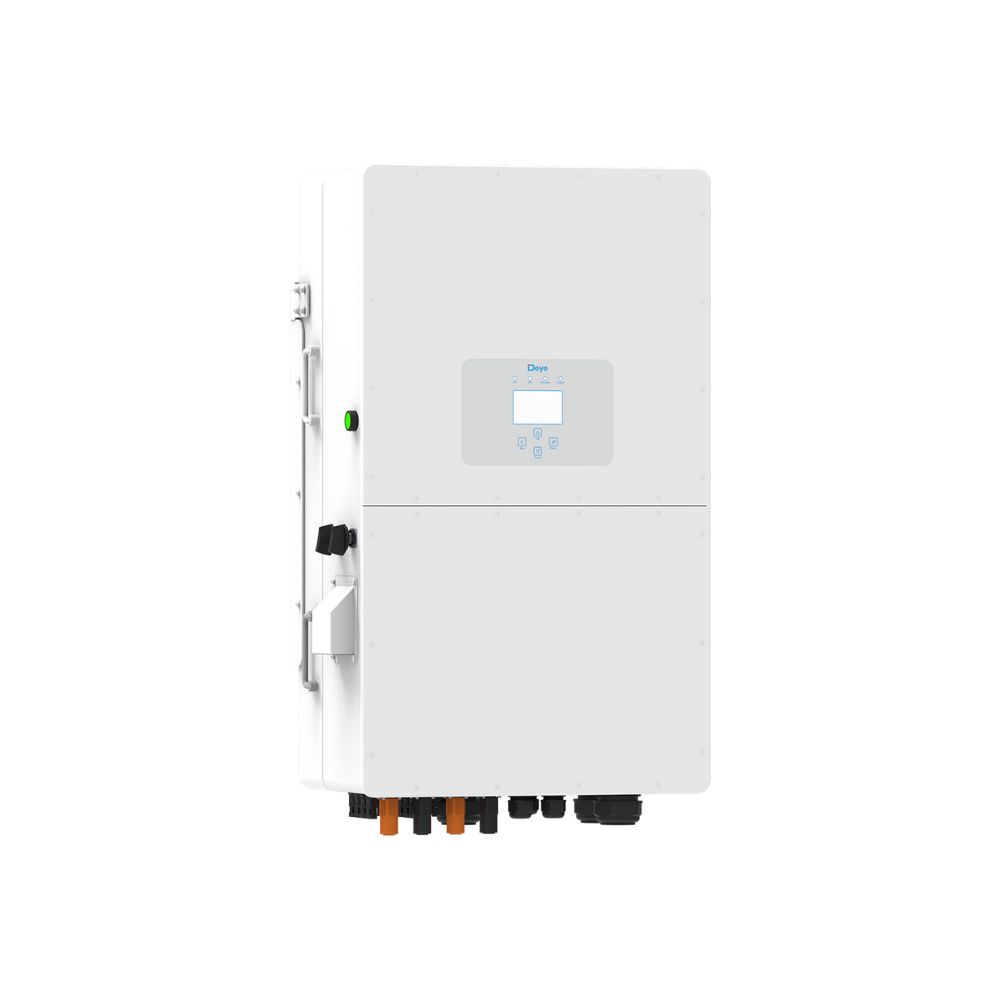

Description
Deye's series of three-phase hybrid inverters are designed for robust performance and efficient energy management in both residential and commercial environments. With a focus on high efficiency, seamless integration, and advanced protection features, these inverters offer a versatile solution for modern energy needs.
Description:
-
Weight: 80 kg
-
Dimensions: 53 x 90 x 30 mm (excluding connectors and brackets)
-
Connection: RS232, RS485, WiFi
-
Maximum DC charging current: 50A+50A
-
Parallel function: Yes
-
Grid injection: Yes
-
Power: 50 kW
-
Maximum PV power: 65000 W
-
PV Max VOC: 1000 VDC
-
MPPT Voltage: 150-850 VDC
-
Type: Hybrid, Three-phase
-
Battery voltage: 160-800 V
-
Accepted batteries: Lithium,
Models
- SUN-29.9K-SG01HP3-EU-BM3
- SUN-30K-SG01HP3-EU-BM3
- SUN-35K-SG01HP3-EU-BM3
- SUN-40K-SG01HP3-EU-BM4
- SUN-50K-SG01HP3-EU-BM4
Key Features
-
High Charge/Discharge Current: Supports a maximum charge and discharge current of 100A, ensuring flexibility in managing energy storage needs.
-
Energy Storage Compatibility: Capable of storing energy from diesel generators, making it suitable for regions with unstable power supply.
-
Parallel Operation: Supports up to 10 units in parallel for both on-grid and off-grid scenarios, providing scalable energy solutions for larger installations.
-
Multi-Battery Compatibility: Supports multiple batteries in parallel, catering to higher energy storage demands.
-
AC Coupling: Perfect for retrofitting existing solar systems, allowing seamless integration without significant overhauls.
-
Configurable Time Periods: Up to 6 time periods can be set for battery charging and discharging, enabling efficient energy usage tailored to specific needs.
-
High Efficiency: Utilizes high-voltage batteries, ensuring greater operational efficiency and more effective energy storage.
-
100% Unbalanced Output: Each phase supports 100% unbalanced output, enhancing power flexibility and reliability.
Electrical Characteristics
The inverters are designed to handle a range of electrical inputs and outputs, suitable for various applications:
-
AC Input/Output Rated Active Power:
- SUN-29.9K: 29.9 kW
- SUN-30K: 30 kW
- SUN-35K: 35 kW
- SUN-40K: 40 kW
- SUN-50K: 50 kW
-
Battery Inputs:
-
Type: Lithium-ion
-
Voltage Range: 160-800V
-
Maximum Charge/Discharge Current: 100A (split into two 50A each)
-
Number of Battery Inputs: 2
-
PV String Input Data:
-
Maximum PV Input Power:
- SUN-29.9K: 38,870 W
- SUN-30K: 39,000 W
- SUN-35K: 45,500 W
- SUN-40K: 52,000 W
- SUN-50K: 65,000 W
-
Maximum PV Input Voltage: 1000V
-
Start-up Voltage: 180V
-
MPPT Voltage Range: 150-850V
-
Number of MPP Trackers: 3 or 4, depending on model
Operational Features
Deye inverters offer high efficiency ratings and advanced protection functionalities:
-
Efficiency Ratings:
-
Max. Efficiency: 97.6%
-
Euro Efficiency: 97%
-
MPPT Efficiency: >99%
-
Comprehensive Protection:
- Integrated DC reverse polarity connection protection
- AC output overcurrent/overvoltage/short-circuit protection
- Ground fault current monitoring
- Surge protection (Type II for DC and AC)
- Islanding protection and thermal protection
Environmental and Safety Compliance
-
Operating Temperature Range: -40 to +60°C (with derating above 45°C)
-
Ingress Protection Rating: IP65
-
Noise Level: ≤65dB
-
Allowed Altitude: Up to 2000 meters
-
Cooling Mechanism: Smart air cooling
Physical Characteristics
-
Dimensions: 527 x 894 x 294 mm (excluding connectors and brackets)
-
Weight: 80 kg
Communication and Monitoring
-
Monitoring Modes: GPRS, WIFI, Bluetooth, 4G, LAN (optional)
-
Communication Interfaces: RS485, RS232, CAN
Compliance and Warranty
-
Grid Regulation: Compliant with IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105.
-
Safety Standards: Compliant with IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1/2.
-
Warranty: Standard 5 years, extendable to 10 years depending on the installation site.
