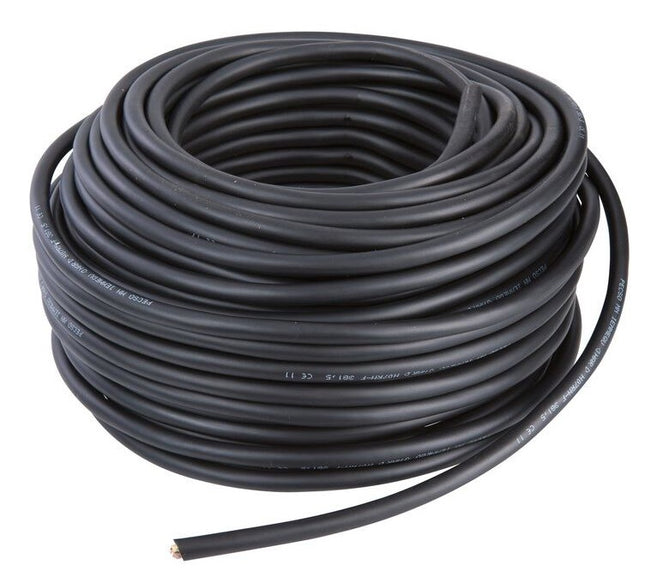

NATIONAL STANDARDS NF C32-102-4 Use H07RN-F flexible industrial cables are particularly designed for the power supply of mobile machines, electrical tools, building sites. Use up to 0.6/1 kV is permitted in the case of protected fixed installations and for the power supply of motors of lifting devices and similar devices. These cables can be used in refrigeration installations. Laid Cable designed to operate in the open air. If it is buried, provide mechanical protection (gutter, channel, etc.). Dimensional characteristics Conductor section: 6 mm² Number of drivers: 3 Max. outer diameter: 18.0 mm Minimum outer diameter: 14.1 mm Approximate mass: 346 kg/km Electrical characteristics Single-phase voltage drop: 7.0 V/A.km Admissible current in open air: 56 A Phase reactance at 50 Hz – cloverleaf installation: – Ohm/km Max. linear resistance of phase conductor core: 3.3 Ohm/km Rated operating voltage Uo/U (Um): 450 / 750 V Mechanical characteristics Mechanical resistance to shocks: Very good Cable flexibility: Flexible

Read more less

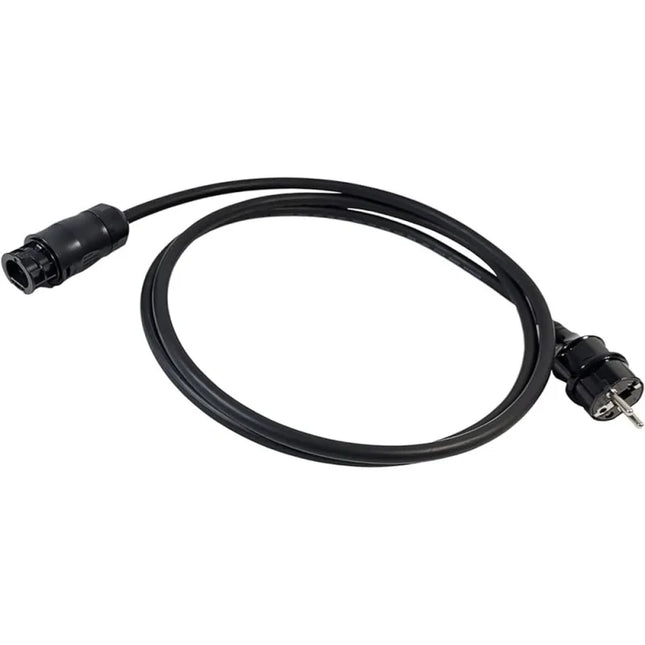

- Product: DEYE Plug and Play Cable- Length: 5 meters- Cross-section: 1.5 mm²- Usage: Connecting DEYE micro-inverters to a standard electrical outlet- Design: Plug and Play, for quick and easy installation- Manufacturer: DEYE- Quality: Guaranteed superior durability and reliability- Flexibility: 5-meter length for optimal placement- Adaptation: Ideal for residential and commercial solar systems- Advantages: Practical solution, easy to install, secure and efficient connection

Read more less

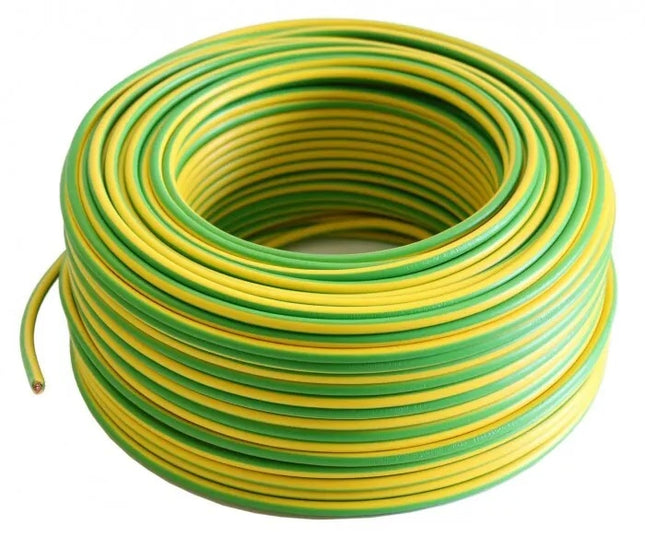

Flexible 2electric wire H07VK 1X6 GREEN/YELLOW Flexible, unsheathed, PVC insulated conductors for general use. The conductors H07V-K are particularly intended for wiring panels and cabinets. Use Nexans H07V-K conductors are particularly intended for the wiring of tables and cabinets. Laid Open air, on insulator, or under conduit: ducts, chutes, etc. For insulated conductors laid in a conduit in visible mounting or embedded in a wall for an ambient temperature of 30°C in the air in steady state. If the conditions are different, the correction factors of the NF C standard 15-100 or local country standard apply. Voltage drop Calculated with Cos phi = 0.8 Information and guides

Read more less

Flexible 2electric wire H07VK 1X6 GREEN/YELLOW Flexible, unsheathed, PVC insulated conductors for general use. The conductors H07V-K are particularly intended for wiring panels and cabinets. Use Nexans H07V-K conductors are particularly intended for the wiring of tables and cabinets. Laid Open air, on insulator, or under conduit: ducts, chutes, etc. For insulated conductors laid in a conduit in visible mounting or embedded in a wall for an ambient temperature of 30°C in the air in steady state. If the conditions are different, the correction factors of the NF C standard 15-100 or local country standard apply. Voltage drop Calculated with Cos phi = 0.8 Information and guides

Read more less

Flexible 2electric wire H07VK 1X6 GREEN/YELLOW Flexible, unsheathed, PVC insulated conductors for general use. The conductors H07V-K are particularly intended for wiring panels and cabinets. Use Nexans H07V-K conductors are particularly intended for the wiring of tables and cabinets. Laid Open air, on insulator, or under conduit: ducts, chutes, etc. For insulated conductors laid in a conduit in visible mounting or embedded in a wall for an ambient temperature of 30°C in the air in steady state. If the conditions are different, the correction factors of the NF C standard 15-100 or local country standard apply. Voltage drop Calculated with Cos phi = 0.8 Information and guides

Read more less

Flexible 2electric wire H07VK 1X6 GREEN/YELLOW Flexible, unsheathed, PVC insulated conductors for general use. The conductors H07V-K are particularly intended for wiring panels and cabinets. Use Nexans H07V-K conductors are particularly intended for the wiring of tables and cabinets. Laid Open air, on insulator, or under conduit: ducts, chutes, etc. For insulated conductors laid in a conduit in visible mounting or embedded in a wall for an ambient temperature of 30°C in the air in steady state. If the conditions are different, the correction factors of the NF C standard 15-100 or local country standard apply. Voltage drop Calculated with Cos phi = 0.8 Information and guides

Read more less

Nexans Ref.: 10056120 NATIONAL STANDARDS NF C32-102-4 Use H07RN-F flexible industrial cables are particularly designed for the power supply of mobile machines, electrical tools, building sites. Use up to 0.6/1 kV is permitted in the case of protected fixed installations and for the power supply of motors of lifting devices and similar devices. These cables can be used in refrigeration installations. Laid Cable designed to operate in the open air. If it is buried, provide mechanical protection (gutter, channel, etc.) Dimensional characteristics Driver section: 4 mm² Number of drivers: 3 Max. outer diameter: 16.2 mm Minimum outer diameter: 12.7 mm Approximate mass: 290 kg/km Electrical characteristics Single-phase voltage drop: 10.1 V/A.km Admissible current in open air: 43 A Phase reactance at 50 Hz – cloverleaf installation: – Ohm/km Max. linear resistance of phase conductor core: 4.95 Ohm/km Rated operating voltage Uo/U (Um): 450 / 750 V Mechanical characteristics Mechanical resistance to shocks: Very good Cable flexibility: Flexible

Read more less

NATIONAL STANDARDS NF C32-102-4 Use H07RN-F flexible industrial cables are particularly designed for the power supply of mobile machines, electrical tools, building sites. Use up to 0.6/1 kV is permitted in the case of protected fixed installations and for the power supply of motors of lifting devices and similar devices. These cables can be used in refrigeration installations. Laid Cable designed to operate in the open air. If it is buried, provide mechanical protection (gutter, channel, etc.) Dimensional characteristics Driver section: 4 mm² Number of drivers: 3 Max. outer diameter: 16.2 mm Minimum outer diameter: 12.7 mm Approximate mass: 290 kg/km Electrical characteristics Single-phase voltage drop: 10.1 V/A.km Admissible current in open air: 43 A Phase reactance at 50 Hz – cloverleaf installation: – Ohm/km Max. linear resistance of phase conductor core: 4.95 Ohm/km Rated operating voltage Uo/U (Um): 450 / 750 V Mechanical characteristics Mechanical resistance to shocks: Very good Cable flexibility: Flexible

Read more less

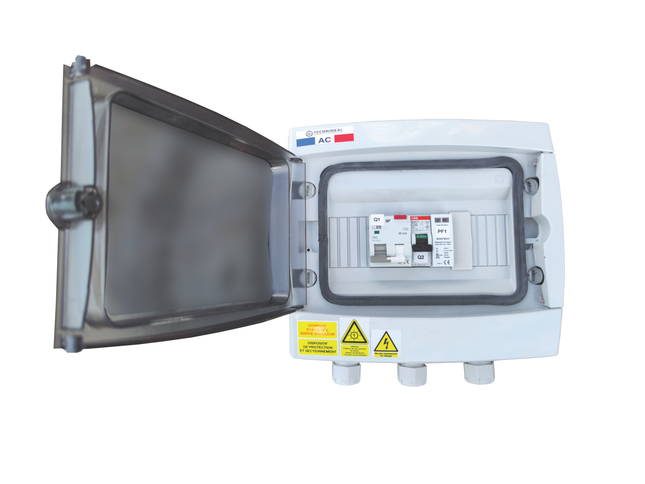

Description : This photovoltaic electrical box provides protection for the AC side of a solar installation. It is placed between the electrical panel and the inverter(s)/micro-inverter(s). The cabinet is equipped with a surge protector and a 20 A circuit breaker, and is designed for installations with a maximum power of 3680 VA at the inverter output. Made in France. Optimum protection on the AC side thanks to the integrated surge arrester and circuit breaker. Complies with UTE C15-712-1 guide. Fully factory pre-wired for easy connection.

Read more less

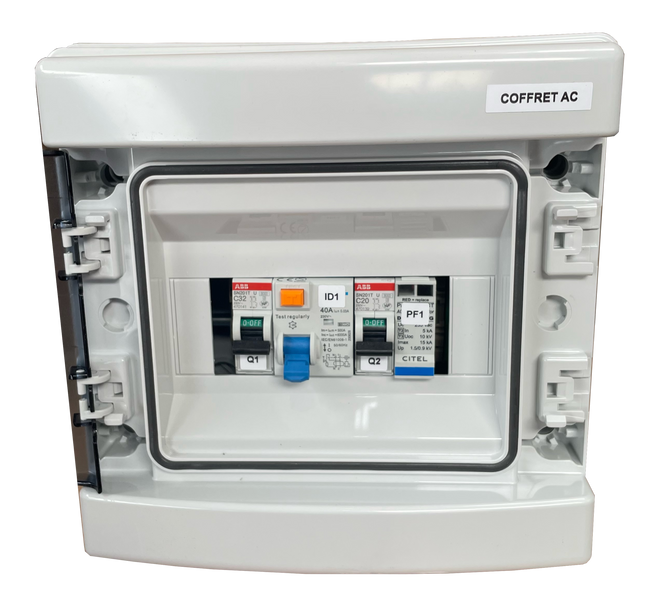

6kW AC Enclosure: Reliable Protection for Photovoltaic Installations The electrical AC enclosure is essential equipment for ensuring the protection of the alternating current side of a photovoltaic installation. It is installed between the electrical panel and the inverter (or micro-inverter), to secure the system against overvoltages and overcurrents. The 6kW AC enclosure is designed for single-phase installations that can reach approximately 6 kVA to 7680 VA at the inverter output, depending on the configurations. Manufactured in France, the enclosure offers reliable manufacturing quality and complies with market requirements. It integrates essential protection components to guarantee the safety and durability of your solar installation. Main features of the 6kW AC Enclosure: 32 A circuit breaker for protection against overloads and short circuits Integrated Type II surge arrester to protect against overvoltages (lightning, grid) Compatible with photovoltaic installations up to 6 kW / 6 kVA Product manufactured in France Compliant with guide UTE C15-712-1 Enclosure pre-wired in the factory for simplified implementation The AC Enclosure ensures complete protection of the AC circuit thanks to the combined integration of the circuit breaker and the surge arrester. This system limits the risks associated with electrical overvoltages and ensures the continuous operation of the photovoltaic installation. Simple and quick installation The 6kW Enclosure is delivered fully pre-wired, which facilitates its installation and significantly reduces connection time. This design also minimizes wiring errors, ensuring a more reliable and secure installation for both professionals and individuals. Compliance and safety The protection enclosure complies with current French standards, including guide UTE C15-712-1, which governs photovoltaic installations. This compliance ensures optimal integration into any type of solar system and meets electrical safety requirements. Thanks to its robust design, integrated components, and ease of installation, the solar electrical enclosure is an ideal solution for effectively protecting any photovoltaic AC installation.

Read more less

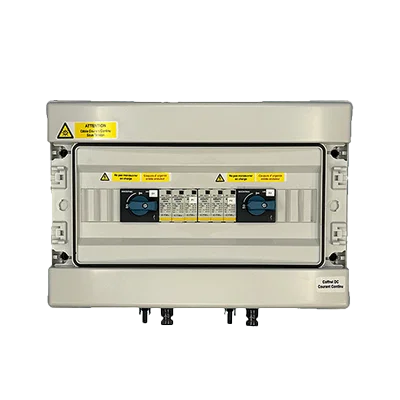

Mechanical characteristics 2MPPT, 1 string per MPPTProduct number: 1556500Manufacturer product number CAB25-0128 ABS plastic enclosure 1x18 modules 2x Sirco MC PV load break switch 2P+1P - 25A 1000VDC 2x Surge protection device DS50PV-1000/30- DC Un 1000v - Ucpv 1200v - Uppe 2.6Kv - In 15KA - Imax 40KA MC4 inputs PE outputs Click on the icons below to download the following files: Data sheet (FR)

Read more less

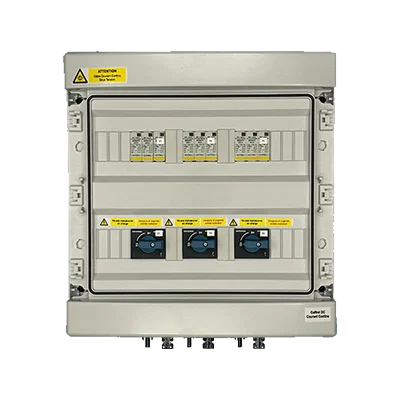

Mechanical characteristics 3MPPT, 1 string per MPPT Product No.: 1556602 Manufacturer product No. CAB25-0130 ABS plastic enclosure 2x18 - 36 modules 3x Sirco MC PV 2P+1P switch disconnector - 25A 1000VDC 3x DS50PV-1000/30- DC Un 1000v - Ucpv 1200v - Uppe 2.6Kv - In 15KA - Imax 40KA - Pluggable 3x 3-hole terminal block - Push-in - Sections: 0.5 mm² - 10 mm² - 41A - 1000v - Blue 3x 3-hole terminal block - Push-in - Sections: 0.5 mm² - 10 mm² - 41A - 1000v - Blue 6x End plate 3 holes - Sections: 6 mm² - Grey 9x Quick-mounting end stop. Wide - Grey 3x MC4 Female panel mount - 50 cm - Black 3x MC4 Male panel mount - 50 cm - Red Item details Manufacturer item designation    CTDC3 25-1000-1MC4 Manufacturer    CAB Intrastat country of origin    France Intrastat product code (HS-Code)    85371098 Dimensions Weight without packaging (kg)    5.000 Packaging Weight incl. packaging (kg)    5.000 Warranty Manufacturer warranty    Sungrow

Read more less

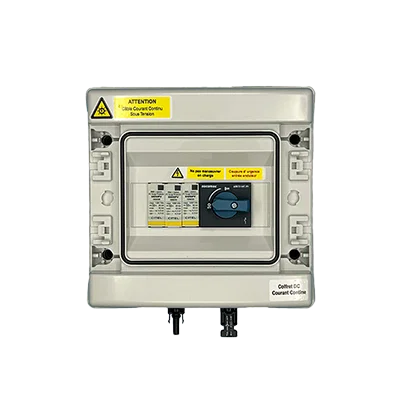

Mechanical characteristics 1 MPPT, 1 string per MPPTProduct No.: 1557392Manufacturer product No. CAB25-0126 ABS plastic enclosure 1x8 modules IP65 1x Sirco MC PV 2P+1P load break switch - 25A 1000VDC 1x Surge protective device DS50PV-1000/30- DC Un 1000v - Ucpv 1200v - Uppe 2.6Kv - In 15KA - Imax 40KA 1x Pair of MC4 connectors Cable gland output Circuit breaker, terminal, and UTE marking set Complete wiring

Read more less

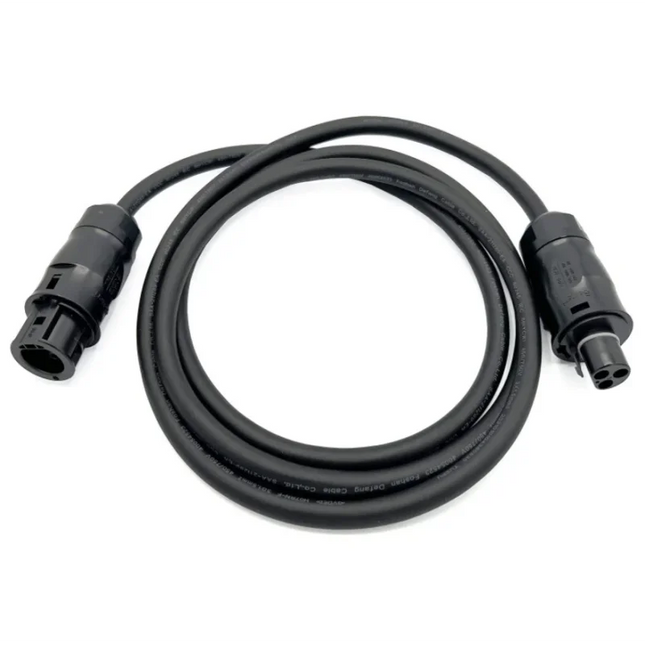

- 4-meter interconnection cable: Designed to connect DEYE microinverters to each other.- Connectors: Equipped with a male Betteri BC01 connector and a female Betteri BC01 connector.- IP67 waterproof rating: Ensures optimal protection against dust and water.

Read more less

Flexible 2electric wire H07VK 1X6 GREEN/YELLOW Flexible, unsheathed, PVC insulated conductors for general use. The conductors H07V-K are particularly intended for wiring panels and cabinets. Use Nexans H07V-K conductors are particularly intended for the wiring of tables and cabinets. Laid Open air, on insulator, or under conduit: ducts, chutes, etc. For insulated conductors laid in a conduit in visible mounting or embedded in a wall for an ambient temperature of 30°C in the air in steady state. If the conditions are different, the correction factors of the NF C standard 15-100 or local country standard apply. Voltage drop Calculated with Cos phi = 0.8

Read more less

Flexible 2electric wire H07VK 1X6 GREEN/YELLOW Flexible, unsheathed, PVC insulated conductors for general use. The conductors H07V-K are particularly intended for wiring panels and cabinets. Use Nexans H07V-K conductors are particularly intended for the wiring of tables and cabinets. Laid Open air, on insulator, or under conduit: ducts, chutes, etc. For insulated conductors laid in a conduit in visible mounting or embedded in a wall for an ambient temperature of 30°C in the air in steady state. If the conditions are different, the correction factors of the NF C standard 15-100 or local country standard apply. Voltage drop Calculated with Cos phi = 0.8 Information and guides

Read more less

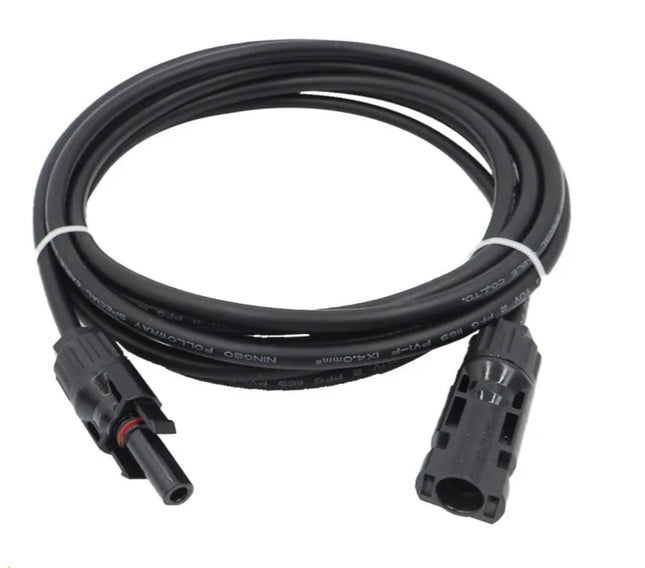

MC4 Extension Cable 1M compatible with all 4mm² panels 4mm² cross-section for optimal transmission Designed for extended and reliable connections in solar systems Generous 1-meter length for flexible connections Robust and resistant to harsh outdoor conditions Optimal power transmission over longer distances Easy to install Compatible with most solar equipment Suitable for residential and commercial solar installations Ensures a durable and reliable connection within the solar system Strengthens your solar system with a high-quality connection solution

Read more less

MC4 Extension Cable 1M compatible with all panels in 6mm² 6mm² cross-section for optimal transmission Designed for extended and reliable connections in solar systems Generous length of 1 meter for flexible connections Robust and resistant to harsh outdoor conditions Optimal power transmission over longer distances Easy to install Compatible with most solar equipment Suitable for residential and commercial solar installations Ensures a durable and reliable connection within the solar system Strengthens your solar system with a high-quality connection solution
