Nexans

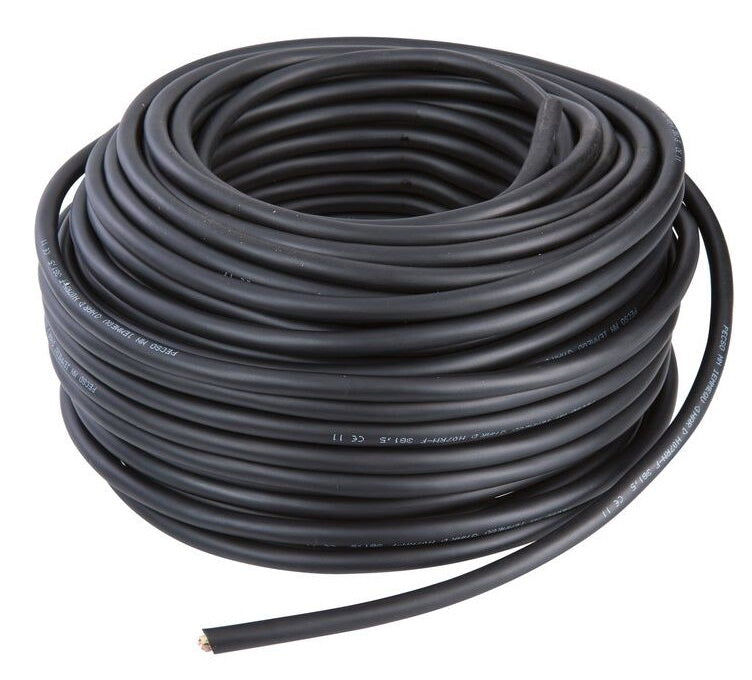

H07RN-F 3G4 MBH GL3500 – Price per meter

H07RN-F 3G4 MBH GL3500 – Price per meter

Regular price €3,96 EUR
Regular price Sale price €3,96 EUR
Unit price €3,96  per  m
Sale Sold out
Taxes included.

Nexans Ref.: 10056120

NATIONAL STANDARDS
NF C32-102-4

Use

H07RN-F flexible industrial cables are particularly designed for the power supply of mobile machines, electrical tools, building sites. Use up to 0.6/1 kV is permitted in the case of protected fixed installations and for the power supply of motors of lifting devices and similar devices.

These cables can be used in refrigeration installations.

Laid

Cable designed to operate in the open air. If it is buried, provide mechanical protection (gutter, channel, etc.)

Dimensional characteristics

Driver section: 4 mm²
Number of drivers: 3
Max. outer diameter: 16.2 mm
Minimum outer diameter: 12.7 mm
Approximate mass: 290 kg/km

Electrical characteristics

Single-phase voltage drop: 10.1 V/A.km
Admissible current in open air: 43 A
Phase reactance at 50 Hz – cloverleaf installation: – Ohm/km
Max. linear resistance of phase conductor core: 4.95 Ohm/km
Rated operating voltage Uo/U (Um): 450 / 750 V

Mechanical characteristics

Mechanical resistance to shocks: Very good
Cable flexibility: Flexible
