Nexans

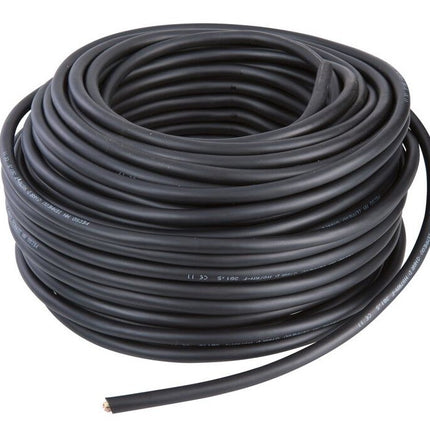

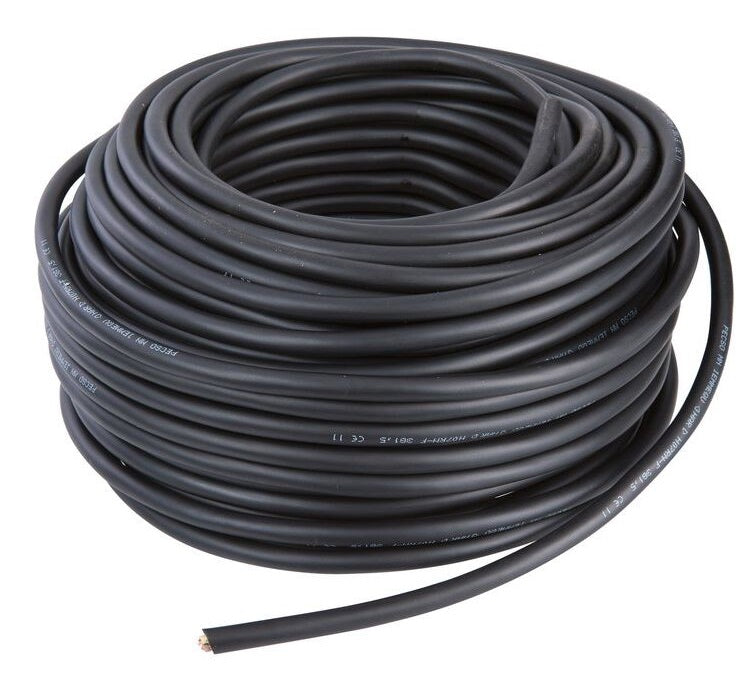

flexible electrical cables H07RN-F 3G4
flexible electrical cables H07RN-F 3G4
Regular price
€4,94 EUR
Regular price
Sale price
€4,94 EUR
Unit price
€4,94
/
per
m
Taxes included.
Couldn't load pickup availability
Share
NATIONAL STANDARDS
NF C32-102-4
Use
H07RN-F flexible industrial cables are particularly designed for the power supply of mobile machines, electrical tools, building sites. Use up to 0.6/1 kV is permitted in the case of protected fixed installations and for the power supply of motors of lifting devices and similar devices.
These cables can be used in refrigeration installations.
Laid
Cable designed to operate in the open air. If it is buried, provide mechanical protection (gutter, channel, etc.)
Dimensional characteristics
Driver section: 4 mm²
Number of drivers: 3
Max. outer diameter: 16.2 mm
Minimum outer diameter: 12.7 mm
Approximate mass: 290 kg/km
Electrical characteristics
Single-phase voltage drop: 10.1 V/A.km
Admissible current in open air: 43 A
Phase reactance at 50 Hz – cloverleaf installation: – Ohm/km
Max. linear resistance of phase conductor core: 4.95 Ohm/km
Rated operating voltage Uo/U (Um): 450 / 750 V
Mechanical characteristics
Mechanical resistance to shocks: Very good
Cable flexibility: Flexible
