Nexans

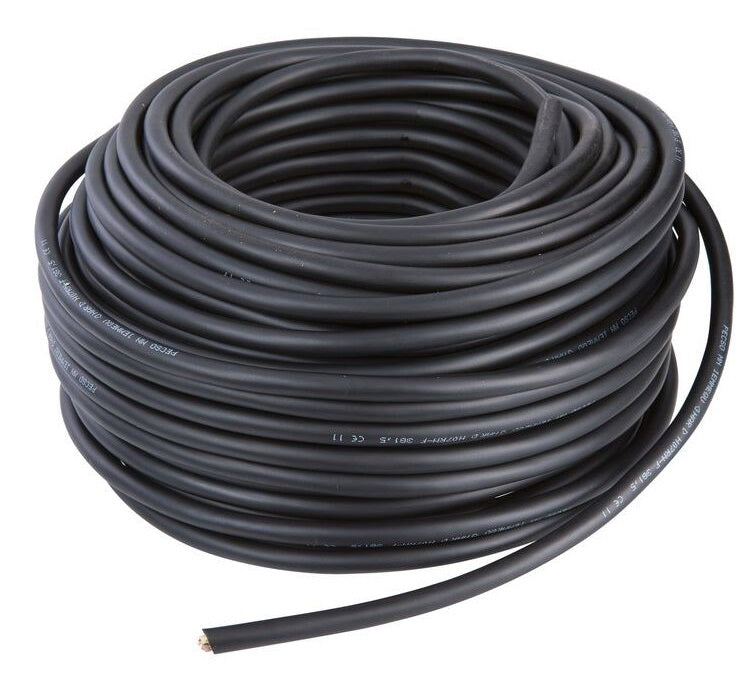

electric cable H07RN-F 3G6

electric cable H07RN-F 3G6

Regular price €7,20 EUR
Regular price Sale price €7,20 EUR
Unit price €7,20  per  m
Sale Sold out
Taxes included.

NATIONAL STANDARDS
NF C32-102-4

Use

H07RN-F flexible industrial cables are particularly designed for the power supply of mobile machines, electrical tools, building sites. Use up to 0.6/1 kV is permitted in the case of protected fixed installations and for the power supply of motors of lifting devices and similar devices.

These cables can be used in refrigeration installations.

Laid

Cable designed to operate in the open air. If it is buried, provide mechanical protection (gutter, channel, etc.).

Dimensional characteristics

Conductor section: 6 mm²
Number of drivers: 3
Max. outer diameter: 18.0 mm
Minimum outer diameter: 14.1 mm
Approximate mass: 346 kg/km

Electrical characteristics

Single-phase voltage drop: 7.0 V/A.km
Admissible current in open air: 56 A
Phase reactance at 50 Hz – cloverleaf installation: – Ohm/km
Max. linear resistance of phase conductor core: 3.3 Ohm/km
Rated operating voltage Uo/U (Um): 450 / 750 V

Mechanical characteristics

Mechanical resistance to shocks: Very good
Cable flexibility: Flexible
