Description

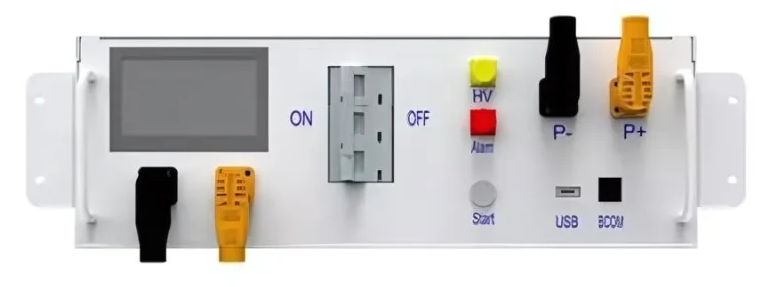

The DEYE HVB750/100A-EU BMS control module for high voltage batteries is designed to work with DEYE's specific energy storage systems, especially those using high voltage batteries. The BMS, or Battery Management System, plays a crucial role in managing, protecting and optimizing battery performance. The main functions of this module are:
1. Charge and discharge management
The BMS regulates the charging and discharging of batteries to maximize their life and efficiency. It ensures that batteries are neither overcharged nor discharged beyond their safe limits, protecting against situations that could damage battery cells or reduce their performance over time.
2. Balancing cells
Batteries are made up of multiple cells that may have slightly different charge rates. The BMS balances the charge between these cells, ensuring that all reach an even charge level. This prevents individual cells from being overcharged or undercharged relative to each other, extending the life of the battery.
3. Surveillance and protection
The module continuously monitors critical battery parameters, such as voltage, current, and temperature. If any of these parameters exceed safe thresholds, the BMS can take immediate action to protect the batteries, such as disconnecting the load or charging source to prevent damage.
4. Communication
The BMS control module communicates with other components in the energy system, such as inverters and charge controllers. This communication enables seamless integration and coordination of energy storage, power generation (such as solar panels), and electrical loads in the home or facility.
5. Performance optimization
By adjusting battery charging and discharging based on intended usage and operational conditions, the BMS can help optimize the performance of the energy storage system, ensuring that energy is available when needed and stored efficiently.
6. Compatibility and integration
Specifically designed for DEYE high voltage batteries, this module ensures seamless integration with DEYE products, providing a reliable and efficient energy storage solution that is optimized to work with DEYE inverters and other equipment.
In summary, DEYE HVB750/100A-EU BMS control module is essential for the safe and efficient management of high-voltage batteries in energy storage systems, providing protection, optimized performance, and seamless integration with residential or commercial energy systems.
-
Operating voltage: 120~750VDC
-
Nominal charge-discharge current: 100 A
-
Maximum charge/discharge current: 125 A
-
DC input rating: 12±2%V/4.15A.
-
Operating temperature range: -20 ~ 55 °C
-
Degree of protection: IP20
-
Width: 570 mm
-
Height: 150 mm
-
Depth: 440 mm
-
Weight: 15.5 kg
-
Warranty: 10 years
-
Protection : IP20
