Description

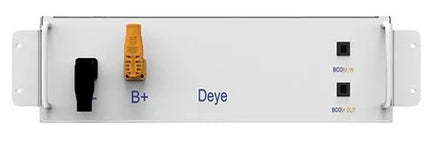

BOS-G60H: The High-Capacity Powerhouse
The BOS-G60H exemplifies superior engineering, offering a robust energy storage solution with a system energy capacity of 61.44 kWh. Utilizing advanced LiFePO4 cell chemistry, it ensures safety, longevity, and high performance. With a nominal module voltage of 51.2V and a nominal system voltage of 614.4V, it is designed for applications demanding high energy density and efficiency.
Key Features:
- Module Capacity: 100Ah
- System Operating Voltage: 480V ~ 700.8V
- Usable Energy: 55.29 kWh
- Charge/Discharge Current: Up to 125A (peak)
- Cycle Life: ≥6000 cycles at 70% EOL
- Warranty: 10 years
BOS-G60L: The Versatile Performer
The BOS-G60L shares the same innovative DNA as its counterpart but is tailored for systems requiring a lower nominal voltage. With a nominal system voltage of 307.2V and a module energy of 5.12kWh, it provides flexibility and adaptability for a wide range of energy storage applications.
Key Features:
- Module Capacity: 100Ah
- System Operating Voltage: 240V ~ 350.4V
- Usable Energy: 55.29 kWh
- Charge/Discharge Current: Up to 125A (peak)
- Cycle Life: ≥6000 cycles at 70% EOL
- Warranty: 10 years
Common Features Across the Series
- Cell Chemistry: Advanced LiFePO4 for safety and durability.
- Operating Temperature: Charge: 0°C to 55°C / Discharge: -20°C to 55°C.
- Communication Port: CAN2.0 / RS485 for seamless integration.
- IP Rating: IP20, ensuring protection in its operational environment.

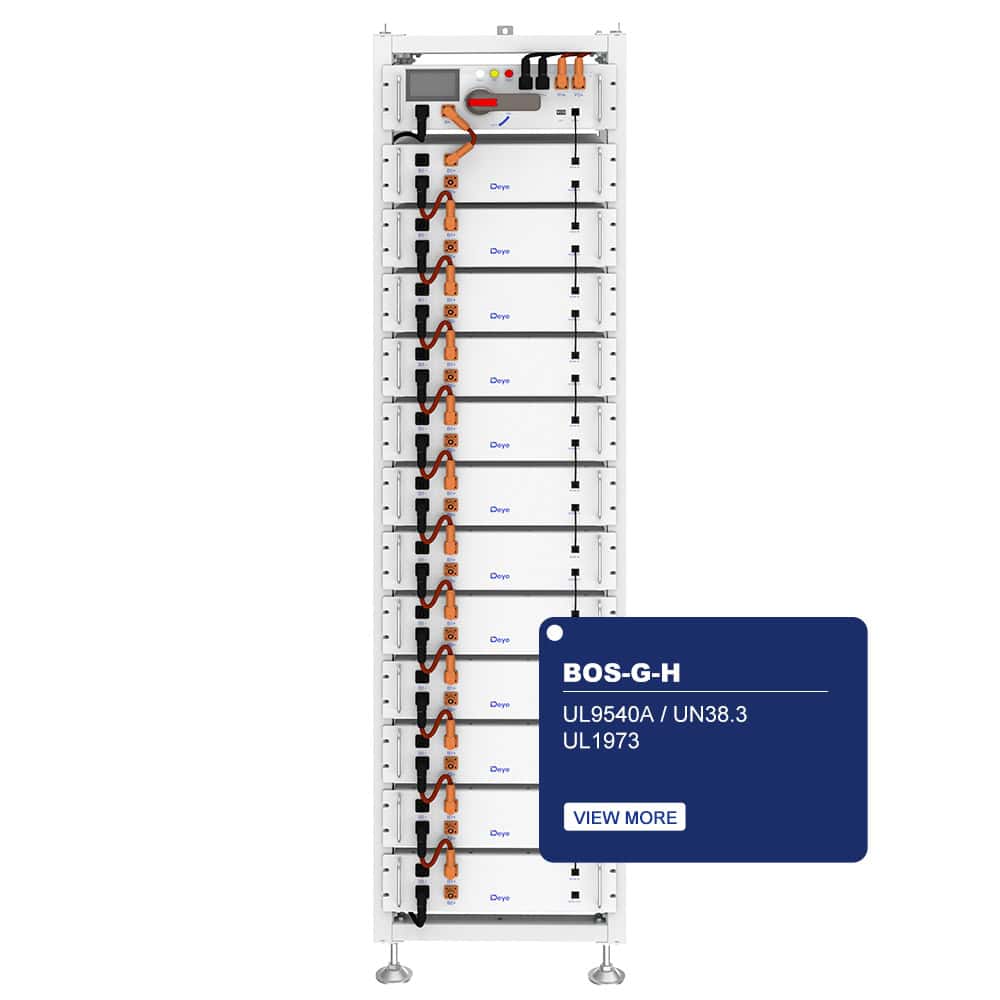

- Installation: Rack mounted, with 19-inch standard rack compatibility.
- Certifications: UL1973, UL9540A, UN38.3, meeting the highest safety and reliability standards.
Engineered for Excellence
Both the BOS-G60H and BOS-G60L are equipped with cutting-edge features such as a North American standard high-voltage battery cluster control box, providing operating voltages ranging from 120V to 750Vdc. Their robust design includes an IP20 protection rating and an operating temperature range that ensures reliability across diverse environmental conditions.
The BOS-G60 series represents Deye’s commitment to innovation and excellence in the energy storage domain. Whether you are looking to enhance your home’s energy efficiency, power your business operations, or scale up industrial energy storage, the BOS-G60H and BOS-G60L offer the flexibility, reliability, and performance you need. Embrace the future of energy with Deye’s BOS-G60 series – where power meets innovation.
SKU: BOS-GH/L
The BOS-G60H exemplifies superior engineering, offering a robust energy storage solution with a system energy capacity of 61.44 kWh. Utilizing advanced LiFePO4 cell chemistry, it ensures safety, longevity, and high performance. With a nominal module voltage of 51.2V and a nominal system voltage of 614.4V, it is designed for applications demanding high energy density and efficiency.
Click on the icons to download the following files:
