Description

SOLAR PANEL CHARACTERISTICS

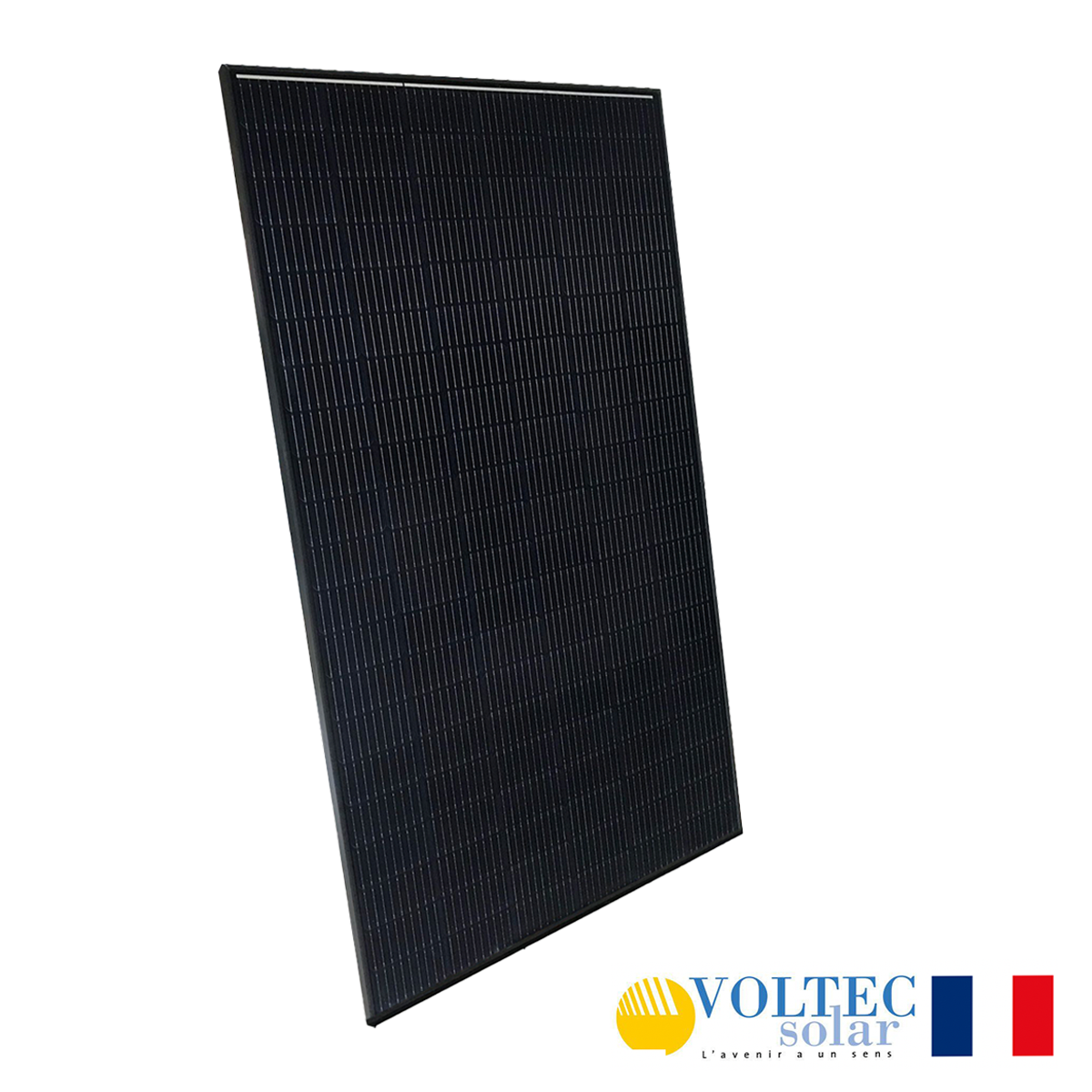

The VOLTEC TARKA 120 VSMP 500W Basalt Full Black solar panel is a high-performance photovoltaic module manufactured in France. With a power of 500Wp and high efficiency, it is ideal for residential and professional self-consumption solar installations.

Dimensions 1 1868 x 1170 x 35 mm
Weight 22.8 kg ± 3%
Cell type Monocrystalline N-type
Quantity per panel 120 half-cells
Solar glass thickness 3.2 mm ±0.2mm tempered glass
Connectors Staubli MC4 or MC4-EVO2
Cable dimensions 4mm² • 2 x 1.6m or 2 x 1.2m
Frame Anodized aluminum
Structure Glass/Encapsulants/Backsheet
Operating temperatures -40°C to +85°C
Maximum wind/snow load 3600/1600 Pa
Electrical safety Class II, IP 68
Maximum system voltage 1000V / 1500V
Max reverse current IRM (A) 30
Impact resistance Hail | ø4cm | 97km/h

Click on the icons to download the following files:

Technical Data Sheet

User Guide

Specifications

• Brand: VOLTEC

Pros and cons

• Clean
• renewable energy
  High reliability
• long service life
  Low maintenance requirements
• Production varies with weather conditions
  Requires correct installation to avoid problems
