Lithium Batteries

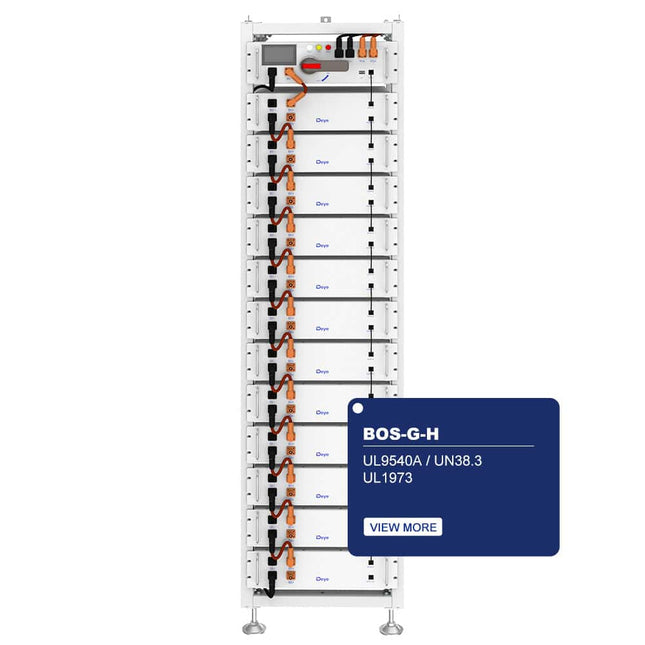

BOS-G60H: the high-capacity power station The BOS-G60H demonstrates superior engineering, providing a robust energy storage solution with a system energy capacity of 61.44 kWh. Utilizing advanced LiFePO4 cell chemistry, it ensures safety, longevity and high performance. With a nominal module voltage of 51.2 V and a nominal system voltage of 614.4 V, it is designed for applications requiring high energy density and efficiency. Main features: Module capacity: 100 Ah System operating voltage: 480V~700.8V Usable energy: 55.29 kWh Charge/discharge current: up to 125 A (peak) Lifespan: ≥6,000 cycles at 70% EOL Warranty: 10 years BOS-G60L: the versatile performer The BOS-G60L shares the same innovative DNA as its counterpart but is designed for systems requiring a lower nominal voltage. With a nominal system voltage of 307.2 V and a module energy of 5.12 kWh, it offers flexibility and adaptability for a wide range of energy storage applications. Main features: Module capacity: 100 Ah System operating voltage: 240V~350.4V Usable energy: 55.29 kWh Charge/discharge current: up to 125 A (peak) Lifespan: ≥6,000 cycles at 70% EOL Warranty: 10 years Common features of the entire series Cell Chemistry: Advanced LiFePO4 for safety and durability. Operating temperature: Charge: 0°C to 55°C / Discharge: -20°C to 55°C. Communication port: CAN2.0 / RS485 for seamless integration. IP rating: IP20, ensuring protection in its operational environment. Installation: Rack mounting, with standard 19-inch rack compatibility. Certifications: UL1973, UL9540A, UN38.3, meeting the highest standards of safety and reliability. Designed for excellence Both the BOS-G60H and BOS-G60L are equipped with industry-leading features such as a North American-compliant high-voltage battery bank control box, offering operating voltages ranging from 120 V to 750 Vdc. Their rugged design includes an IP20 rating and an operating temperature range that ensures reliability in a variety of environmental conditions. The BOS-G60 Series represents Deye’s commitment to innovation and excellence in energy storage. Whether you’re looking to improve your home’s energy efficiency, power your business operations, or augment industrial energy storage, the BOS-G60H and BOS-G60L deliver the flexibility, reliability, and performance you need. Embrace the future of energy with Deye’s BOS-G60 Series – where power meets innovation. SKU: BOS-GH/L The BOS-G60H demonstrates superior engineering, providing a robust energy storage solution with a system energy capacity of 61.44 kWh. Utilizing advanced LiFePO4 cell chemistry, it ensures safety, longevity and high performance. With a nominal module voltage of 51.2 V and a nominal system voltage of 614.4 V, it is designed for applications requiring high energy density and efficiency. Click on the icons to download the following files: Technical sheet User Guide Guarantee

Read more less

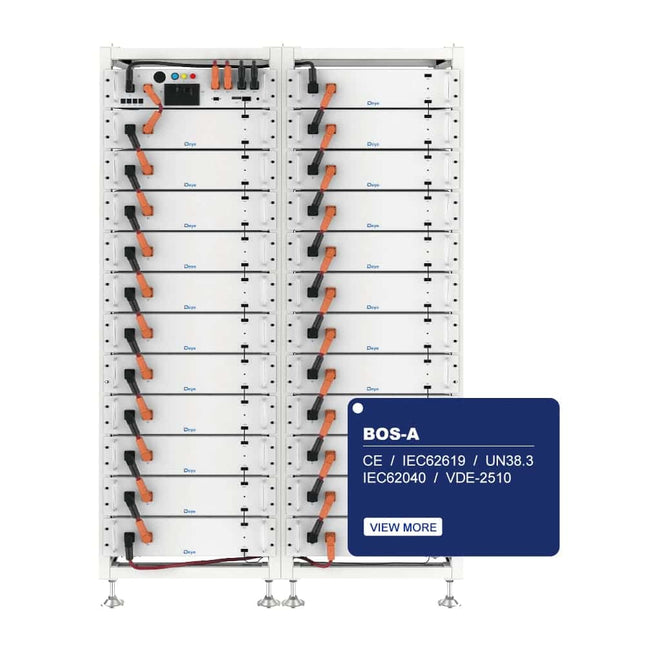

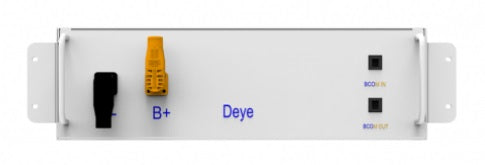

SKU: BOS-A BOS-A is a practical, safe and environmentally friendly LiFePO4 battery module with intelligent BMS, wide temperature range and flexible configuration options for efficient backup power and renewable energy storage. Designed to provide efficient, safe and flexible energy storage for a wide range of applications. Our module offers a superior combination of performance, reliability and environmental friendliness, making it the ideal choice for your energy storage needs. Key Features and Benefits: Convenient Installation : The module's quick installation and standard integrated design make it easy to set up and maintain, saving you time and effort. Safe and Reliable : Built with LiFePO4 cathode material, our module features excellent safety performance and long cycle life. With minimal self-discharge and no memory effect, it can be stored for up to 6 months without charging and provides outstanding performance in shallow charge and discharge cycles. Intelligent BMS : Built-in Battery Management System (BMS) provides complete protection against over-discharge, over-charge, over-current and extreme temperatures. It automatically manages charge and discharge states while balancing each cell's current and voltage. Eco-Friendly : Our non-toxic, non-polluting and environmentally friendly module is designed with sustainability in mind. Flexible Configuration : Increase capacity and power by connecting multiple battery modules in parallel. The module supports USB, WiFi (optional) and remote upgrades, making it compatible with Deye inverters. Wide Temperature Range : With an operating temperature range of -20°C to 55°C, our module provides excellent discharge performance and excellent lifespan in various environments. Features: Cellular chemistry: LiFePO4 Module energy: 7.68 kWh Nominal module voltage: 38.4 V Module capacity: 200 Ah Module dimensions (W/D/H): 576 x 601 x 135 mm Module weight: approx. 65 kg Deye’s LiFePO4 battery module is a testament to our commitment to providing high-quality, reliable and durable energy storage solutions. With its intelligent design, flexible configuration options and wide operating temperature range, this module is suitable for a variety of applications. Trust Deye to meet your energy storage needs with our cutting-edge technology and unwavering commitment to excellence. Click on the icons to download the following files: Compatibility Statement

Read more less

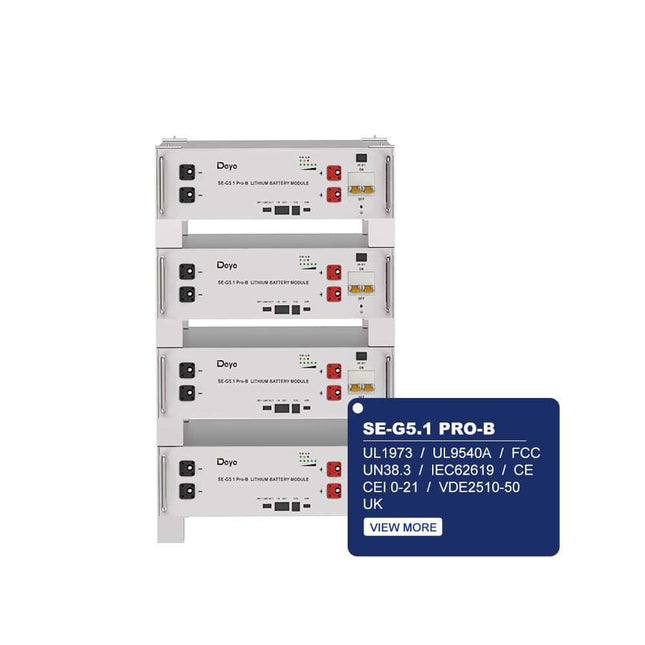

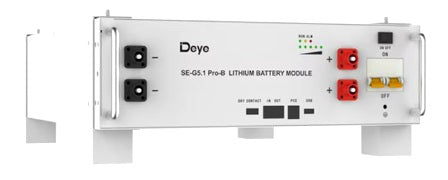

SKU: SE-G5.1Pro-B The Deye SE-G5.1 Pro-B is an advanced lithium iron phosphate (LFP) battery designed for safe, reliable and flexible energy storage solutions. This modular battery system is perfect for both residential and commercial applications , allowing you to increase your self-consumption rate and optimize your energy consumption . Technical specifications: Battery Chemistry: LiFePO4 Capacity: 100 Ah Nominal voltage: 51.2 V Nominal energy: 5.12 kWh Usable energy: 4.6 kWh Dimensions: 440 x 133 x 540 mm Weight: about 45 kg Warranty period: 10 years Main features: Safer : Our cobalt-free LFP battery provides enhanced safety and long life, with high efficiency and power density. The intelligent Battery Management System (BMS) provides comprehensive protection for your peace of mind. Reliable : The SE-G5.1 Pro-B supports high discharge power and operates in a wide temperature range from -20°C to 55°C. With an IP20 rating and natural cooling, this battery is built to last. Flexible : The modular design allows for easy expansion, with up to 64 units in parallel, providing up to 327 kWh of storage capacity. This flexibility makes it ideal for various applications and energy needs. Convenient : The battery modules feature automatic networking for easy maintenance and support remote monitoring and firmware upgrades via USB drive, ensuring a hassle-free experience. Eco-friendly : We use environmentally friendly materials, ensuring that the entire module is non-toxic and pollution-free, promoting a greener future. Three Mounting Methods : With a standard 19-inch design, the SE-G5.1 Pro-B supports rack, wall and floor mounting, saving valuable installation space and adapting to your specific needs. Invest in the Deye SE-G5.1 Pro-B LFP battery for a safe, reliable and flexible energy storage solution that adapts to your needs and contributes to a more sustainable future. Click on the icons to download the following files: Technical sheet User Guide Guarantee

Read more less

SKU: RW-M6.1-B The Deye RW-M 6.1-B LFP wall-mounted battery is the perfect solution for those looking for a reliable, flexible and environmentally friendly energy storage system with advanced features for optimum performance and safety. Technical specifications: Battery Chemistry: LiFePO4 Capacity: 120 Ah Energy: 6.14 kWh Rated DC power: Peak (2 minutes, 25℃) 150 kW Dimensions (L/H/D): 510 millimeters 740 millimeters 145 mm (without base) Weight: Approx. 58kg Operating temperature: Charge: 0~55℃ / Discharge: -20℃~55℃ Storage temperature: 0℃~35℃ Humidity: 5%～95% Altitude: ≤ 2000 m Warranty period: 10 years Energy flow: 20 MWh at 70% end of life Certifications: UN38.3, IEC62619, CE, IEC 0-21, VDE2510-50 The Deye RW-M 6.1-B is an advanced lithium iron phosphate (LFP) battery designed to provide reliable, safe and high-efficiency energy storage solutions for residential and commercial applications. With its advanced battery management system (BMS) and modular design, this battery ensures long cycle life, high power density and complete protection for your energy storage needs. Main features: Safety and longevity: Cobalt-free LFP chemistry ensures safer operation. Intelligent BMS provides comprehensive protection and extends service life. Supporting high discharge power ensures reliability. High efficiency: High power density for efficient energy storage. Operating voltage range from 43.2 V to 57.6 V. Usable energy capacity of 5.53 kWh with a nominal voltage of 51.2V. Flexible and scalable: The modular design allows for easy expansion, supporting up to 32 units in parallel. Maximum capacity of 196 kWh. Suitable for various applications with limited installation space and limited load. Practical and smart: Self-networking battery modules for effortless maintenance. Remote monitoring and firmware upgrades via USB stick. CAN 2.0 and RS485 communication ports for seamless integration. Respectful of nature: Made from non-toxic and pollution-free materials. Designed to be environmentally friendly. Multi-purpose installation: Supports wall and floor mounting configurations. Saves installation space with flat design. Robust construction: IP65 rating for a rugged enclosure. Works efficiently in a wide temperature range (-20℃ to 55℃). Lifespan of ≥ 6000 cycles at 25℃. Accessories included: Battery Hanging Board (RW-M6.1-B-Hboard): For wall mounting. Hybrid inverter cable (RW-M6.1-B-PCable1500): Length 1500 mm, waterproof terminals. Battery Parallel Cable (RW-M6.1-B-BCable300): Length 300mm, waterproof terminals. Fixed Brackets (RW-M6.1-B-Fixed Bracket): To secure the battery when mounted on the floor. Click on the icons to download the following files: Technical sheet User Guide Guarantee Compatibility Statement Safety data sheets

Read more less

SKU: RW-M6.1-B The Deye RW-M 6.1-B LFP wall-mounted battery is the perfect solution for those looking for a reliable, flexible and environmentally friendly energy storage system with advanced features for optimum performance and safety. Technical specifications: Battery Chemistry: LiFePO4 Capacity: 120 Ah Energy: 6.14 kWh Rated DC power: Peak (2 minutes, 25℃) 150 kW Dimensions (L/H/D): 510 millimeters 740 millimeters 145 mm (without base) Weight: Approx. 58kg Operating temperature: Charge: 0~55℃ / Discharge: -20℃~55℃ Storage temperature: 0℃~35℃ Humidity: 5%～95% Altitude: ≤ 2000 m Warranty period: 10 years Energy flow: 20 MWh at 70% end of life Certifications: UN38.3, IEC62619, CE, IEC 0-21, VDE2510-50 The Deye RW-M 6.1-B is an advanced lithium iron phosphate (LFP) battery designed to provide reliable, safe and high-efficiency energy storage solutions for residential and commercial applications. With its advanced battery management system (BMS) and modular design, this battery ensures long cycle life, high power density and complete protection for your energy storage needs. Main features: Safety and longevity: Cobalt-free LFP chemistry ensures safer operation. Intelligent BMS provides comprehensive protection and extends service life. Supporting high discharge power ensures reliability. High efficiency: High power density for efficient energy storage. Operating voltage range from 43.2 V to 57.6 V. Usable energy capacity of 5.53 kWh with a nominal voltage of 51.2V. Flexible and scalable: The modular design allows for easy expansion, supporting up to 32 units in parallel. Maximum capacity of 196 kWh. Suitable for various applications with limited installation space and limited load. Practical and smart: Self-networking battery modules for effortless maintenance. Remote monitoring and firmware upgrades via USB stick. CAN 2.0 and RS485 communication ports for seamless integration. Respectful of nature: Made from non-toxic and pollution-free materials. Designed to be environmentally friendly. Multi-purpose installation: Supports wall and floor mounting configurations. Saves installation space with flat design. Robust construction: IP65 rating for a rugged enclosure. Works efficiently in a wide temperature range (-20℃ to 55℃). Lifespan of ≥ 6000 cycles at 25℃. Accessories included: Battery Hanging Board (RW-M6.1-B-Hboard): For wall mounting. Hybrid inverter cable (RW-M6.1-B-PCable1500): Length 1500 mm, waterproof terminals. Battery Parallel Cable (RW-M6.1-B-BCable300): Length 300mm, waterproof terminals. Fixed Brackets (RW-M6.1-B-Fixed Bracket): To secure the battery when mounted on the floor. Click on the icons to download the following files: Technical sheet User Guide Guarantee Compatibility Statement Safety data sheets

Read more less
