Description

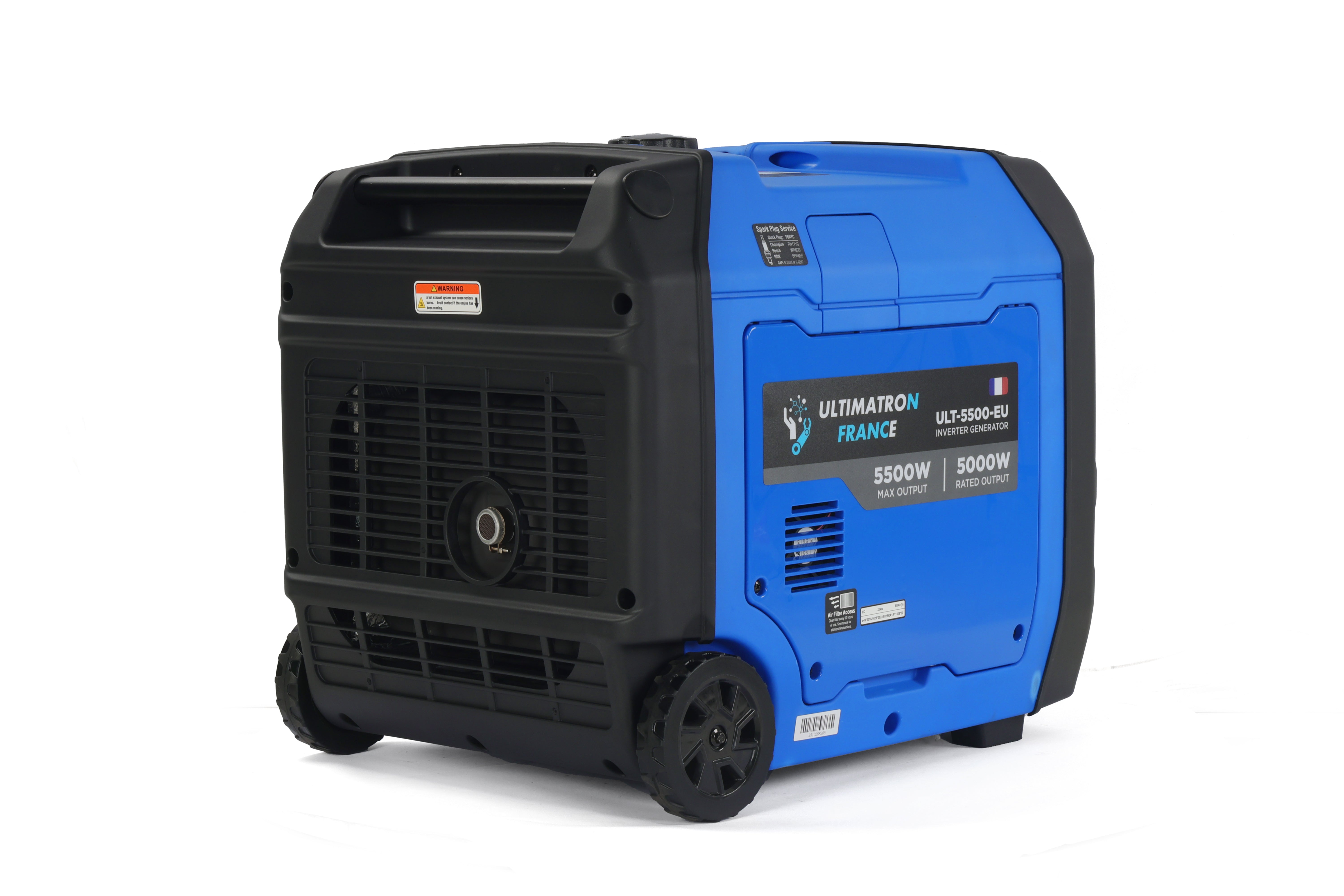

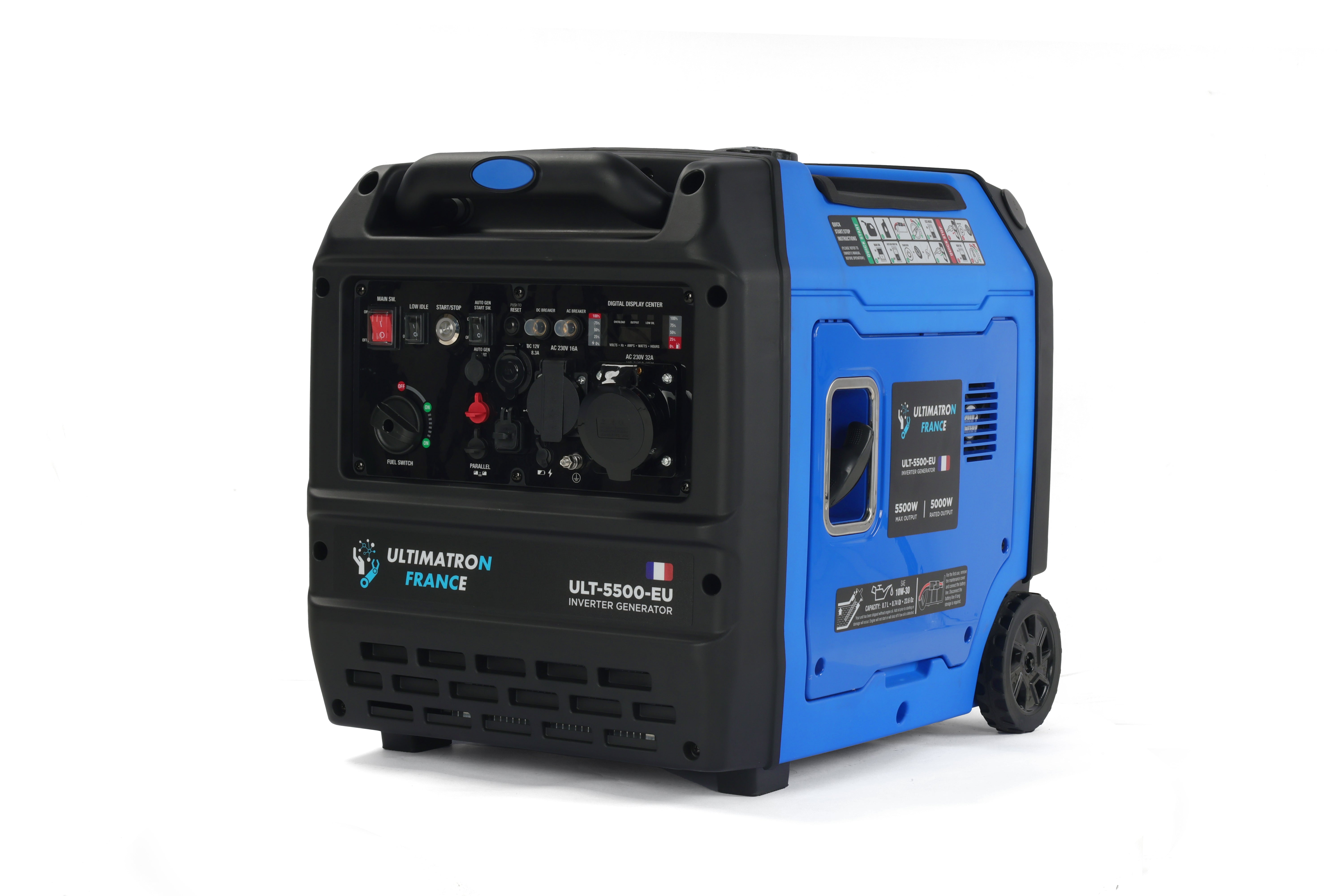

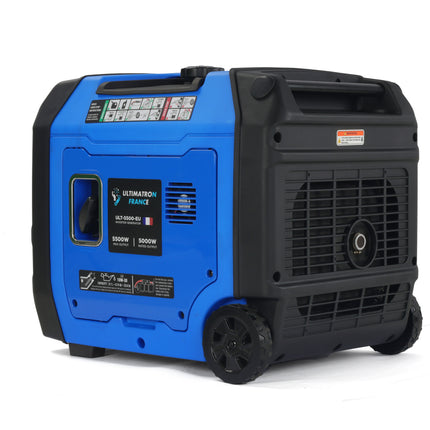

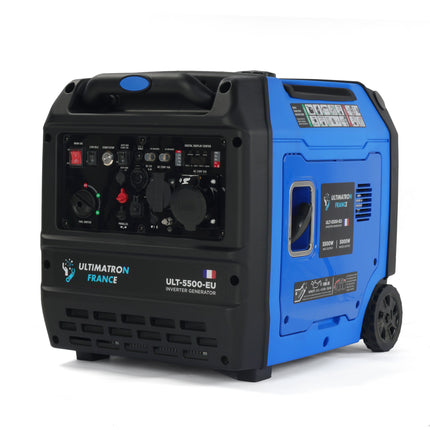

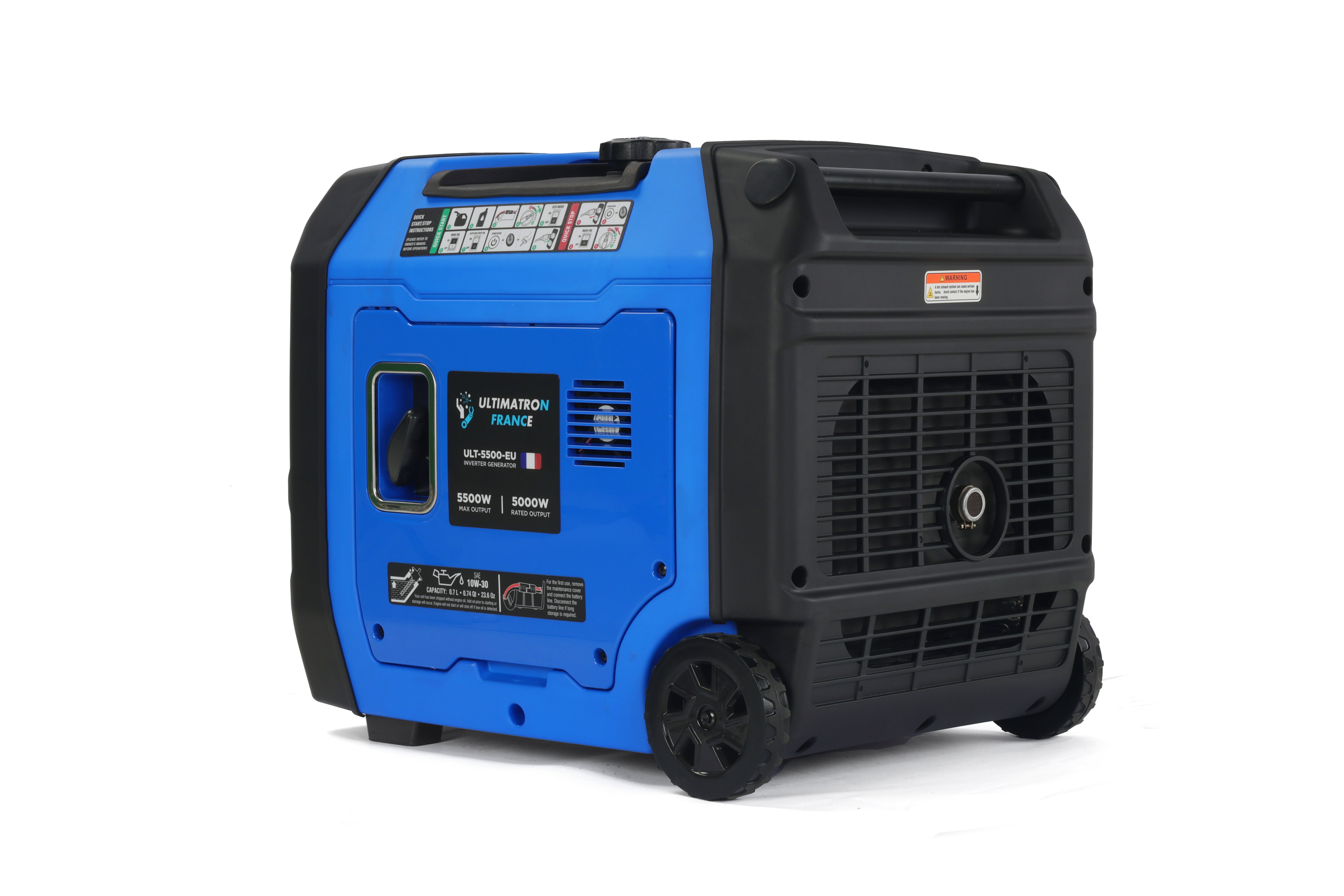

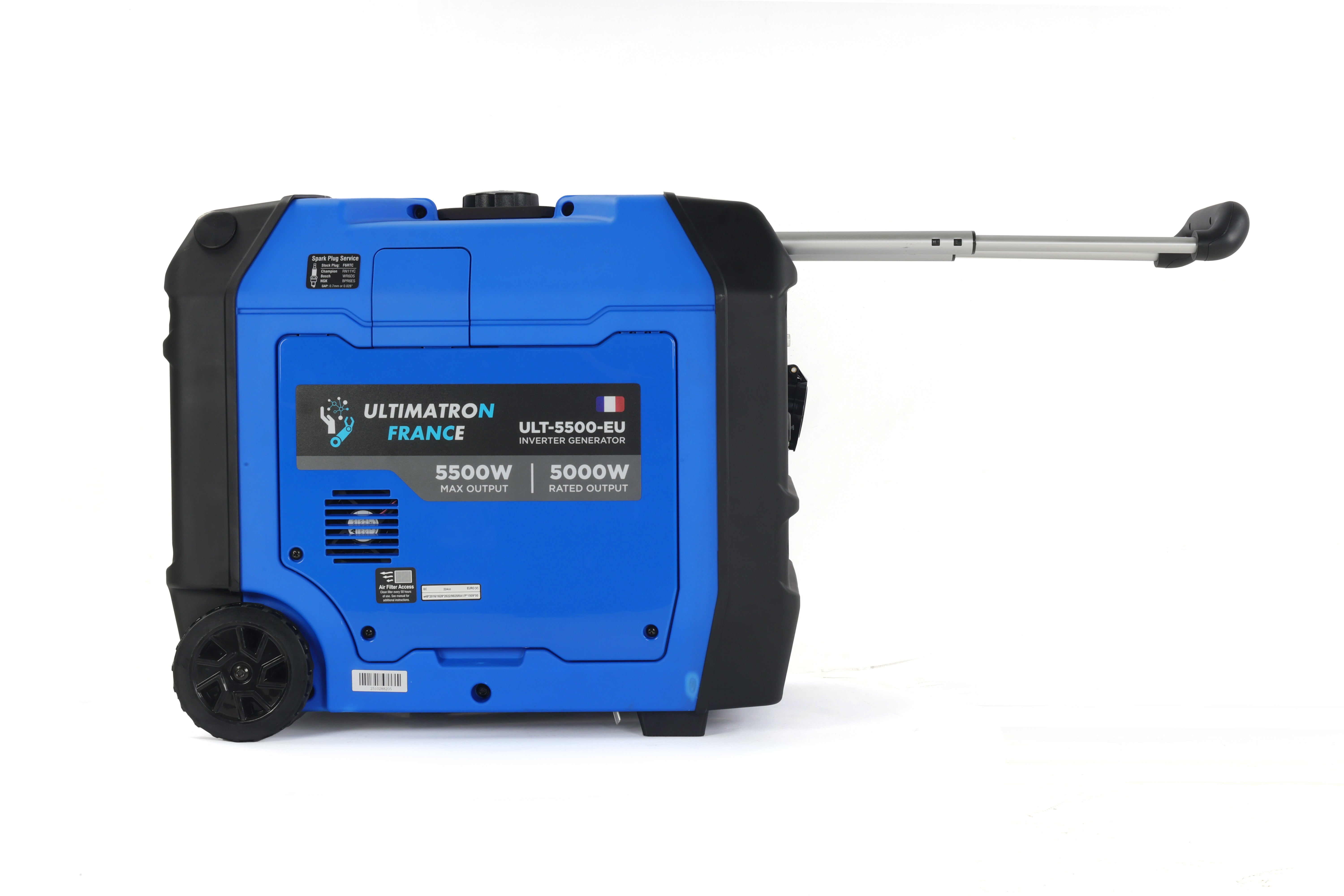

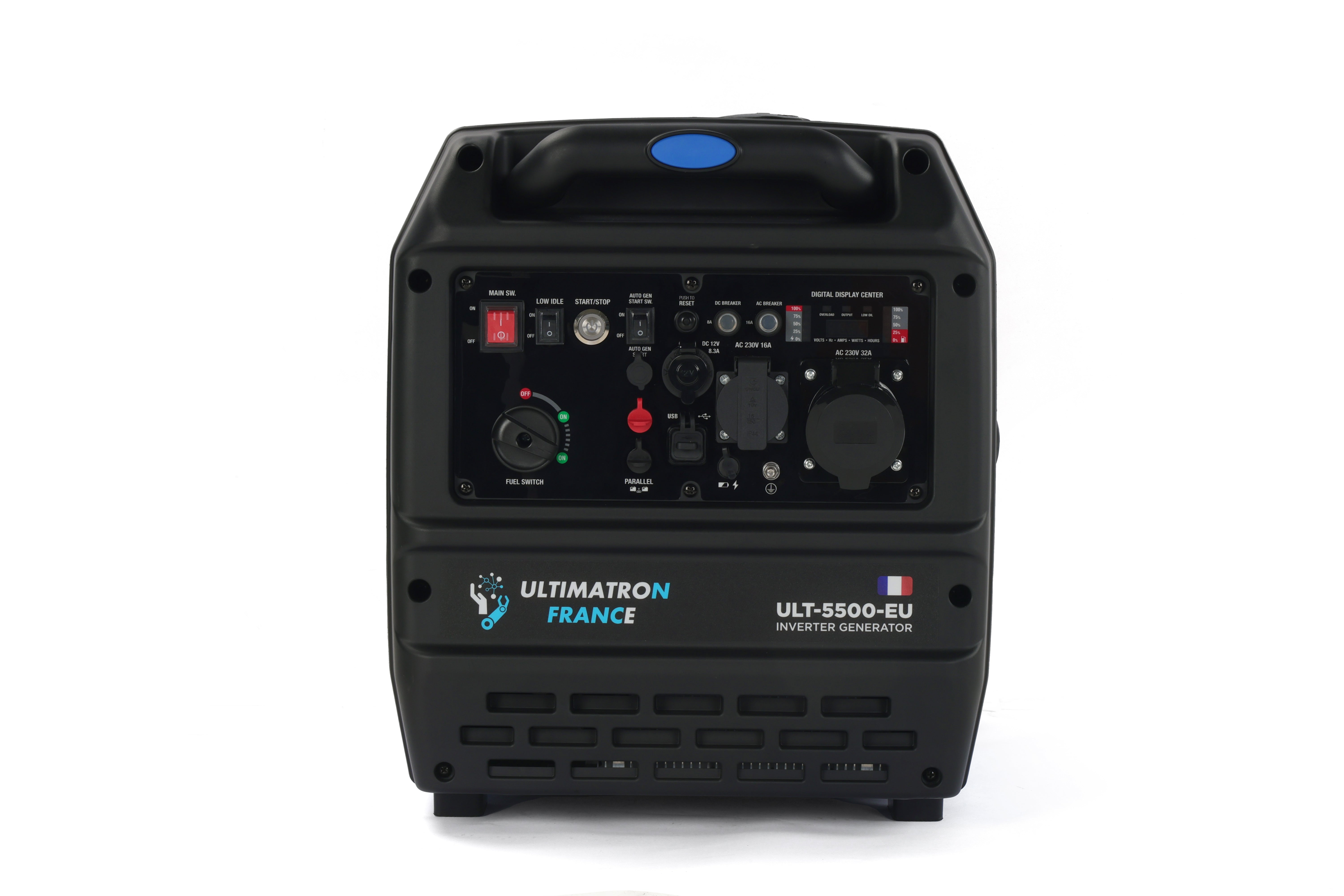

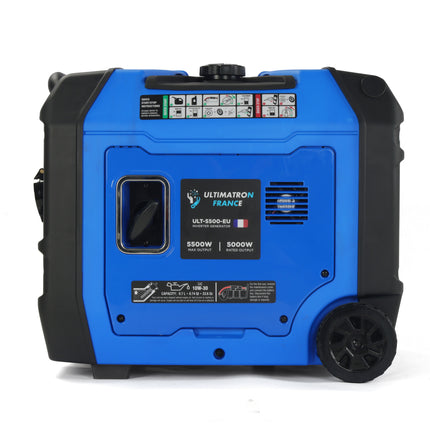

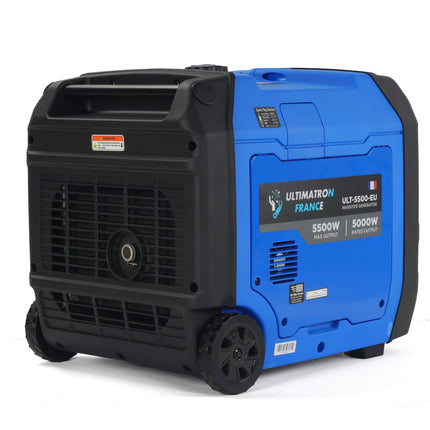

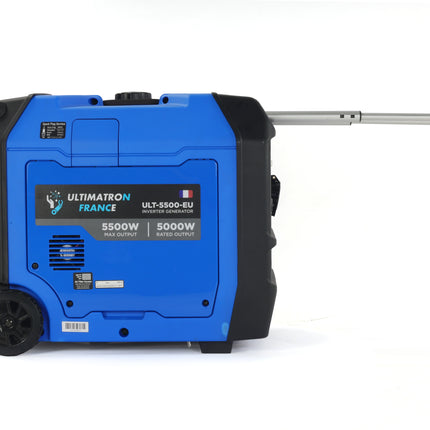

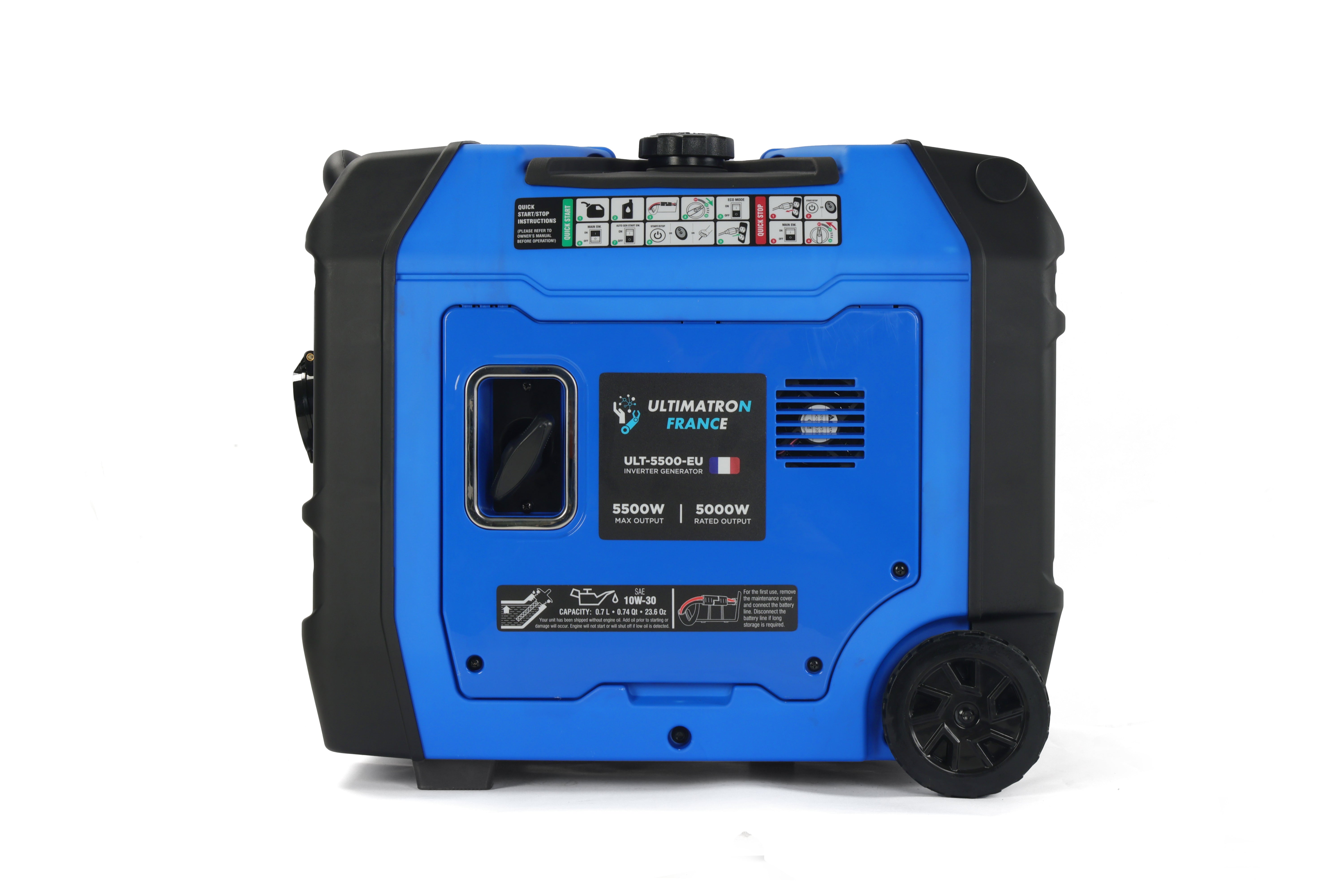

Ultimatron 5500W Inverter Generator
The Ultimatron ULT-5500-EU Inverter generator delivers a continuous power output of 5,000 W and up to 5,500 W at startup. Equipped with a 223.9 cm³ OHV petrol engine, it combines power, mobility, and stable electrical supply.
Inverter Technology
Thanks to its Inverter technology, the generator produces a pure sine wave with 3% THD, suitable for powering many types of equipment, including sensitive electronic devices such as laptops, phones, and tablets.
ECO Mode
The ECO mode adjusts engine operation to the requested load to optimize fuel consumption. At 25% load, the stated noise level is 67 dB at approximately 7 meters.
Fuel consumption
Consumption varies according to the generator load:
-
25% load: 1.2 L/h
-
50% load: 1.7 L/h
-
75% load: 2.3 L/h
-
100% load: 2.9 L/h
Easy transport

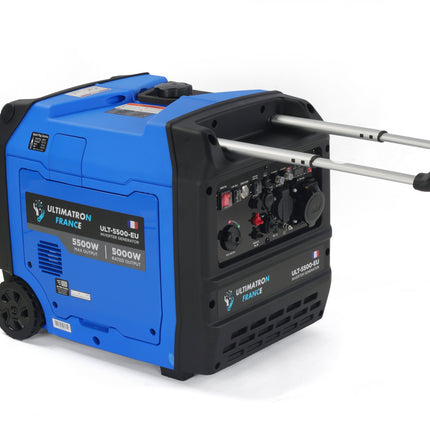

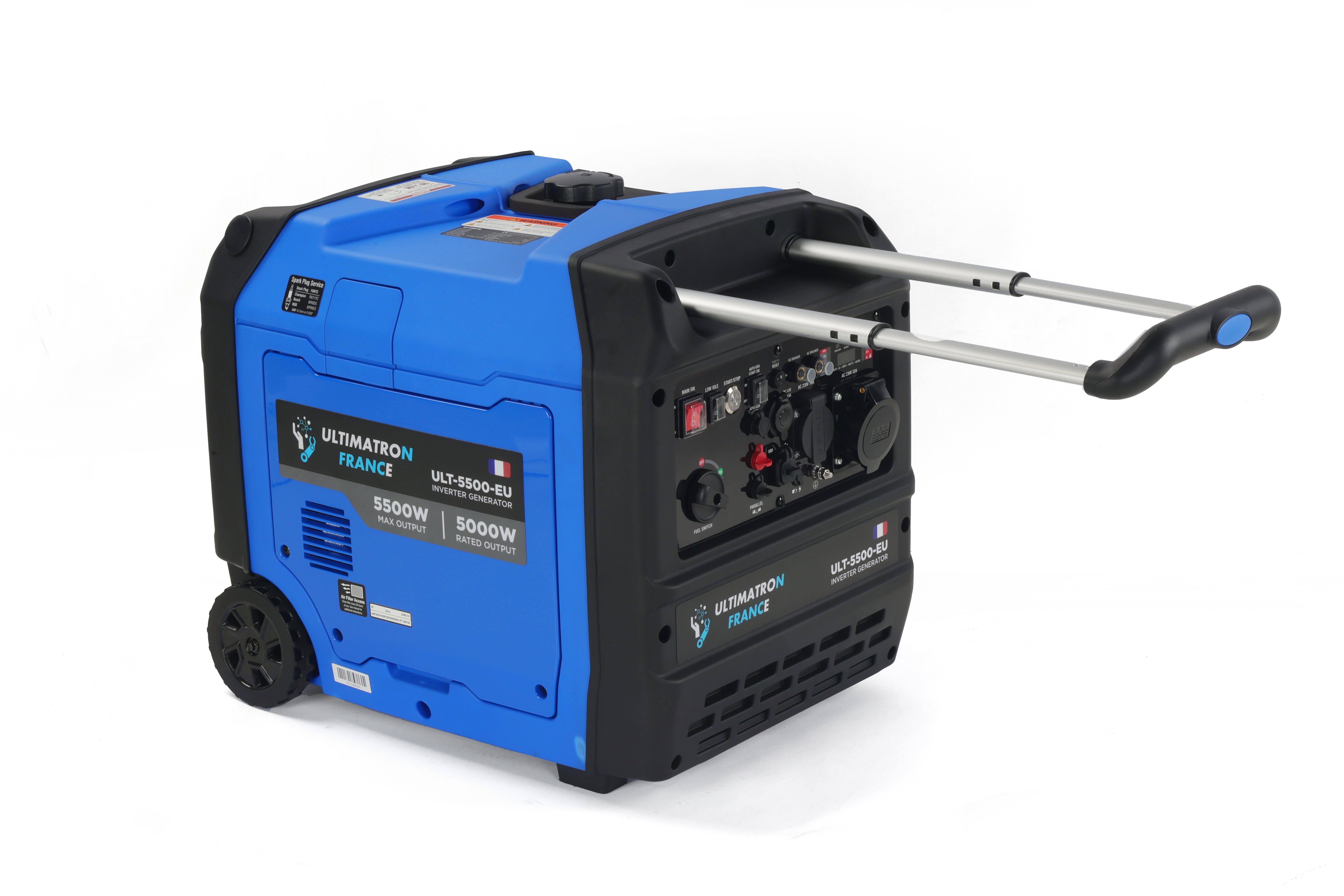

Weighing 42.5 kg, the generator is equipped with wheels and foldable handles, making it easy to move, handle, and store.
Parallel connection
The parallel connection function allows two compatible generators to be linked together to increase the available electrical power when higher output is required.
Integrated protections
The generator features protection against low oil and overload, helping to protect both the engine and connected equipment.
Technical specifications
| Feature |
Value |
| Model / SKU |
ULT-5500-EU |
| Type |
Portable Inverter Generator |
| Fuel |
Petrol |
| Continuous power |
5,000 W |
| Startup power |
5,500 W |
| Rated frequency |
50 Hz |
| Rated current |
21.74 A |
| Engine displacement |
223.9 cm³ |
| Engine type |
OHV |
| THD |
3% |
| ECO mode |
Yes |
| Recommended oil |
SAE 10W-30 |
| Oil capacity |
0.55 L |
| Starting method |
Manual / Electric |
| Noise level at 25% load |
67 dB at approx. 7 m |
| Dimensions (L × W × H) |
58 × 44 × 50 cm |
| Net weight |
42.5 kg |
| Warranty |
2 years |
