Solar mounting system on tiled roof - kit for 4 portrait panels

This solar panel mounting kit is designed to be installed on roofs with mechanical tiles and narrow rafters. It is suitable for both traditional and truss roofs, offering great flexibility and ease of installation.

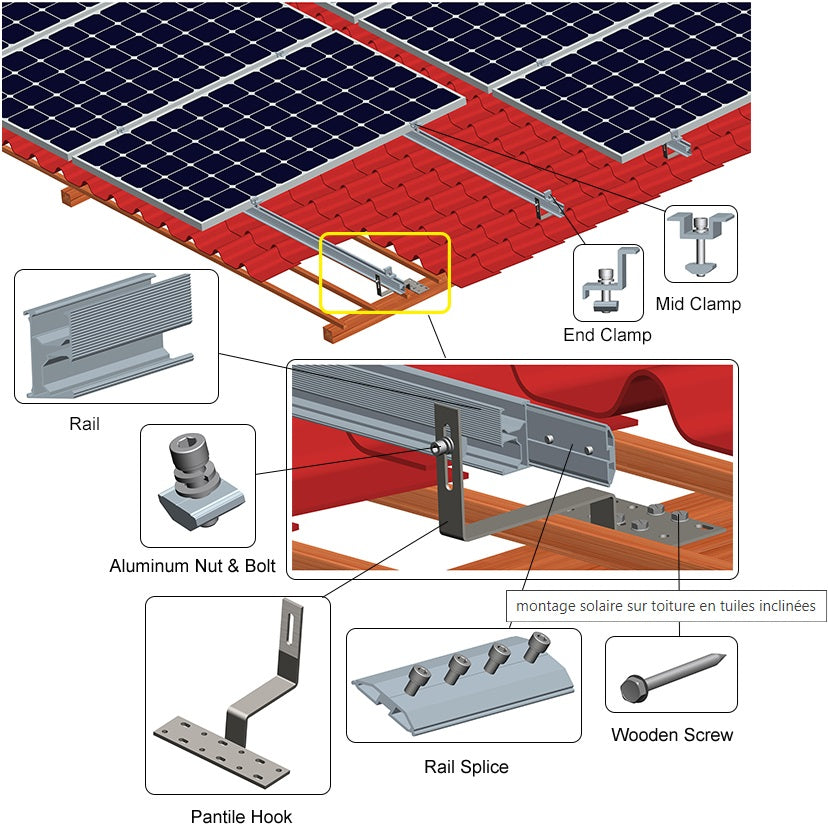

The mounting kit for 4 panels on tiled roofs consists of:

• 8 adjustable stainless steel hooks with 16 M8x80 mm framing screws,
• 4 rails measuring 4 cm x 4 cm x 240 cm,
• 4 rail end caps,
• 4 final calipers of 30 mm,
• 4 x 35 mm final stirrups,
• 6 intermediate stirrups,
• 4 connectors for equipotential bonding,
• 8 M10x25 A2 hexagon head screws with 8 M10 large stainless steel nuts.

Features of the Fixing Kit

1. Compatibility :
   • Suitable for almost all types of tiles thanks to the adjustable multi-function hook.
2. Settings :
   • Lateral and height adjustment on the base plate, allowing great installation flexibility.
3. Panel Layout :
   • Capable of supporting 4 solar panels in portrait mode.
   • Can be arranged either in a horizontal row of 4 panels in portrait, or in a vertical column of 4 panels in landscape.
4. Panel Dimensions :
   • Compatible with 30mm or 35mm high panel frames.
5. Complete Kit :
   • Supplied complete and ready to assemble, including all elements necessary for installation.
