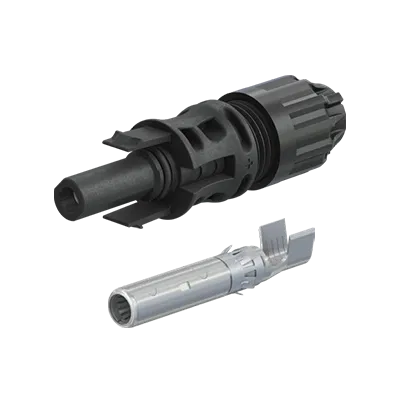

Mechanical characteristics Connector (-) cable Ø 10mm², insulation 6.4-8.5mmProduct no.: 1562741Manufacturer's product no. 32.0268P0001 Specific connector for connecting high-voltage batteries... Read more
€2,00 Incl. VAT
Secure and guaranteed case.
Mechanical characteristics
Specific connector for connecting high-voltage batteries and inverters equipped with MC4 EVO STOR connectors to their connection terminal block.
Features
Based on MC4-EVO2 connectors, this connector is not mechanically interoperable with the rest of the MC4 connector range, as it is equipped with a detent in the form of a 45° rotation of its connecting sleeve.
Article details
Dimensions
Packaging
Warranty
Technical data
| Rated voltage (V) | 1500.00 |
|---|---|
| Cable core cross-section (mm²) | 10.00 |
| Current type | DC |
| Rated current (A) | 62.00 |
Click on the icons to download the following files:
