Description

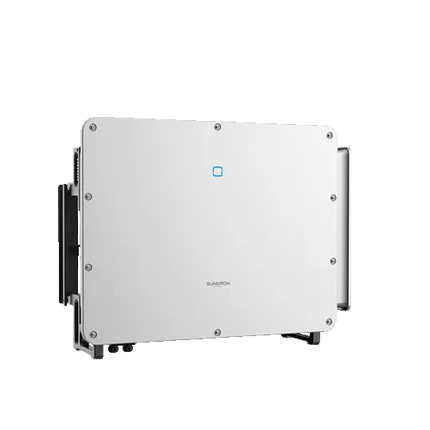

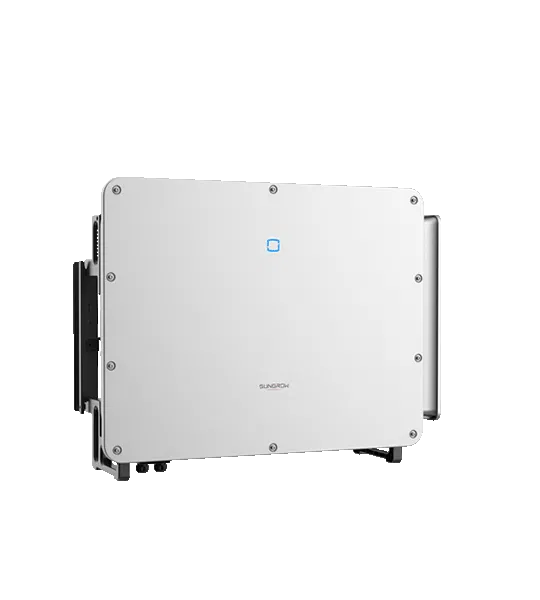

Sungrow Three-Phase Inverter Mechanical Specifications
Product No.: 1562330
Manufacturer Product No.: A0SG0179
Product Advantages:
- Higher current input, adaptable to all PV modules for greater design flexibility
- Global MPPT scanning, increasing production efficiency by over 2%.
- Intelligent PID recovery function
Sungrow SG150CX Three-Phase Inverter Product Features:
- AC Power: 150 kW
- Number of MPPTs: 7
- AC Connection: Three-phase
- Communication: RS485 / WLAN (optional) / Ethernet (optional)
- Protection Class: IP66
- Cooling: Active
Item Details
- Intrastat Country of Origin China
- Intrastat Product Number (HS-Code) 85044086
- Manufacturer Sungrow
- Manufacturer Article Designation SG150CX
Dimensions
- Length without packaging (mm) 360.00
- Height without packaging (mm) 795.00
- Width without packaging (mm) 1025.00
- Weight without packaging (kg) 96.500
Packaging
- Number of pallets per container 96
- Quantity per pallet 4
- Weight incl. packaging (kg) 134.500
- Size including packaging (cm) 112.00
- Width including packaging (cm) 222.00
- Packaging material Cardboard
- Number per container 384
- Length including packaging (cm) 93.00
Warranty
- Manufacturer Warranty Sungrow
Technical Data
| Topology |
transformerless |
| DC connector type |
MC4 Evo 2 |
| Interface 2 |
W-Lan |
| Protection class |
IP66 |
| Max. output current (A) |
250.70 |
| Minimum input voltage (V) |
180 |
| Max. input voltage (V) |
200 |
| AC surge protection |
type 2 |
| Interface 1 |
RS485 |
| Power supply phases |
3 |
| Max. number of string inputs |
21 |
| Display |
no display |
| Min. MPP input voltage range (V) |
180.00 |
| Rated AC power (kW) |
150.00 |
| Max. input current per MPPT (A). |
48 |
| Max. short-circuit current per MPPT (A) |
66 |
| Integrated DC switch |
yes |
| Max. total DC input current (A) |
336.00 |
| Max. efficiency (%) |
98.80 |
| Min. ambient temperature (°C) |
-30 |
| European efficiency (%) |
98.40 |
| Max. DC input voltage (V) |
1100.00 |
| Max. total short-circuit current (A) |
462.00 |
| Arc fault circuit interrupter |
yes |
| Number of MPPTs (pcs) |
7 |
| Max. MPP input voltage range (V) |
1000.00 |
| Max. DC generator power (kWp) |
210.00 |
| DC surge protection |
type 1 and type 2 |
| Max. AC power (kVA) |
165.00 |
