Description

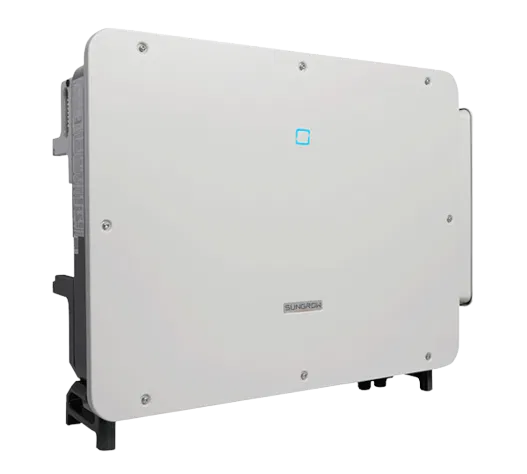

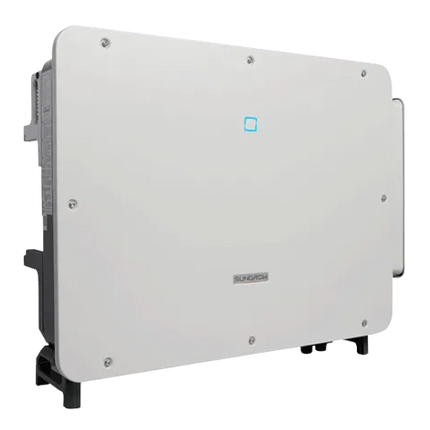

Mechanical characteristics SG125CX-P2 V21 Sungrow Three-Phase Inverter
Product No: 1558962
Manufacturer Product No: ASG02271
High efficiency:
- 12 MPPTs with a maximum efficiency of 98.5%.
- 15A DC current input, compatible with PV modules over 500W
- Dynamic shading optimization mode
Reduced investment:
- Compatibility with aluminum AC cables up to 240mm² Al AC cables
- Drawer cable gland supports pre-assembly of AC cables
Smart operation and maintenance:
- Diagnosis and protection of key components
- Smart IV curve diagnosis
- Grid fault recording function, easy for remote O&M
Proven safety:
- IP66 and C5 anticorrosion protection
- DC Type I+II SPD, AC Type II SPD
- Supports AFCI 2.0 function
Compatible with Sungrow optimizers
Item details SG125CX-P2 V21 Sungrow Three-Phase Inverter
- Intrastat country of origin China
- Instrastat product number (HS-Code) 85044086
- Manufacturer item designation SG125CX-P2
- Manufacturer Sungrow
Dimensions
- Width without packaging (mm) 795.00
- Weight without packaging (kg) 89.500
- Height without packaging (mm) 360.00
- Length without packaging (mm) 1020.00
Packaging
- Pallet weight (kg) 124.50
- Quantity per pallet 1
- Size including packaging (cm) 56.00
- Weight including packaging (kg) 124.500
- Packaging material Carton
- Palette dimensions LxWxH (mm) 1115x900x560
- Width including packaging (cm) 90.00
- Length including packaging (cm) 111.50
Warranty
- Product warranty (years) 5
- Manufacturer warranty Sungrow
Technical Data
| Topology |
transformerless |
| Max. total DC input current (A) |
360.00 |
| Max. short-circuit current per MPPT (A) |
40.0 |
| Interface 2 |
Bluetooth |
| DC connector type |
MC4 Evo 2 |
| Max. input current per MPPT (A). |
30.0 |
| Max. input voltage (V) |
200 |
| Max. number of string inputs |
24 |
| AC overvoltage protection |
type 2 |
| IP protection class |
IP66 |
| Interface 1 |
RS485 |
| Power phases |
3 |
| Max. efficiency (%) |
98.50 |
| Rapid shutdown |
no |
| Number of MPPTs (pcs) |
12 |
| Max AC power (kVA) |
125.00 |
| Boost converter |
yes |
| Display |
screenless |
| Min. input voltage (V) |
600 |
| Min. MPP input voltage range (V) |
180.00 |
| Integrated DC switch |
yes |
| Min. ambient temperature (°C) |
-30 |
| AC rated power (kW) |
125.00 |
| Max. DC input voltage (V) |
1100.00 |
| Grid protection |
yes |
| Arc fault circuit interrupter |
yes |
| Max. DC generator power (kWp) |
175.00 |
| Max. total short-circuit current (A) |
480.00 |
| Max. MPP input voltage range (V) |
1000.00 |
| Max. output current (A) |
181.10 |
| DC overvoltage protection |
type 1 and type 2 |
