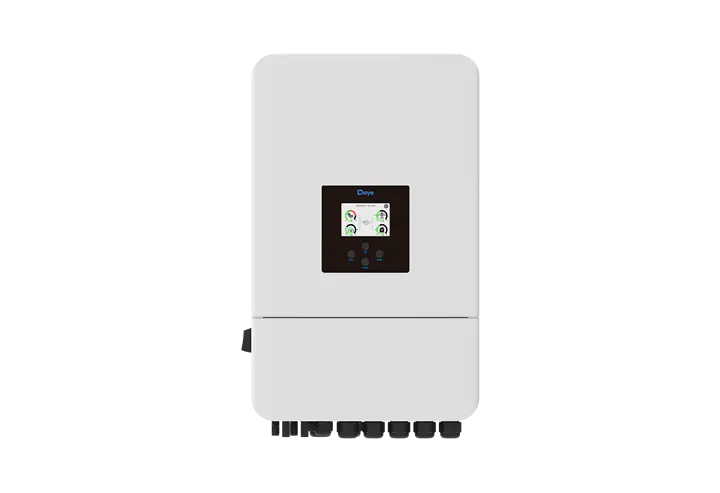

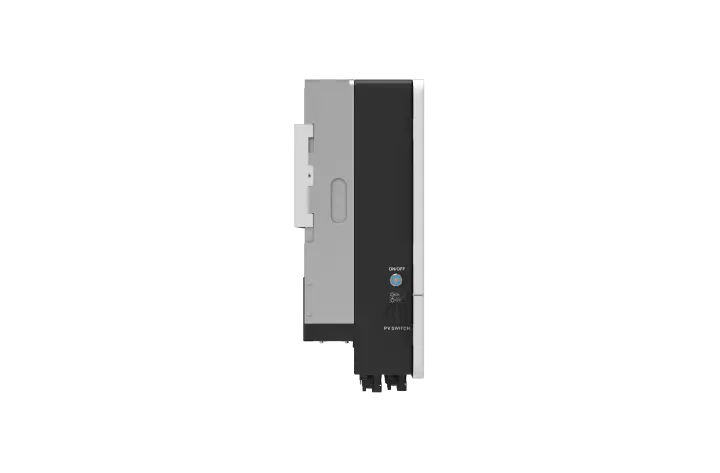

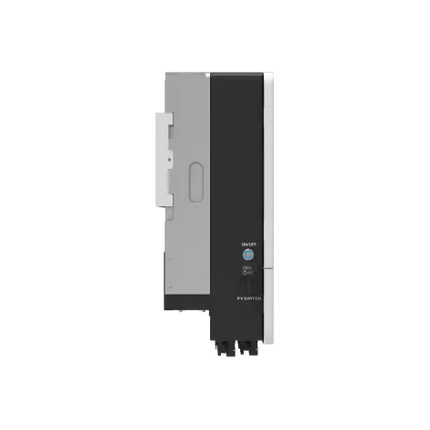

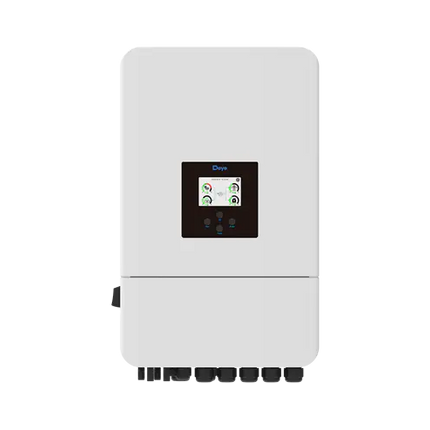

Deye 5 kW single-phase hybrid inverter – SUN-5K-SG05LP1-EU-AM2-P
The Deye SUN-5K-SG05LP1-EU-AM2-P is a 5 kW single-phase hybrid inverter designed for photovoltaic installations with low-voltage battery storage.
It manages photovoltaic panel production, home consumption, battery charging and discharging, as well as exchanges with the electrical grid. It can be used in on-grid and off-grid configurations, in accordance with Deye's installation guidelines.
Strengths of the Deye SUN-5K-SG05LP1-EU-AM2-P
-
AC nominal power: 5,000 W
-
Maximum apparent power: 5,500 VA
-
2 MPPT trackers
-
Maximum PV input power: 10,000 W
-
Maximum PV input power (rated): 8,000 W
-
Maximum PV voltage: 500 V
-
MPPT range: 150 to 425 V
-
Maximum PV current: 18 + 18 A
-
Low-voltage battery: 40 to 60 V
-
Maximum charge current: 120 A
-
Maximum discharge current: 120 A
-
Compatible with lithium-ion and lead-acid batteries
-
On-grid and off-grid operation
-
AC coupling to upgrade an existing photovoltaic installation
-
Up to 16 compatible inverters in parallel
-
Up to 6 programmable time periods for charging and discharging
-
Color touchscreen LCD
-
IP65 protection
Compatible batteries
The Deye SUN-5K-SG05LP1-EU-AM2-P works with low-voltage batteries from 40 to 60 V, of the lithium-ion or lead-acid type.
For lithium-ion batteries, the inverter features a charging strategy with BMS auto-adaptation.
Also discover our compatible lithium batteries to build your photovoltaic installation with storage.
Important: battery model, BMS, and version compatibility must always be checked before installation.
Photovoltaic input
Maximum PV input power: 10,000 W
Maximum PV input power (rated): 8,000 W
Maximum PV voltage: 500 V
Start-up voltage: 125 V
MPPT voltage range: 150–425 V
Nominal PV voltage: 370 V
Maximum PV current: 18 + 18 A
Maximum short-circuit current: 27 + 27 A
Number of MPPTs: 2
Number of strings: 1 + 1
Battery
Type: Lithium-ion or lead-acid
Battery voltage range: 40–60 V
Maximum charge current: 120 A
Maximum discharge current: 120 A
Number of battery inputs: 1
Lithium battery management: BMS auto-adaptation
AC output
Nominal power: 5,000 W
Maximum apparent power: 5,500 VA
Nominal voltage: 220 / 230 V
Grid connection: L + N + PE
Nominal frequency: 50 / 60 Hz depending on configuration
In off-grid mode, the inverter can provide a peak power of up to 2 times its nominal power for 10 seconds, subject to Deye's specified conditions.
Intelligent battery management
The Deye SUN-5K-SG05LP1-EU-AM2-P allows you to program up to 6 battery charge and discharge time periods.
This feature allows you to adapt storage usage to consumption habits and different tariff periods.
The inverter also supports AC coupling, allowing for integration into certain existing photovoltaic installations.
Parallel operation
Deye allows for the connection of up to 16 compatible units in parallel for on-grid and off-grid applications.
The system also supports multiple batteries in parallel, provided that the manufacturer's and the battery manufacturer's guidelines are followed.
Efficiency
Maximum efficiency: 97.6%
European efficiency: 96.5%
MPPT efficiency: > 99%
Protections
The Deye SUN-5K-SG05LP1-EU-AM2-P includes:
-
DC reverse polarity protection;
-
AC output overcurrent protection;
-
AC output overvoltage protection;
-
AC short-circuit protection;
-
thermal protection;
-
insulation impedance monitoring;
-
DC component monitoring;
-
anti-islanding protection;
-
residual current detection;
-
Type II DC and Type II AC surge protection.
AFCI is available as an option depending on the configuration.

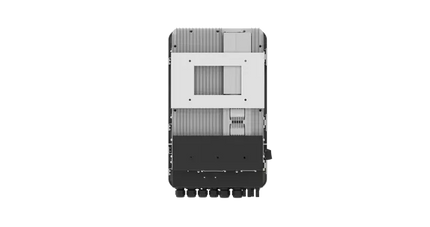

Design and installation
Dimensions: 330 × 580 × 232 mm, excluding connectors and brackets
Weight: 24.9 kg
Protection rating: IP65
Operating temperature: -40 °C to +60 °C, with derating above 45 °C
Permissible humidity: 0–100%
Permissible altitude: up to 2,000 m
Noise level: < 30 dB
Cooling: intelligent air cooling
Topology: non-isolated
Communication and monitoring
Communication interfaces: RS485 / RS232 / CAN
Available monitoring modes depending on configuration and accessories are:
GPRS / Wi-Fi / Bluetooth / 4G / LAN
Frequently Asked Questions
What photovoltaic panel power can be connected to the Deye 5 kW?
For the SUN-5K-SG05LP1-EU-AM2-P, Deye indicates a maximum PV input power (rated) of 8,000 W and a maximum PV input power (total) of 10,000 W. String sizing must also respect the voltage and current limits of the MPPT inputs.
Which battery should be used with the Deye 5 kW?
This inverter works with low-voltage 40 to 60 V batteries, lithium-ion or lead-acid. For a lithium battery, BMS compatibility must be verified before installation.
What is the maximum charge current of the Deye 5 kW SG05?
The SUN-5K-SG05LP1-EU-AM2-P accepts a maximum charge and discharge current of 120 A.
Does the Deye 5 kW have two MPPTs?
Yes. It features 2 MPPT trackers with 1 string per MPPT.
Is the Deye SUN-5K-SG05LP1-EU-AM2-P single-phase?
Yes. It is a 5 kW single-phase hybrid inverter.
Can several Deye inverters be connected in parallel?
Yes. Deye indicates the possibility of connecting up to 16 compatible units in parallel, provided the manufacturer's installation conditions are met.
Warranty
The Deye SUN-5K-SG05LP1-EU-AM2-P hybrid inverter comes with a 5-year warranty, according to the warranty conditions applicable to the product.
