Description

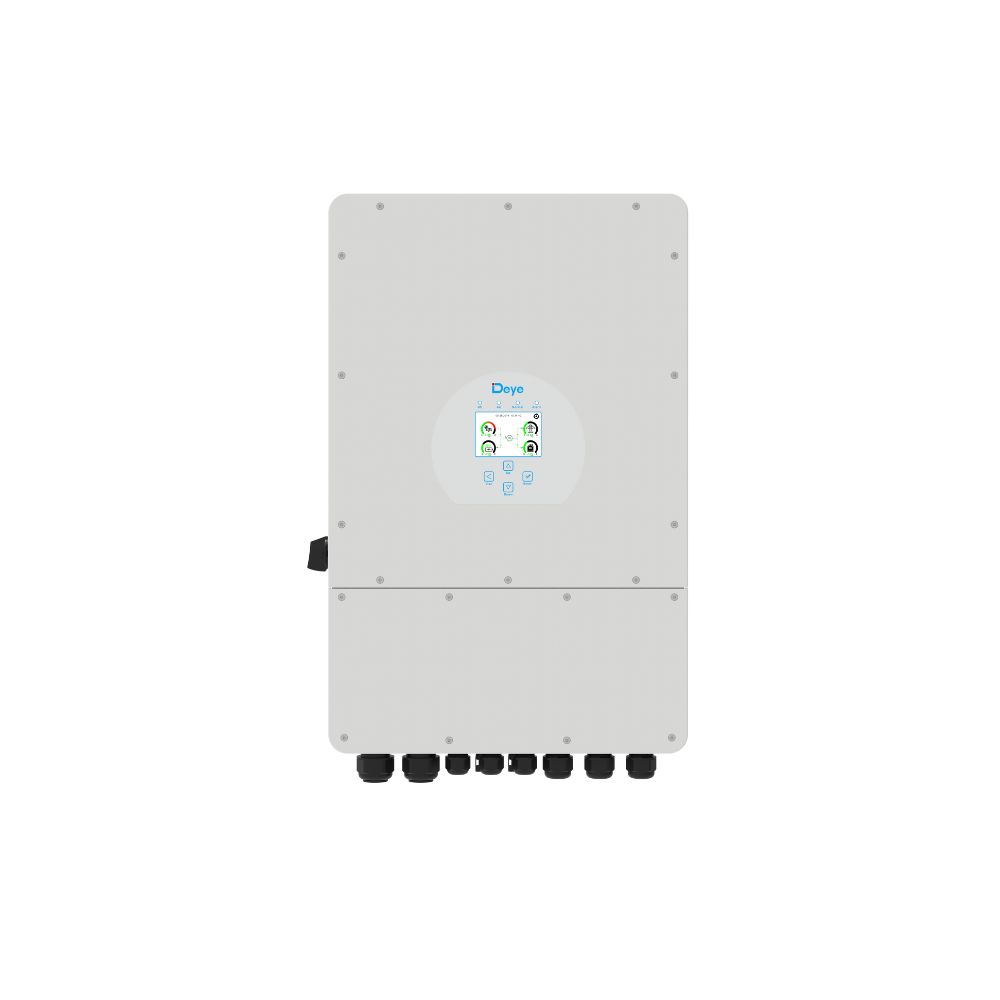

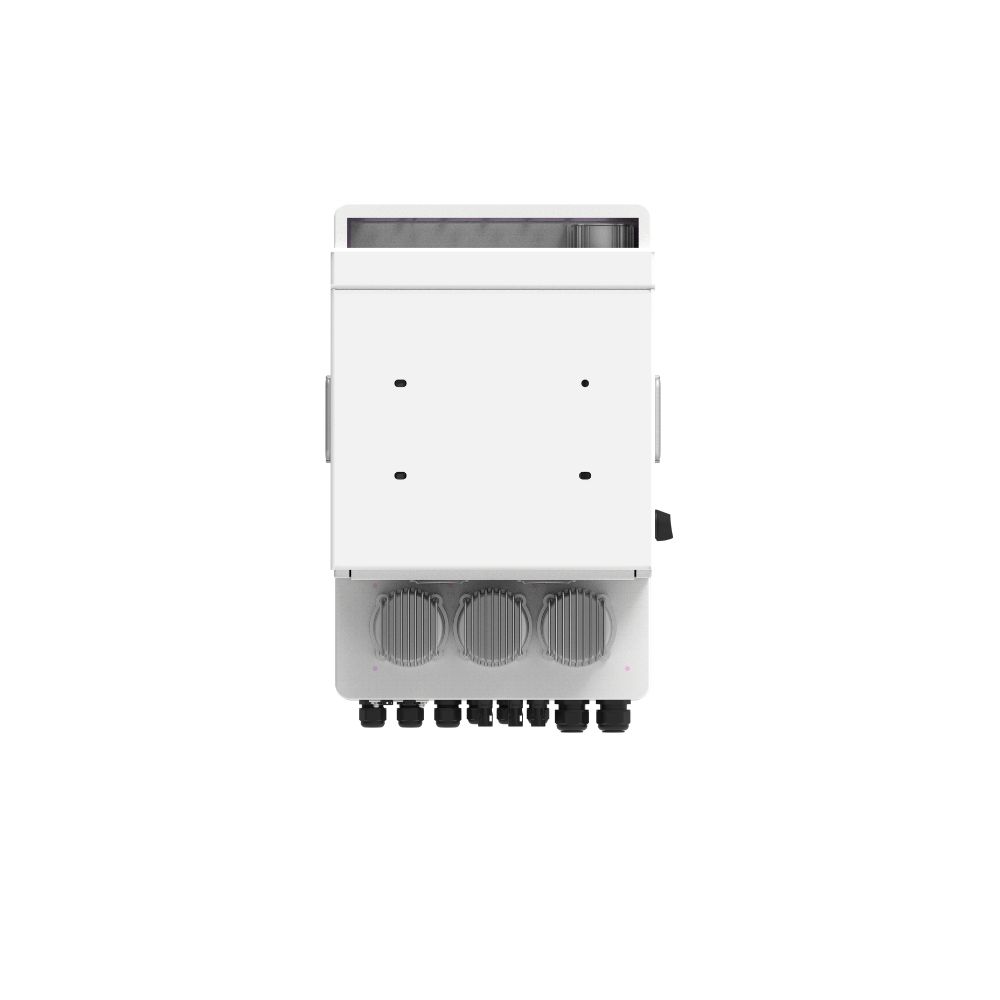

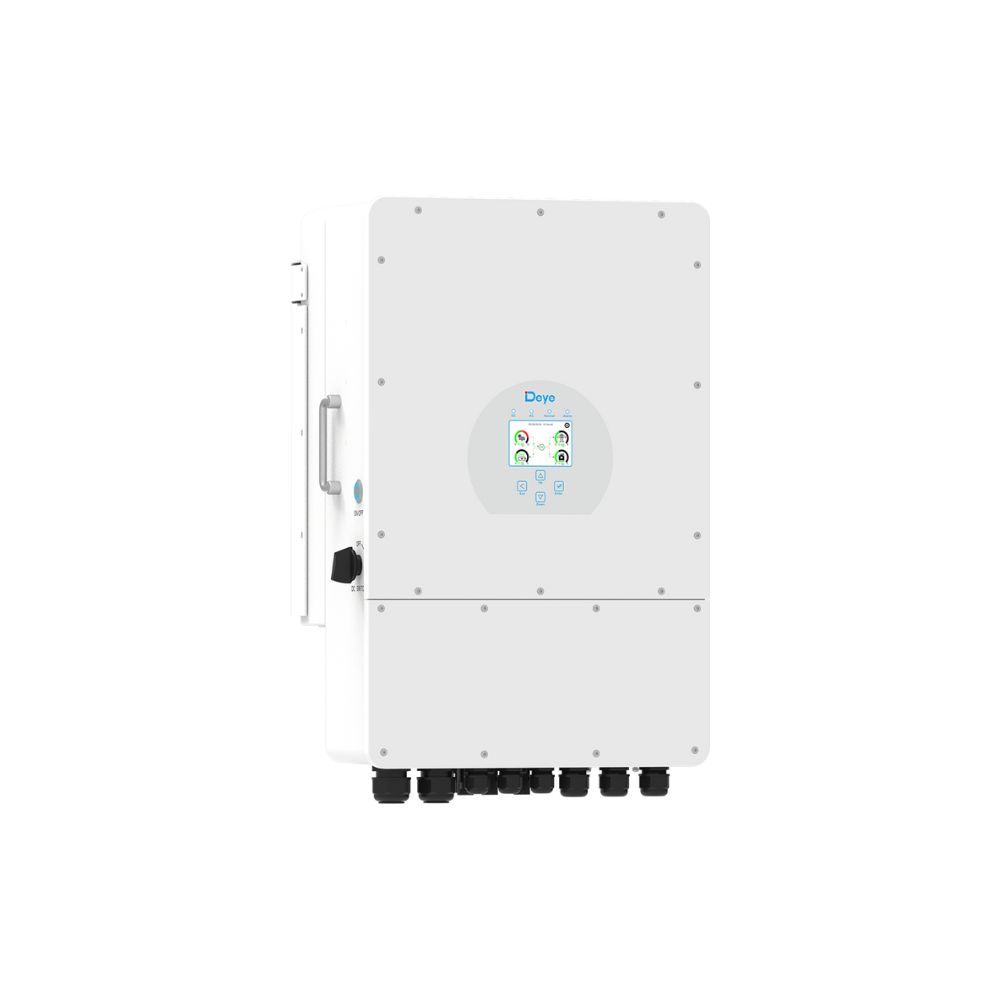

- Three-phase Hybrid Inverter 12 kW SUN-12K-SG05LP3-EU Dual MPPT charge controller 26A / 13A
- PV MPPT input voltage: 200 to 650 Vdc (starting at 160 Vdc)
- AC output power: 12000 W
- Operates in on-grid and off-grid mode
- Manufacturer reference: SUN-12K-SG05LP3-EU
- Compatible with lithium batteries:
-
DEYE : 5.12 kWh SE-G5.1Pro-B / 6.14 kWh RW-M6.1-B
-
Pylontech : US2000 / US3000 / US5000
-
Dyness : B4850 / DL5C
-
V-TAC and other similar models
- Integrated galvanic isolation – no need for TYPE B enclosure
Main features:
-
Weight: 40 kg
-
Dimensions: 65 × 55 × 45 cm
-
Connection: RS232, RS485, WiFi
-
Maximum DC charging current: 240A
-
Parallel function: Yes
-
Grid injection: Yes
-
Power: 12 kW
-
Maximum PV power: 15600 W
-
PV Max VOC: 800 VDC
-
MPPT Voltage: 200-650 VDC
-
Type: Hybrid, Three-phase
-
Battery voltage: 40V-60V
-
Compatible batteries: Lithium, Lead-acid
High charge/discharge efficiency:
The inverter supports up to 240A charge and discharge.
It allows for rapid energy storage and retrieval.
This improves system responsiveness.
Diesel generator compatibility:
It is compatible with diesel generators.
It can store backup energy.
This improves power continuity.
Parallel operation:
It supports up to 10 inverters in parallel.
The system operates in grid-tied or off-grid mode.
Batteries can also be paralleled.
Adaptability to renovations:
It can be integrated into existing systems via AC coupling.
This allows for modernization without major modification.
Upgrades are simple and quick.
Advanced battery management:
It supports six charge and discharge cycles.
It optimizes energy management.
It is compatible with 48V smart batteries.
Asymmetrical output:
It handles 100% asymmetrical output.
Each phase can supply up to 50% of the power.
This ensures optimal electrical stability.
Technical specifications _ Three-phase Hybrid Inverter 12 kW
-
Battery compatibility: The inverters work efficiently with lead-acid and lithium-ion batteries, adapting to a voltage range of 40-60V, with a self-adaptive Battery Management System (BMS).
-
PV input characteristics: They include multiple Maximum Power Point (MPP) trackers and a flexible number of strings per MPP tracker, supporting a PV input power range of 6,500W to 15,600W, depending on the model.
-
Efficiency ratings: The maximum efficiency is an impressive 97.6%, with a European efficiency of 97% and an MPPT efficiency greater than 99%. This ensures maximum energy conversion and minimal losses.
-
Comprehensive protection: The inverters are equipped with numerous safety features, including DC reverse polarity protection, AC output overcurrent and overvoltage protection, AC output short-circuit protection, thermal protection, and extensive monitoring capabilities.
Environmental and physical specifications
-
Operating conditions: The inverter operates from -40°C to +60°C with derating above 45°C.
It supports high humidity and up to 2,000 m altitude.
-
Protection and resistance: It is silent (<55 dB) and IP65 certified for outdoor use.
-
Design: It features smart air cooling and a compact design.
-
Warranty and compliance: It offers a 5-year warranty, extendable to 10 years, and complies with international standards.
Communication and monitoring
-
Interfaces and monitoring options: These inverters offer several communication options, including GPRS, WIFI, Bluetooth, 4G, and LAN (optional). They also include RS485, RS232, and CAN interfaces to ensure seamless integration and monitoring.
