Description

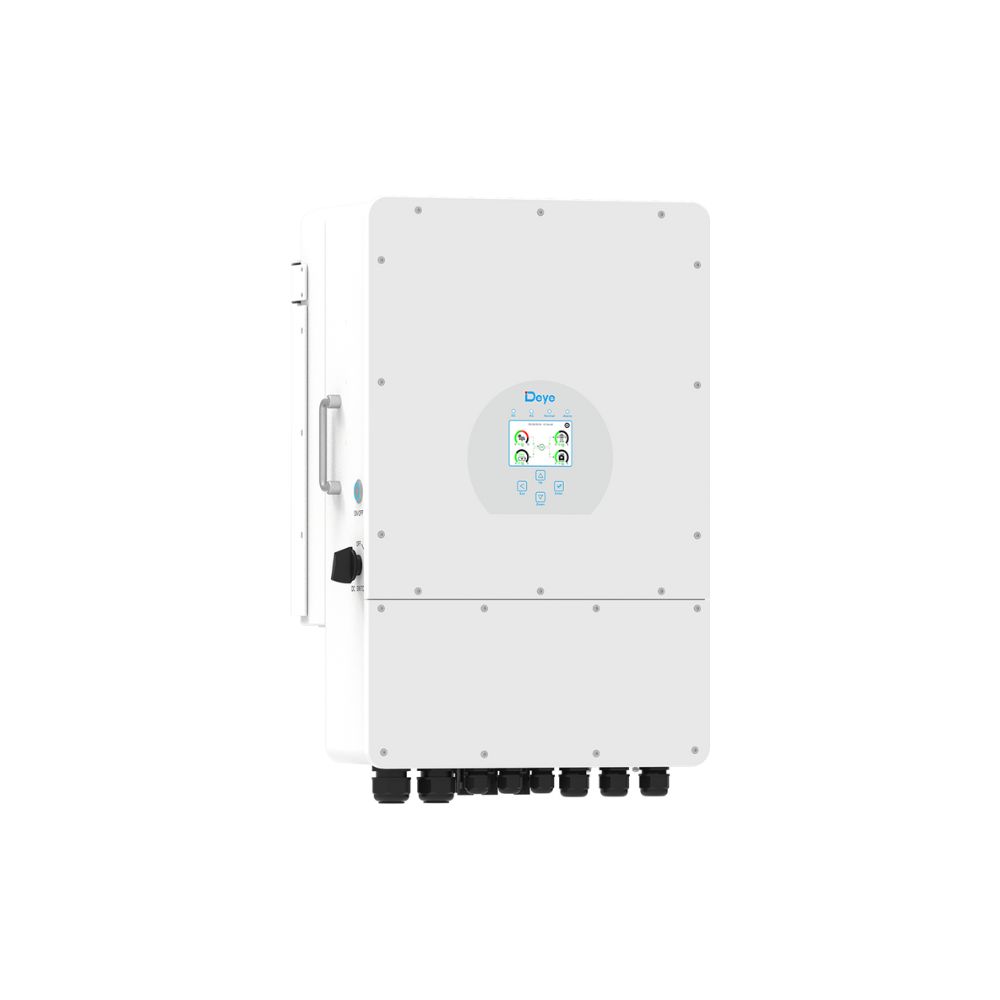

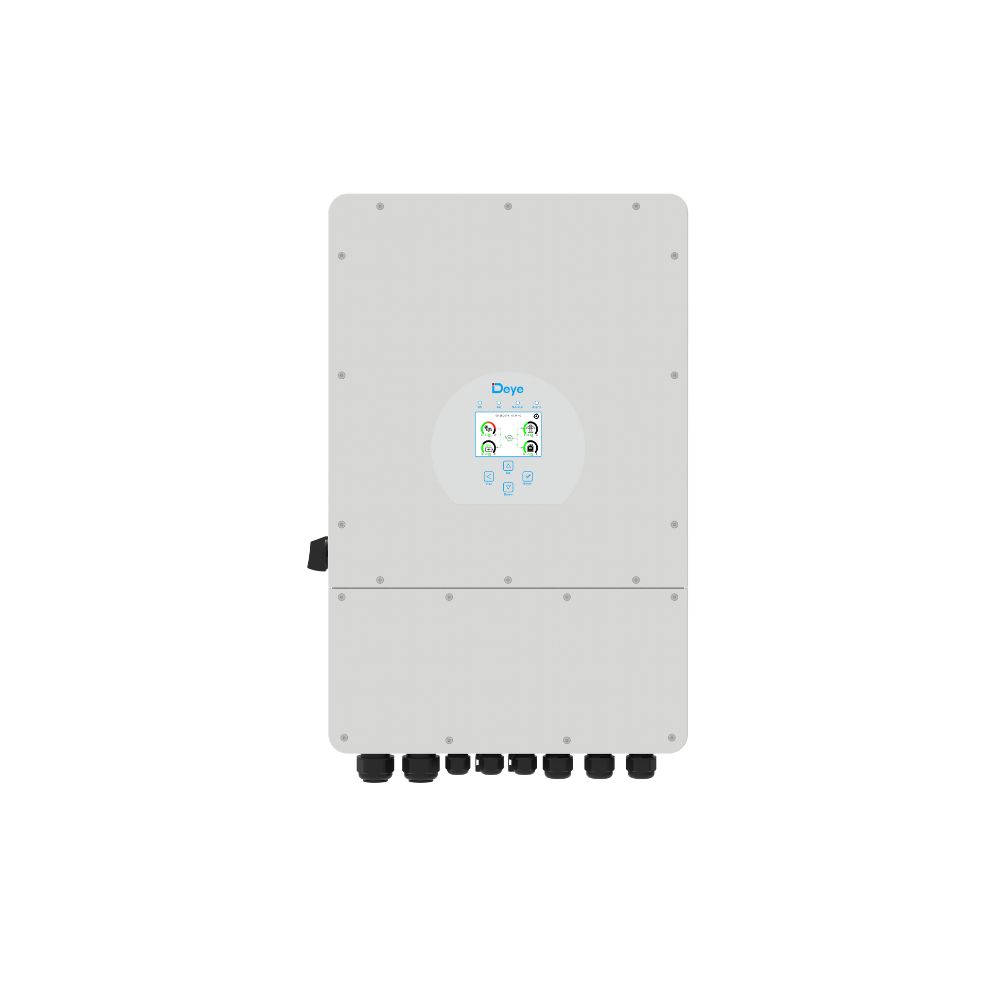

The Deye SUN-5K-SG04LP3-EU 5 kW Three-Phase Hybrid Inverter is designed for residential and commercial photovoltaic installations.
- Dual MPPT charge controller 13A / 13A
- PV MPPT input voltage: 200 to 650 Vdc (starts at 160 Vdc)
- AC output power: 5000 W
- Operates in on-grid and off-grid modes
- Compatible with lithium batteries:
-
DEYE: 5.12 kWh SE-G5.1Pro-B / 6.14 kWh RW-M6.1-B
-
Pylontech: US2000 / US3000 / US5000
-
Dyness: B4850 / DL5C
-
V-TAC and other similar models
- Integrated galvanic isolation – no need for TYPE B enclosure
Key features:
-
Weight: 30 kg
-
Dimensions: 65 × 55 × 45 cm
-
Connection: RS232, RS485, WiFi
-
Maximum DC charging current: 120A
-
Parallel function: Yes
-
Grid injection: Yes
-
Power: 5 kW
-
Maximum PV power: 6500 W
-
PV Max VOC: 800 VDC
-
MPPT Voltage: 200-650 VDC
-
Battery Voltage: 40V-60V
-
Compatible batteries: Lithium, Lead-acid
High charge/discharge efficiency:
-
High charge/discharge efficiency: The inverter supports a charge and discharge current of up to 240A. This allows for rapid energy management. It improves system responsiveness.
-
Diesel generator compatibility: These inverters can store energy from diesel generators, improving energy resilience in environments where backup power sources are needed.
-
Parallel operation capability: Up to 10 inverters can be connected in parallel. The system becomes scalable and flexible. It supports on-grid and off-grid installations.
-
Adaptability for renovations: The inverter can be integrated into existing AC systems. It allows for simple and quick modernization without major modifications.
-
Advanced battery management: The system supports six charge ranges. It automatically optimizes energy management. It improves overall storage efficiency.
-
Asymmetrical output management: The system supports 100% asymmetrical output. Each phase can provide up to 50% of the power. This ensures better electrical stability.
Technical specifications of the 5 kW Three-Phase Hybrid Inverter
-
Battery compatibility: The inverters are compatible with lead-acid and lithium-ion batteries. The voltage range is 40 to 60V. The BMS is self-adaptive.
-
PV input characteristics: The system integrates multiple MPPT trackers. It accepts PV power from 6500 W to 15,600 W. The number of strings depends on the model.
-
Efficiency ratings: The maximum efficiency is an impressive 97.6%, with a European efficiency of 97% and an MPPT efficiency greater than 99%. This ensures maximum energy conversion and minimal losses.
-
Comprehensive protection: The inverters feature comprehensive integrated protections. They protect against overvoltage, overcurrent, and short circuit. Thermal and polarity protection is included.
Environmental and physical specifications
-
Operating temperature: The inverters operate between -40°C and +60°C. Power derating applies above 45°C.
-
Noise and penetration protection: Noise levels are kept below 55 dB and they have an IP65 rating for outdoor use, ensuring their durability in various environmental conditions.
-

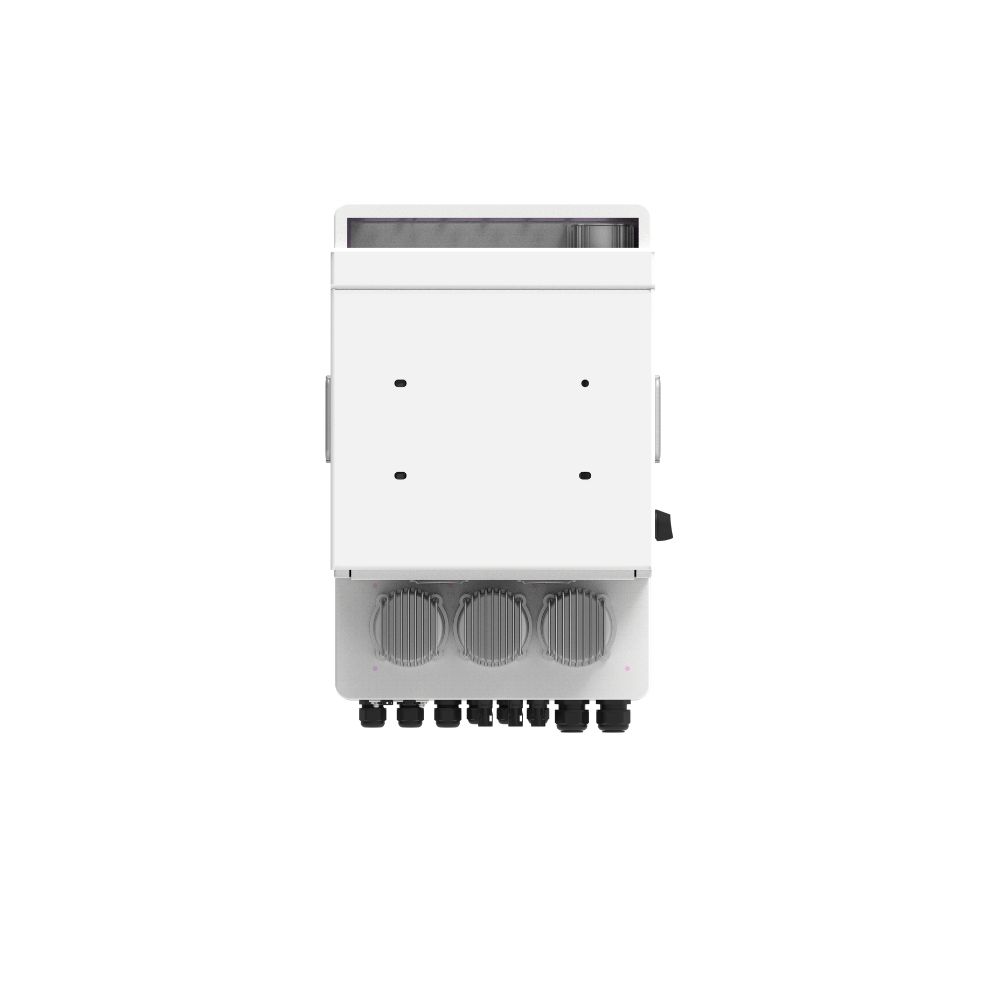

Design and cooling: The inverters feature intelligent air cooling, compact dimensions (422 mm x 658 mm x 254 mm, excluding connectors and brackets) and a weight of 38 kg.
Communication and monitoring
The 5 kW Three-Phase Hybrid Inverter offers several communication options, including GPRS, WiFi, Bluetooth, 4G, and LAN (optional). It also integrates RS485, RS232, and CAN for easy monitoring and integration.
