Description

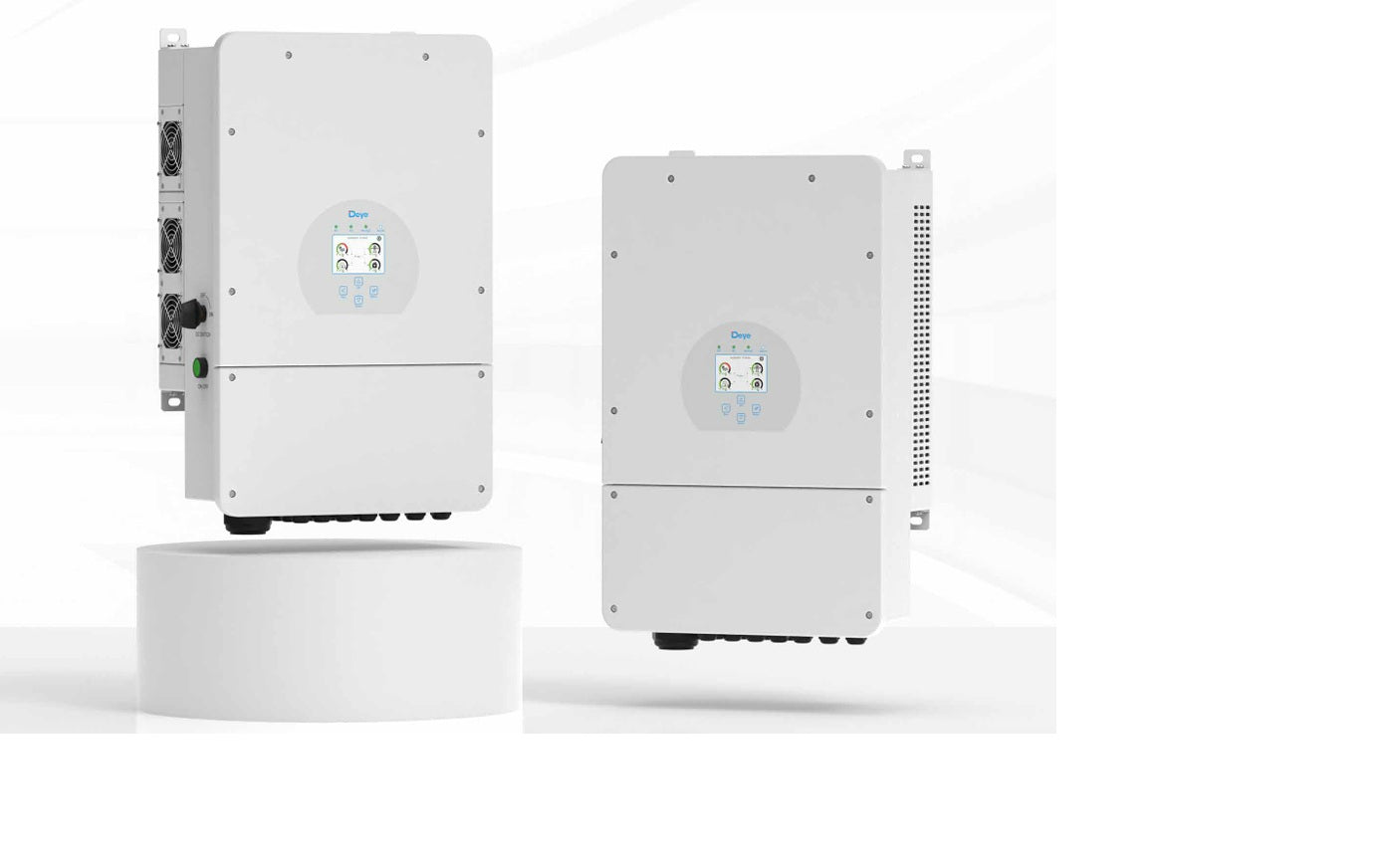

The Deye SUN-(5-25)K-SG01HP3-EU hybrid inverter series is meticulously engineered to provide superior performance for modern solar power systems. It addresses a wide spectrum of energy needs with models ranging from 5 kW to 25 kW, making it suitable for both residential and commercial applications. This inverter series is designed to meet the dynamic demands of power systems, ensuring reliability, flexibility, and efficiency in energy management.
Key Features:
-
Weight: 50 kg
-
Dimensions: 53 x 90 x 30 mm (excluding connectors and brackets)
-
Connection: RS232, RS485, WiFi
-
Maximum DC charge current: 37A
-
Parallel function: Yes
-
Grid injection: Yes
-
Power: 10 kW
-
Maximum PV power: 13000 W
-
Max PV VOC: 1000 VDC
-
MPPT Voltage: 150-850 VDC
-
Type: Hybrid, Three-phase
-
Battery voltage: 160-700 V
-
Supported batteries: Lithium,
-
High Charge/Discharge Efficiency:
- Deye SUN series inverters offer a maximum charge/discharge current of 50A, enabling fast and efficient energy storage and retrieval. This feature helps users get the most out of their solar power systems by effectively managing energy storage.
-
Diesel Generator Support:
- Another remarkable capability is the support for storing energy from diesel generators. This feature provides a versatile backup power option, ensuring that excess energy generated from diesel can be efficiently saved and managed.
-
Parallel Operation:
- The inverters support parallel operations, allowing up to 10 units to be connected. This scalability is crucial for expanding power systems in both grid-tied and off-grid applications, meeting increasing energy demands.
-
Optimal Battery Compatibility:
- Designed for high-voltage lithium-ion batteries, Deye SUN inverters support a voltage range of 160-700V. This wide range of compatibility ensures higher efficiency and allows the system to adapt to different battery specifications.
-
AC Coupling for Retrofit Applications:
- Designed with flexibility in mind, these inverters can be AC-coupled to retrofit existing solar systems. This capability provides a seamless upgrade path for systems looking to enhance their solar power installations with hybrid inverter technology.
-
Advanced Energy Management:
- The inverter series features the ability to set up to 6 different periods for battery charging and discharging. This advanced feature allows for optimal energy utilization based on specific demands and energy availability, providing cost savings and increased efficiency.
Technical Highlights
Battery Input:
-
Type: Lithium-ion
-
Voltage Range: 160-700V
-
Max. Charge/Discharge Current: 50A
PV String Input:
-
Max. PV Input Power: Up to 32,500W
-
Max. PV Input Voltage: 1000V
-
MPPT Voltage Range: 150-850V
AC Input/Output:
-
Rated Power: 5000W to 25000W
-
Apparent Power: Up to 27,500VA
-
Voltage Range: 220/380V, 230/400V
-
Frequency Range: 50/60 Hz
Efficiency:
-
Max. Efficiency: 97.6%
-
European Efficiency: 97.0%
-
MPPT Efficiency: >99%
Protection Features:
- Includes built-in protections such as DC reverse polarity connection, AC overcurrent, AC overvoltage, short circuits, thermal protection, etc.
Environmental and Safety Standards:
-
Temperature Range: -40 to +60°C
-
Ingress Protection Rating: IP65
-
Altitude: 0-2000m
Compliance:
- Complies with IEC/EN standards, including 61000-6-1/2/3/4 and 62109-1/2.
Monitoring and Communication:
-
Optional Monitoring: GPRS, WIFI, Bluetooth, 4G, LAN
-
Interfaces: RS485, RS232, CAN
General Data:
-
Dimensions: 408x638x237mm (excluding connectors and brackets)
-
Weight: 30.5kg
-
Cooling: Natural cooling/smart air cooling
-
Warranty: 5 years standard, 10 years optional depending on installation site
The Deye SUN-(5-25)K-SG01HP3-EU three-phase hybrid inverters provide a robust, efficient, and versatile solution designed to meet the evolving demands of modern solar power systems.
The combination of advanced features, high efficiency, and scalability makes it an exceptional choice for maximizing solar energy utilization and enhancing overall system performance.
