Description

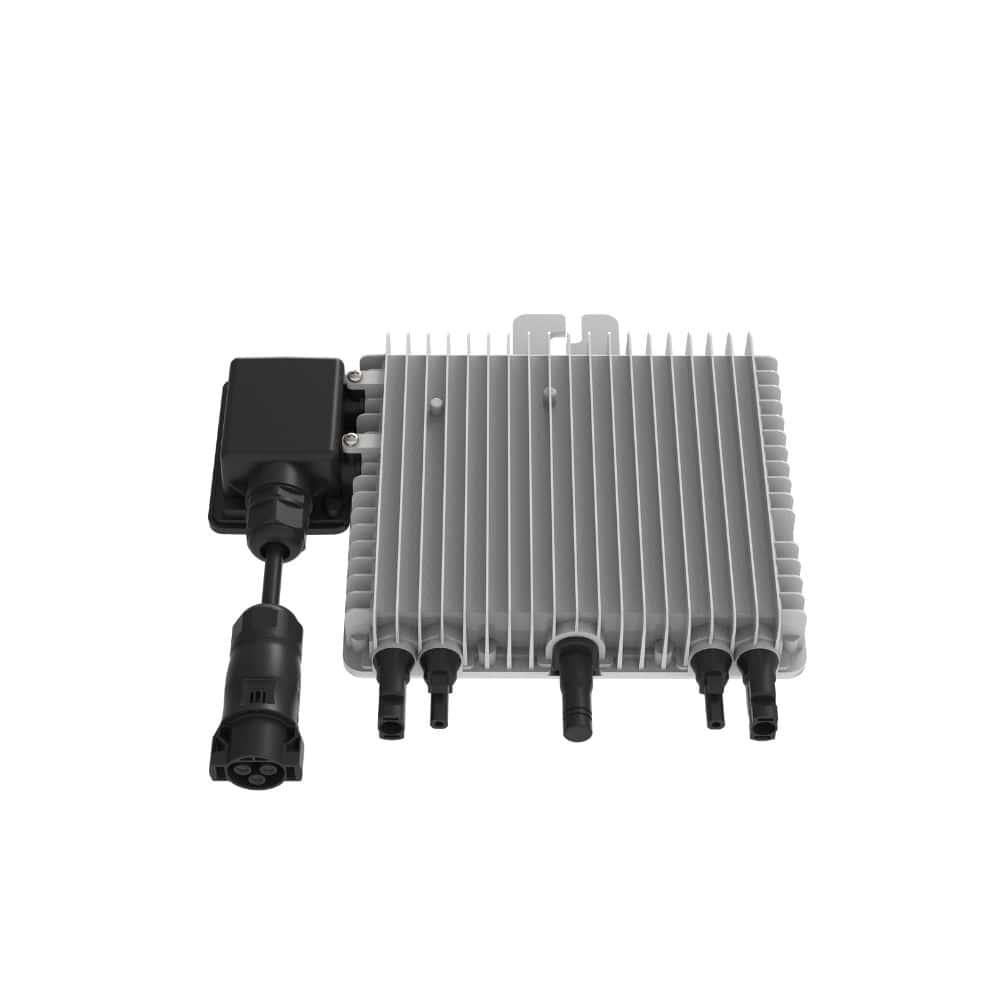

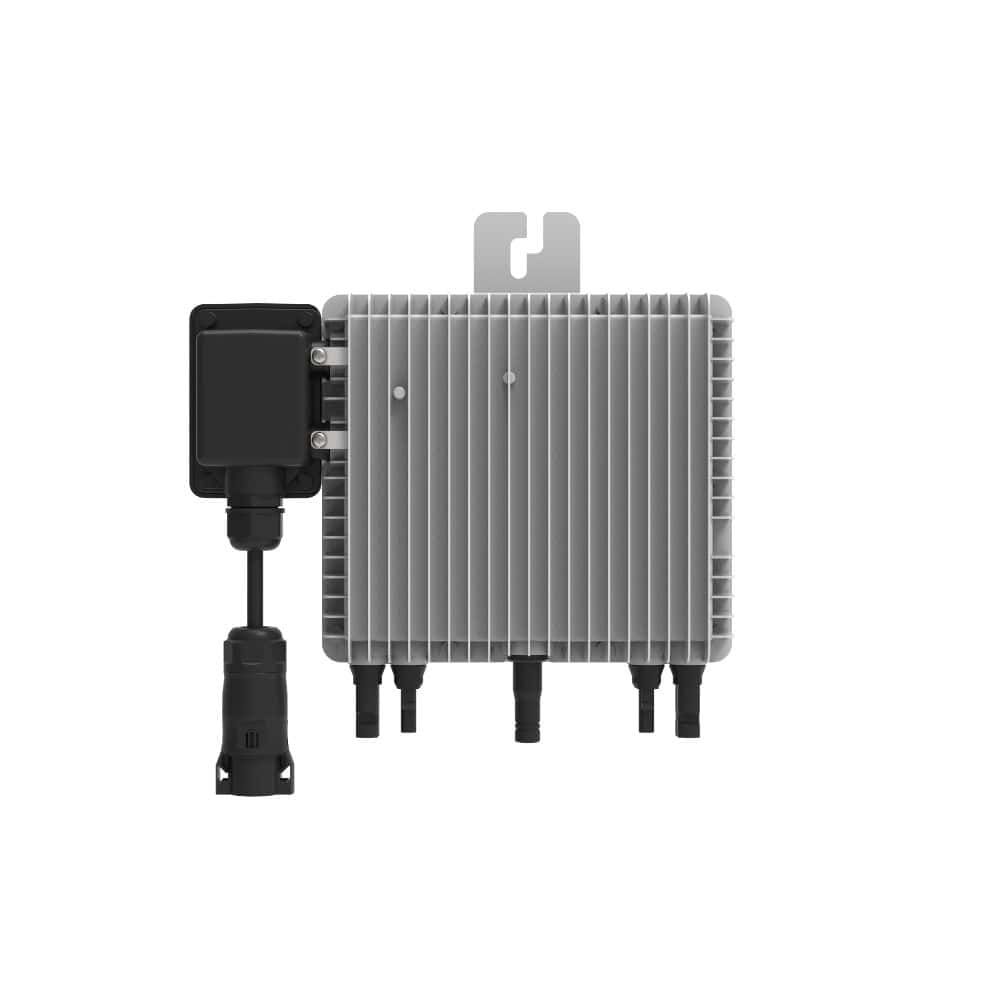

The SUN-M60/80/100G4-EU-Q0 series microinverter is a cutting-edge solution designed for efficient and reliable performance in photovoltaic (PV) systems. Featuring dual maximum power point (MPP) trackers, module-level monitoring, and an IP67 rating, this microinverter series ensures superior power conversion and durability for a range of solar power applications.

Main features

• Dual MPPT : Equipped with two MPP trackers per module, maximizing energy harvest by optimizing the power conversion of each PV module.
• Rugged Protection : IP67 rating ensures dust and water resistance, improving the longevity and reliability of the inverter in various environments.
• Wi-Fi Integration : Built-in Wi-Fi makes it easy to monitor and manage the system in real time through an intuitive interface.
• Quick Stop Function : Improves safety by complying with DIN VDE V 0126-95, ensuring AC discharge in <100ms for quick stop.
• Ease of installation : Designed for quick-set balcony PV systems, simplifying the installation process and minimizing installation time.
• Extended Relay Life : External relay designed for low temperature operation, providing long life and easier maintenance.
• Long-term reliability : With a 25-year design life and a 15-year warranty, providing assurance of long-term operation and support.

Technical specifications

• Model variations :
  • SUN-M60G4-EU-Q0
  • SUN-M80G4-EU-Q0
  • SUN-M100G4-EU-Q0
• PV Input :
  • Max. Input Power: 210-420/560/700W (2pcs)
  • Max. Input Voltage: 60V
  • Starting voltage: 20 V
  • MPPT voltage range: 25-55V
  • Max. Operating PV Input Current: 13+13A
  • Max. Input short circuit current: 19.5 + 19.5 A
• AC output :
  • Nominal active power: 600-1000W
  • Max. Apparent power: 600-1000VA
  • Network connection: L/N/PE
  • Rated output voltage: 220/230V (range: 0.85Un-1.1Un)
  • Nominal output frequency: 50/60 Hz
  • Power factor: 0.9 leading to 0.9 lagging
  • Total harmonic distortion (THDi): <3%
  • Max. Efficiency: 96.5%
  • European efficiency: 96.0%
  • MPPT efficiency: > 99%

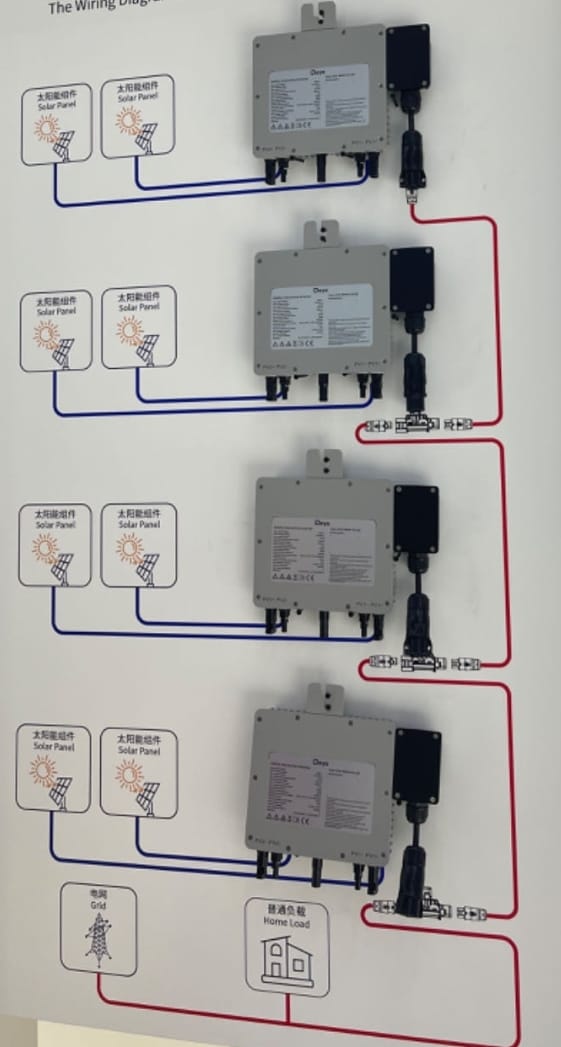

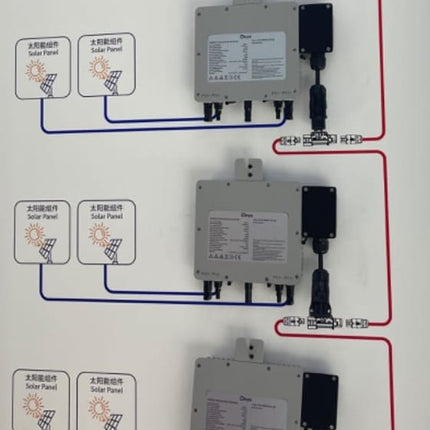

  • Max. Units per branch: up to 8 units
• Protective functions :
  • DC polarity reverse connection protection
  • AC output overcurrent protection
  • AC output surge protection
  • AC output short circuit protection
  • Thermal protection
  • DC Terminal Insulation Monitoring
  • Power grid monitoring
  • Protection of the islands
  • Earth fault detection
  • Overvoltage protection against load drops
• Environmental specifications :
  • Operating temperature: -40 to +65°C (Derating above 45°C)
  • Permissible ambient humidity: 0-100%
  • Authorized altitude: 2000 m
  • Noise level: ≤25dB
• Physical characteristics :
  • Ingress Protection Rating: IP67
  • Cooling method: natural cooling.
  • Dimensions: 280.5×190×40 mm (excluding connectors and brackets)
  • Weight: 3 kg
• Certifications and standards :
  • Network regulations: IEC 61727, IEC 62116, IEC 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105
  • Safety and EMC standards: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2

Click on the icons to download the following files:

Technical sheet

Specifications

• Marque: Deye

Pros and cons

• Énergie propre et renouvelable
• Grande fiabilité et longue durée de vie
• Faibles besoins en maintenance
• La production varie selon les conditions météorologiques
• Nécessite une installation correcte pour éviter les problèmes
