Description
Mechanical Characteristics
- 96.7% EU Efficiency
- Lightweight and compact with plug-n-play connectors
- Power Line Communication (PLC) between components
- Faster installation thanks to simple two-wire cabling
- Over one million cumulative hours of testing
- Class II double-insulated enclosure
- Optimized for the latest high-power photovoltaic modules
- Compliant with advanced support for the latest grids
- Automatic remote updates meeting the latest grid requirements
- Configurable to support various grid profiles
- 25-year limited warrantyMax input power: 480WP
- Max input power: 480W
- Max output power: 330VA
- Rated output power: 325VA
- Max number of micros:
- on a 20A breaker: 11 (L+N) / 33 (3L+N)
- on the AC bus: 8 (L+N) / 18 (3L+N)
Item Details
- Intrastat country of origin China
- Intrastat product number (HS-Code) 85044085
- Manufacturer Enphase

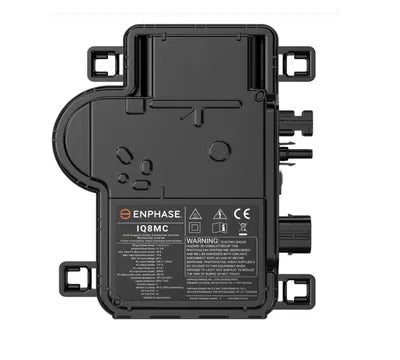

- Manufacturer item description IQ8MC-72-M-INT
Dimensions
- Width without packaging (mm) 175.00
- Weight without packaging (kg) 1.100
- Length without packaging (mm) 212.00
- Height without packaging (mm) 30.00
Packaging
- Quantity per pallet 756
- Weight including packaging (kg) 1.190
- Size including packaging (cm) 28.00
- Quantity per large box 18
- Width including packaging (cm) 49.00
- Packaging material Cardboard
- Length including packaging (cm) 40.00
Warranty
- Manufacturer warranty Enphase
- Product warranty (years) 25
Technical Data
| DC Connector Type |
MC4 |
| Max total short-circuit current (A) |
25.00 |
| IP Protection Class |
IP67 |
| Rated AC Power (kW) |
0.33 |
| European Efficiency (%) |
96.70 |
| Min. ambient temperature (°C) |
-40 |
| Topology |
transformer |
| Max AC Power (kVA) |
0.33 |
| Boost converter |
no |
| Max DC generator power (kWp) |
0.48 |
| Max input voltage (V) |
22 |
| Arc fault circuit interrupter |
no |
| Protection class |
IP67 |
| Max total DC input current (A) |
14.00 |
| Max DC input voltage (V) |
60.00 |
| Minimum input voltage (V) |
18 |
| Min. MPP input voltage range (V) |
25.00 |
| Interface 1 |
PLM |
| Max. MPP input voltage range (V) |
45.00 |
| Max output current (A) |
1.43 |
| Maximum efficiency (%) |
97.45 |
