Description
Manufacturer product no. R520075-K + R460001

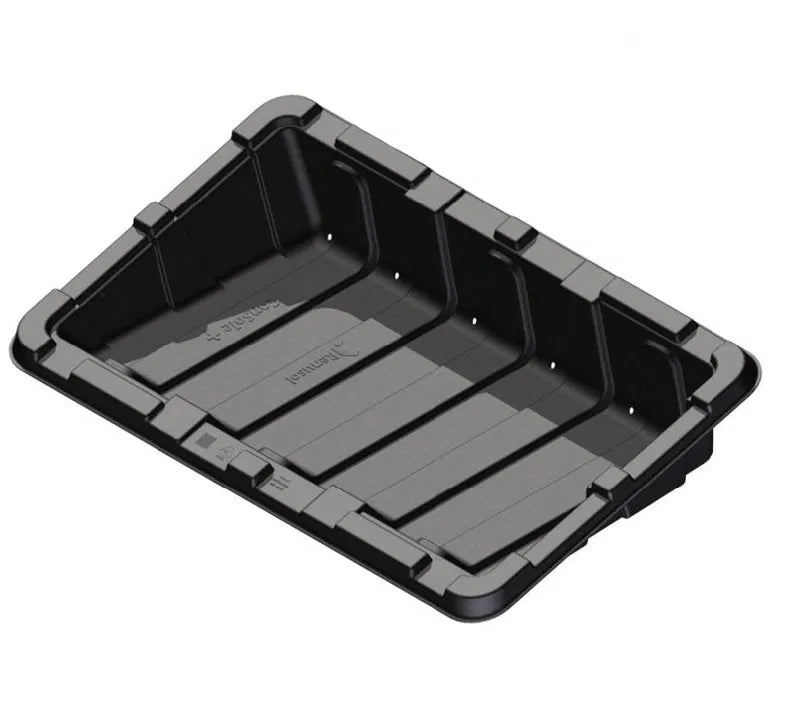

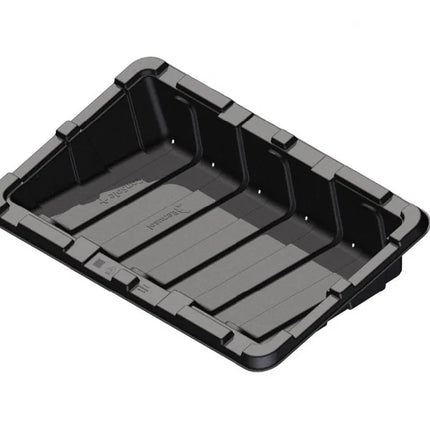

The Renusol Console+ ballast tray is a mounting solution for solar panels designed for ground-mounted and flat roof installations. This photovoltaic mounting system allows for installation without drilling by using ballast made of gravel, concrete blocks, or other suitable materials.
With an inclination of 15°, the Console+ support ensures a stable and durable fixation while optimizing the solar panel's orientation.

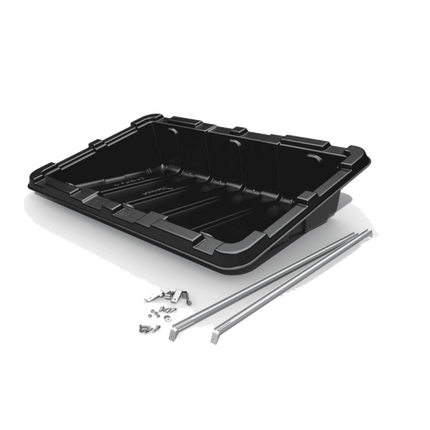

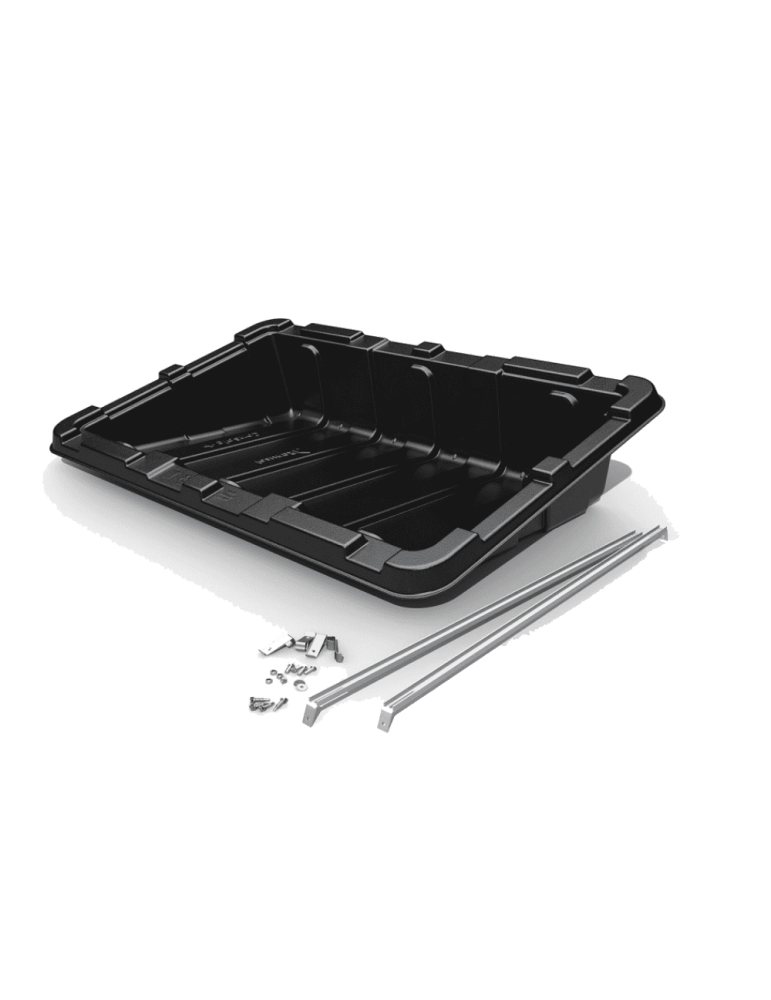

XL extensions by Renusol included in this offer
This offer directly includes the Renusol Console+ XL extension kit (supplier ref. R460001), allowing for the mounting of wider solar panels.

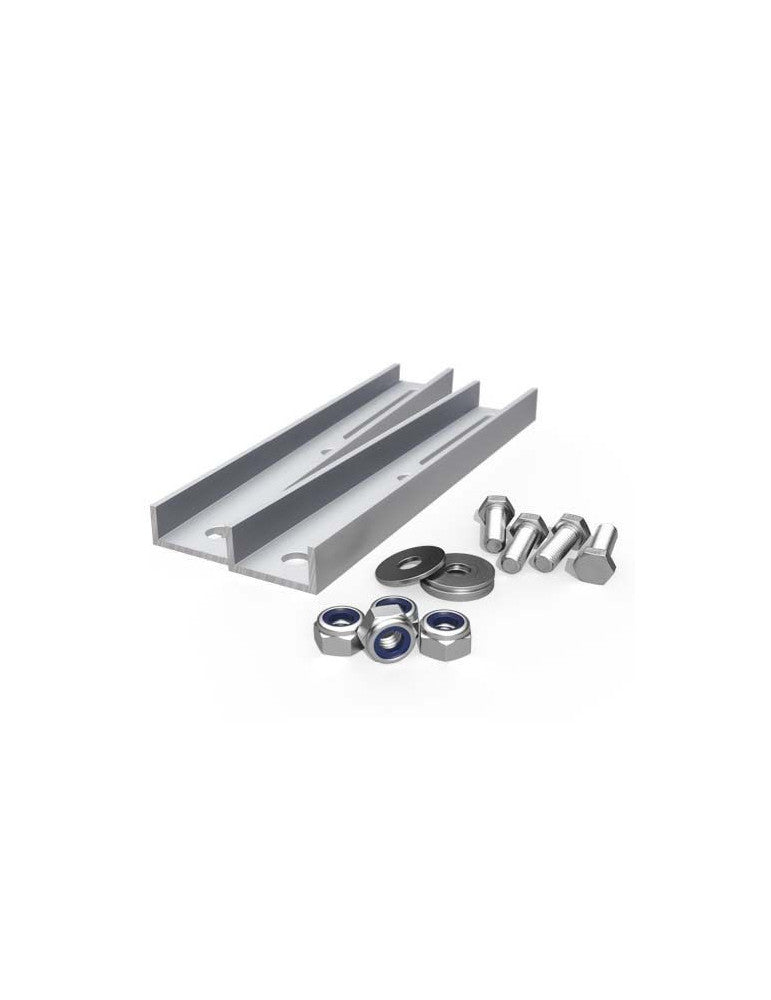

Included kit contents
- 2 XL extension rails (U-profiles 1035mm - Aluminum)
- 4 sets of screws / washers / nuts
XL kit features
-
Supplier reference: 460196
-
Dimensions: 175 × 25 × 12 mm
-
Rail length: 150 mm
-
Weight: 0.114 kg
-
Material: aluminum
-
Compatibility: Renusol Console+ (CS+)
Thanks to the provided XL extensions, the support is suitable for solar panels with a width greater than 1100 mm, without the need for additional purchases.
Main features of the support
-
Brand: Renusol
-
Model: Console+
-
Type: ballast tray for solar panel
-
Installation: ground, flat roof
-
Inclination: 15°
-
Ballasting: gravel, concrete blocks, equivalent materials
- Mounting without roof penetration
This Renusol ballast support with included XL extensions is particularly suitable for residential and professional photovoltaic installations looking for a reliable, easy-to-install solution that is compatible with large-sized solar panels.
Application: Flat roofs, landfills, open spaces, green areas (excluding exposure to hydrogen sulfide)
Technical specifications:
- Materials: HDPE, aluminum, and stainless steel
- Module inclination: 15°
- Maximum roof slope: 5°
- Minimum edge distance: 1.50m
- Module length: 1550 to 2400 mm

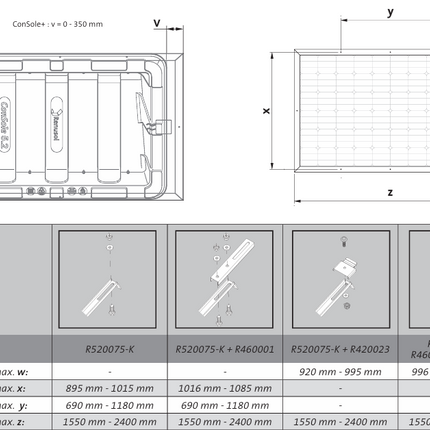

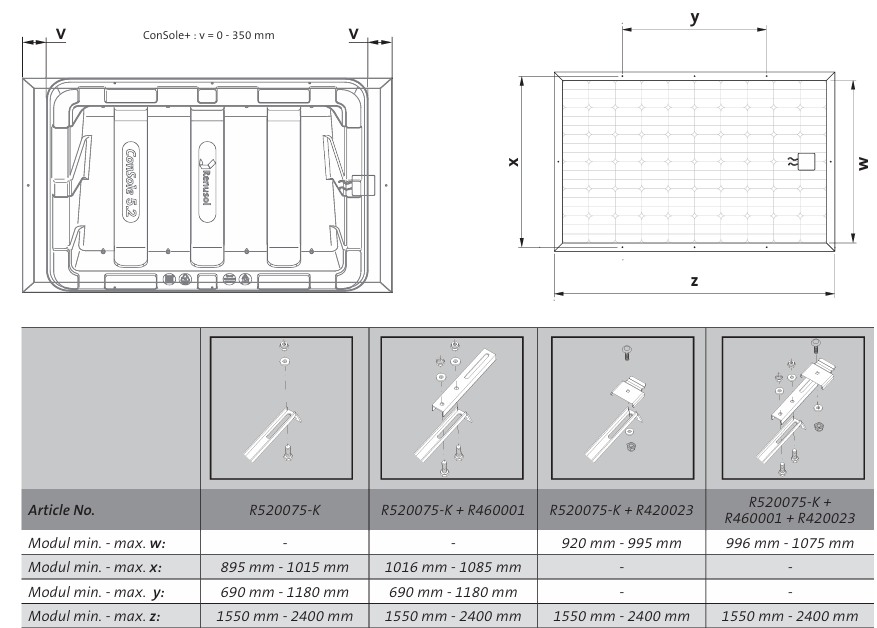

Compatible with framed modules having mounting holes with the following spacing:
- Long side: 690 to 1180 mm
- Short side: 895 to 1015 mm
Customs codes:
- Console: 39269097 - DE
- Screws: 76109090 - DE
- Alu. profile: 76042100 – RO
Item details
- Intrastat country of origin: Germany
- Intrastat product number (HS-Code): 39269097
- Manufacturer item designation: ConSole+ tub 520075-K
- Manufacturer: Renusol
- Color: black
Dimensions
- Weight without packaging (kg): 7.900
- Height without packaging (mm): 390.00
- Width without packaging (mm): 1100.00
- Length without packaging (mm): 1730.00
Packaging
- Width including packaging (cm): 110.00
- Weight including packaging (kg): 10.000
- Pallet dimensions LxWxH (mm): 1760x1200x1500
- Quantity per pallet: 80
- Height including packaging (cm): 39.00
- Length including packaging (cm): 173.00
Warranty
- Product warranty (years): 10
- Manufacturer warranty: Renusol
