Description

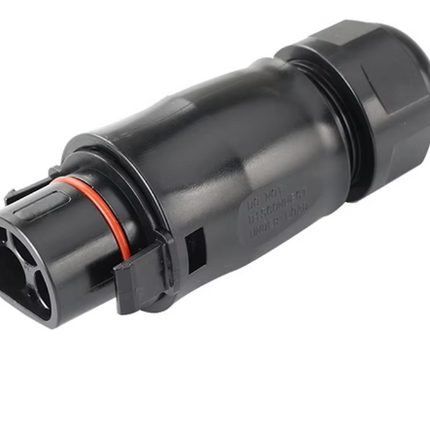

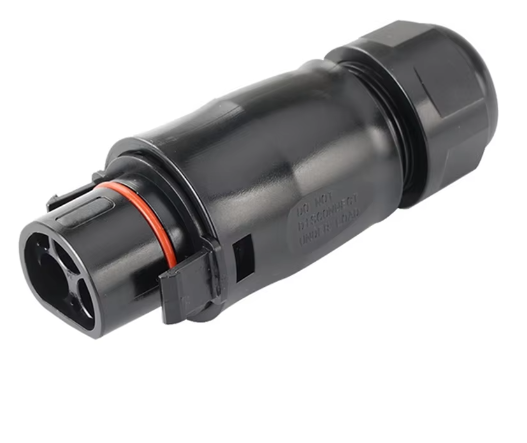

• Product: 4000V 40A PV solar connector for solar panels
• Model: LY01-Male
• Type: 3-pin AC photovoltaic connector
• Configuration:
  • LY01 wire end, 3 poles
  • Screw crimping
• Cable compatibility:
  • Outer diameter: 7.5-13 mm
  • Specifications: 2.5/4.0 mm² or 14/12 AWG, three-conductor wire
• Application :Designed for the DEYE SUN micro-inverter series:

• SUN-M60G4-EU-Q0
• SUN-M80G4-EU-Q0
• SUN-M100G4-EU-Q0
• SUN-M130G4-EU-Q0
• SUN-M160G4-EU-Q0
• SUN-M180G4-EU-Q0
• SUN-M200G4-EU-Q0
• SUN-M220G4-EU-Q0
• SUN-M180G4-EU-Q0-P
• SUN-M200G4-EU-Q0-P
• Material: PPO
• Feature: IP68 waterproof, 6 round tube terminals, hex screws
• Installation style: Wire end
• Cross-section: 2.5 to 4 mm²
• Ambient temperature: -45 °C to 80 °C
• Power frequency voltage: 4000V AC
• Protection class: IP68
• Number of cores: 3P
• Mounting type: Screw connection
• IP rating: IP68
• Rated current: 40A
• Rated voltage: 690V
• Wire outer diameter: 13 mm
• Color: Black
• Material: PPO
• Dimensions: 8 x 8 x 4 cm

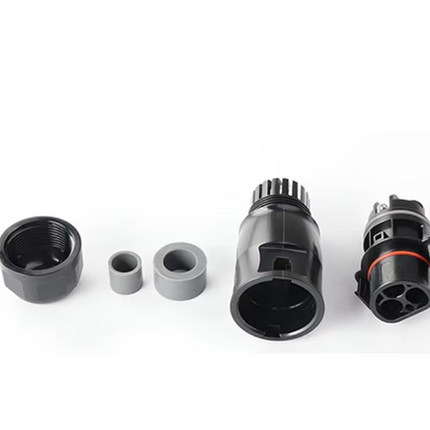

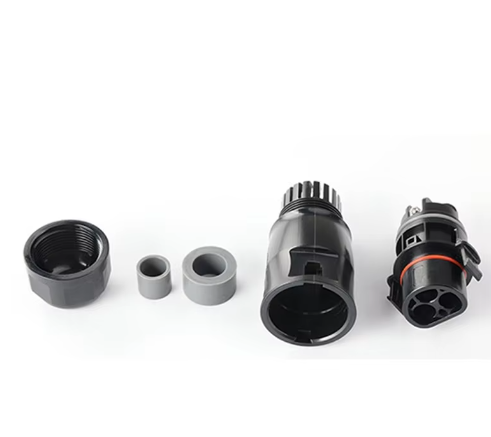

• Package contents:
  • 1 x LY01-Male connector
  • 3 x black power terminals
  • 3 x red power terminals
  • 1 x 6-angle inner wrench

Specifications

• Brand: Deye

Pros and cons

• Clean
• renewable energy
  High reliability
• long service life
  Low maintenance requirements
• Production varies with weather conditions
  Requires correct installation to avoid problems
