Description
Mechanical characteristics

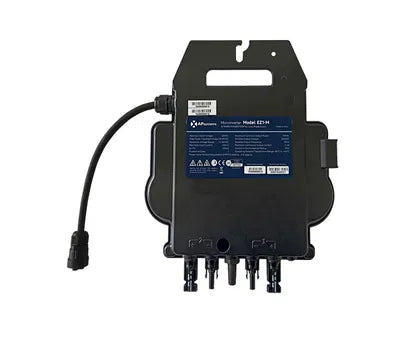

APsystems' EZ1 series is a range of dual micro-inverters with integrated WIFI and Bluetooth technologies, specially designed for easy-to-install photovoltaic kits for DIY installers.
Based on our 3rd generation technology, EZ1 series micro-inverters have 2 input channels with independent MPPT and high input current and output power to adapt to today's high-power modules.
Users can connect directly to the EZ1 series locally with their mobile phones via Bluetooth and get real-time data from their solar kits. In addition to direct connection, the EZ1 series can also connect to a router via Wi-Fi and send data to cloud servers for remote monitoring.
Thanks to a specific AC extension cable supplied by APsystems, the EZ1 series can be plugged into a power socket and produce energy directly, a truly simple and practical grid connection.
Item details
- Intrastat country of origin China
- Manufacturer APsystems
- Intrastat product number (HS-Code) 85044085
- Manufacturer designation of the article EZ1-M-EU (800W)
Dimensions
- Height without packaging (mm) 41.00
- Weight without packaging (kg) 2.700
- Length without packaging (mm) 263.00
- Width without packaging (mm) 218.00
Packaging
- Weight including packaging (kg) 3.000
Warranty
- Manufacturer's warranty APsystems
- Standard product warranty (years) 12
Technical data
| Min. MPP input voltage range (V) |
28.00 |
| DC connector type |
MC4 |
| Nominal AC power (kW) |
0.80 |
| Minimum input voltage (V) |
16 |
| IP protection class |
IP67 |
| Min. ambient temperature (°C) |
-40 |
| Topology |
transformer |
| Number of MPPT (pcs) |
2 |
| Max. number of string inputs |
2 |
| Protection class |
IP67 |
| Max. DC input voltage (V) |
60.00 |
| Max. input current per MPPT (A). |
20 |
| Display |
no screen |
| Max AC power (kVA) |
0.80 |
| Maximum DC generator power (kWp) |
0.73 |
| Max. total DC input current (A) |
40.00 |
| Max. MPP input voltage range (V) |
45.00 |
| Max. total short-circuit current (A) |
50.00 |
| Maximum efficiency (%) |
97.30 |
