Anysolars

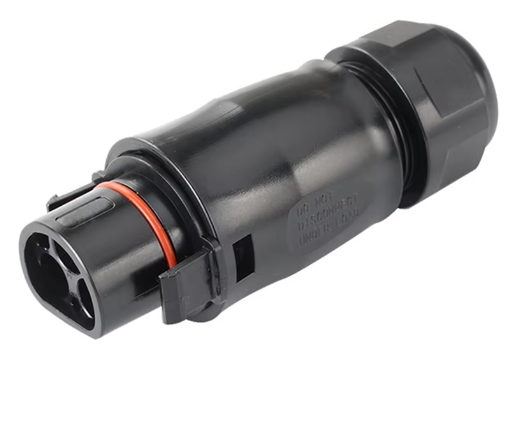

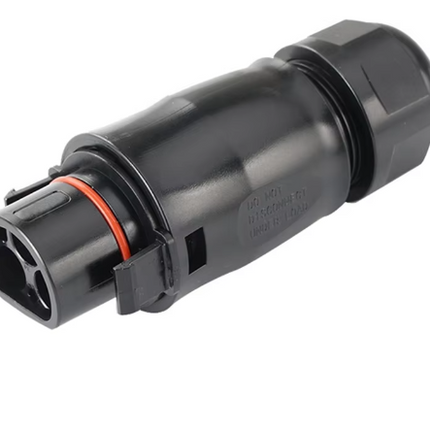

Male Deye connector

Male Deye connector

Regular price €7,20 EUR
Regular price Sale price €7,20 EUR
Sale Sold out
Taxes included.
  • Product : 4000V 40A PV solar connector for solar panels
  • Model : LY01-Male
  • Type : 3-pin AC photovoltaic connector
  • Configuration :
    • LY01 wire end, 3 poles
    • Screw crimping
  • Cable Compatibility :
    • Outer diameter: 7.5-13 mm
    • Specifications: 2.5/4.0 mm² or 14/12 AWG, three-conductor wire
  • Application : Grid-connected mini inverter
  • Installation Style : Wire End
  • Cross section : 2.5 to 4 mm²
  • Ambient temperature : -45°C to 80°C
  • Power frequency voltage : 4000V AC
  • Protection class : IP68
  • Number of cores : 3P
  • Mounting type : Screw connection
  • IP Rating : IP68
  • Rated current : 40A
  • Nominal voltage : 690V
  • Wire outer diameter : 13 mm
  • Color : Black
  • Material : PPO
  • Dimensions : 8 x 8 x 4 cm

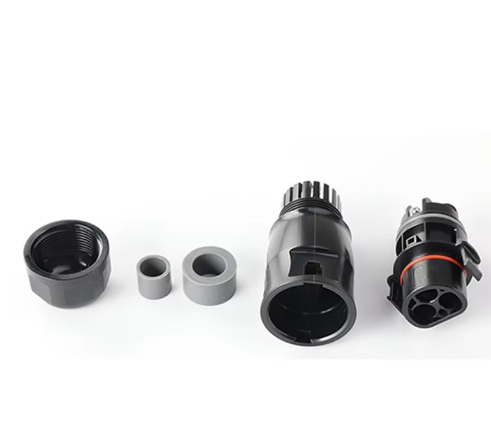

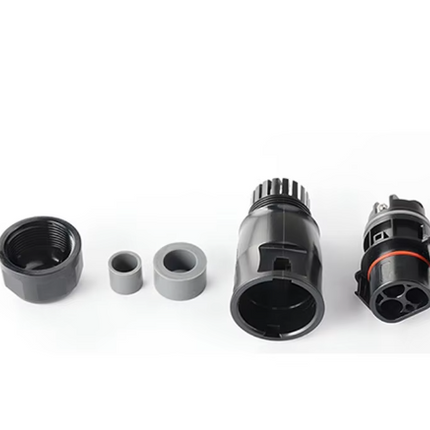

  • Package Contents :
    • 1 x LY01-Male connector
    • 3 x black power terminals
    • 3 x red power terminals
    • 1 x 6-angle inner key
