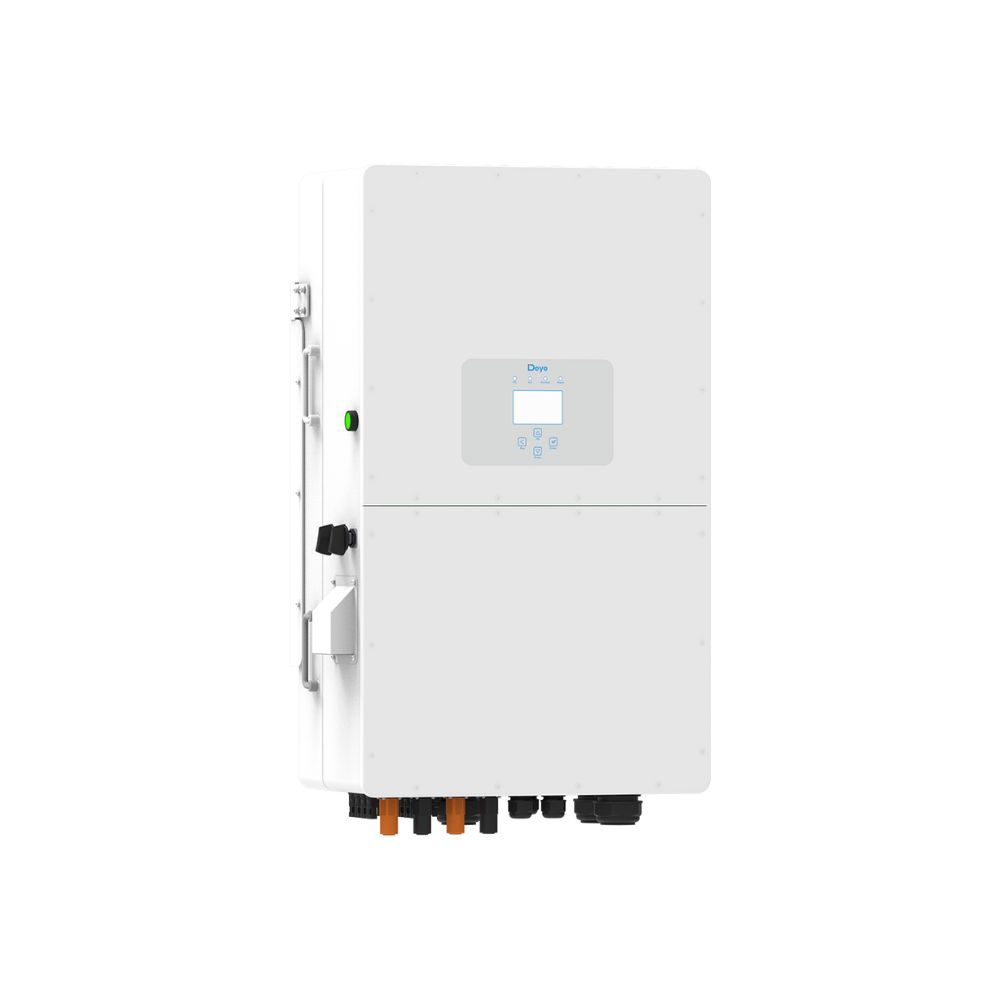

Deye SUN-30K-SG01HP3-EU High Voltage Three Phase Hybrid Inverter

The Deye three-phase hybrid inverter series is designed for robust performance and efficient energy management in residential and commercial environments. With a focus on high efficiency, seamless integration and advanced protection features, these inverters offer a versatile solution for modern energy needs.

Description

Models

• SUN-29.9K-SG01HP3-EU-BM3
• SUN-30K-SG01HP3-EU-BM3
• SUN-35K-SG01HP3-EU-BM3
• SUN-40K-SG01HP3-EU-BM4
• SUN-50K-SG01HP3-EU-BM4

Main features

• High charge/discharge current: Supports maximum charge and discharge current of 100A, ensuring flexibility in managing energy storage needs.
• Energy Storage Compatibility: Capable of storing energy from diesel generators, making it suitable for regions where power supply is unstable.
• Parallel Operation: Supports up to 10 units in parallel for both on-grid and off-grid scenarios, providing scalable energy solutions for larger installations.
• Multiple Battery Compatibility: Support multiple batteries in parallel, meeting higher energy storage demands.
• AC Coupling: Perfect for retrofitting existing solar systems, allowing seamless integration without major overhauls.
• Configurable Time Periods: Up to 6 time periods can be set for battery charging and discharging, allowing efficient energy usage tailored to specific needs.
• High Efficiency: Uses high voltage batteries, ensuring higher operational efficiency and more efficient energy storage.
• 100% Unbalanced Output: Each phase supports 100% unbalanced output, increasing power supply flexibility and reliability.

Electrical characteristics

The inverters are designed to handle a range of electrical inputs and outputs, suitable for various applications:

• Rated active AC input/output power:
  • SUN-29.9K: 29.9 kW
  • SOLEIL-30K: 30 kW
  • SOLEIL-35K: 35 kW
  • SUN-40K: 40 kW
  • SUN-50K: 50 kW
• Battery Inputs:
  • Type: Lithium-ion
  • Voltage range: 160-800V
  • Maximum charge/discharge current: 100A (divided into two 50A each)
  • Number of battery inputs: 2
• PV String Input Data:
  • Maximum photovoltaic input power:
    • SUN-29.9K: 38,870 W
    • SOLEIL-30K: 39,000 W
    • SUN-35K: 45,500 W
    • SUN-40K: 52,000 W
    • SUN-50K: 65,000 W
  • Maximum PV input voltage: 1000V
  • Starting voltage: 180V
  • MPPT voltage range: 150-850V
  • Number of MPP trackers: 3 or 4, depending on the model

Operational characteristics

Deye inverters offer high efficiency ratings and advanced protection features:

• Efficiency ratings:
  • Maximum efficiency: 97.6%
  • European efficiency: 97%
  • MPPT efficiency: >99%
• Complete protection:
  • Built-in DC reverse polarity connection protection
  • AC output overcurrent/overvoltage/short circuit protection
  • Earth fault current monitoring
  • Surge protection (Type II for DC and AC)
  • Island protection and thermal protection

Environmental and safety compliance

• Operating temperature range: -40 to +60°C (with derating above 45°C)
• Ingress Protection Rating: IP65
• Noise level: ≤65dB
• Authorized altitude: Up to 2000 meters
• Cooling Mechanism: Intelligent Air Cooling

Physical characteristics

• Dimensions: 527 x 894 x 294 mm (excluding connectors and brackets)
• Weight: 80 kg

Communication and monitoring

• Monitoring modes: GPRS, WIFI, Bluetooth, 4G, LAN (optional)
• Communication interfaces: RS485, RS232, CAN

Compliance and warranty

• Network regulations : Complies with IEC 61727, IEC 62116, IEC 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105.
• Safety standards : Complies with IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1/2.
• Warranty: Standard 5 years, extendable to 10 years depending on the installation site.
