Description

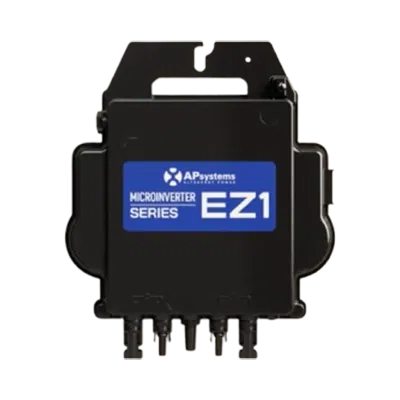

Mechanical Characteristics APsystems EZ1-H (960VA) Micro-inverter
- This APsystems EZ1-H (960VA) Micro-inverter is mainly dedicated to DIY kits. (Max 4 PV modules per installation, i.e., max 2 EZ1 micro-inverters.)
- Integrated Wi-Fi and Bluetooth
- Allows connection of up to two PV modules with its 2 independent input channels (MPPT).
- High input current to adapt to high-power panels (2x 20A).
- Maximum reliability, IP67, integrated VDE relays (EN 50549-1), 960VA output power.
Users can connect directly to the EZ1 series locally with their mobile phones via Bluetooth and get real-time data.
In addition to direct connection, the EZ1 series can also connect to a router via Wi-Fi and send data to cloud servers for remote monitoring.
Item Details
- Manufacturer item designation EZ1-H
- Intrastat country of origin China
- Manufacturer APsystems
- Instrastat product number (HS-Code) 85044085
Dimensions
- Length without packaging (mm) 263.00
- Height without packaging (mm) 37.00
- Width without packaging (mm) 218.00
- Weight without packaging (kg) 3.000
Packaging
- Weight incl. packaging (kg) 3.000
- Quantity per pallet 180
- Packaging material Cardboard
Warranty
- Manufacturer warranty APsystems
- Standard product warranty (years) 12
- Product warranty (years) 12
Technical Data
| Topology |
transformerless |
| Min. MPP input voltage range (V) |
28.00 |
| Max. DC generator power (kWp) |
0.76 |
| Min. ambient temperature (°C) |
-40 |
| Interface 1 |
W-Lan |
| Max. output current (A) |
4.20 |
| Interface 2 |
Bluetooth |
| Number of MPPTs (pcs) |
2 |
| Max. efficiency (%) |
96.70 |
| Max. number of string inputs |
2 |
| Protection class |
IP67 |
| Max. DC input voltage (V) |
60.00 |
| Max. input current per MPPT (A). |
20 |
| Rated AC power (kW) |
0.96 |
| Off-grid use |
no |
| Minimum input voltage (V) |
26 |
| DC connector type |
MC4 compatible |
| Max. MPP input voltage range (V) |
45.00 |
| Max. AC power (kVA) |
0.96 |
| Max. total short-circuit current (A) |
50.00 |
MC4 compatible
